User manual Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO

Operating instructions and pdf manual for use - Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO User manual, User manual Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO, Universal, Audio, Apollo, 8, DUO, Thunderbolt,


User manual for Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO
  • Manufacturer: Universal Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - DSP Accelerators
  • Safety instructions
  • Startup and operation of the dsp accelerators
  • Tips for setting up your Universal Audio
  • Settings and expert assistance
  • Contact Universal Audio service
  • Troubleshooting
  • Warranty information

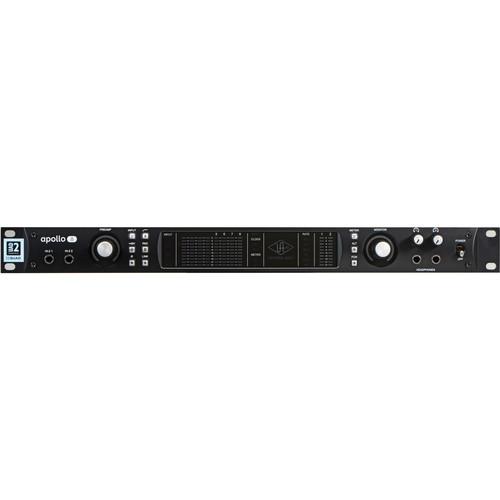

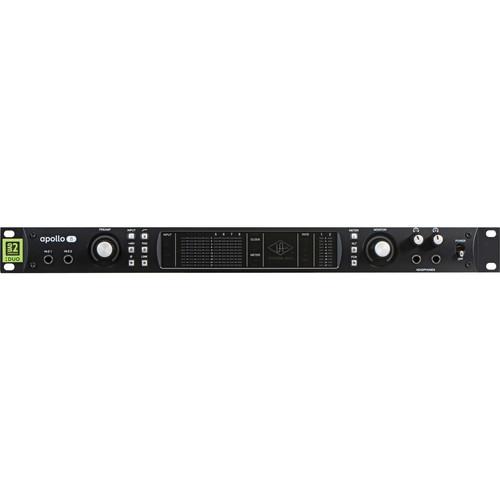

Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO
Click to enlarge image

We recommend checking out our discussion threads on the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO, which address similar problems with connecting and setting up DSP Accelerators Universal Audio.



User manual for the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO

The user manual for the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - DSP Accelerators.

The Apollo 8 DUO from Universal Audio is an 18 x 24 Thunderbolt-ready computer audio interface that improves upon the original Apollo with better total harmonic distortion, dynamic range, and signal-to-noise specifications. Delivering the sound, feel and flow of analog recording, the interface combines high-resolution analog design with on-board UAD Processing, allowing music producers and performers to track audio through a range of classic UAD analog emulation plug-ins in real-time.

Designed to perform a central role in a modern Mac-based studio, the unit delivers 24-bit/192 kHz resolution, which ultimately translates into high-resolution analog audio. The interface features four premium microphone preamps with Unison integration for UAD preamp and pedal plug-ins, which allows true-to-life performance including impedance matching, gain staging, and component-level circuit behaviors. Each mic pre features a switchable low cut filter, 48V phantom power, pad, polarity inversion, and stereo linking.

While the converters are open and transparent, the unit can quickly deliver a wide range of classic analog tones and color via its built-in UAD Processing. The on-board DUO Core processing provides up to a sub-2 millisecond latency that allows for quickly monitoring, auditioning, and "printing" audio using classic analog emulations from Ampex, Lexicon, Manley, Neve, Roland, SSL, Studer, and more.

Apollo's Core Audio drivers ensure compatibility with all major DAWs, including Pro Tools, Logic Pro, Cubase, Live, and more. The included Console 2.0 application provides control and recall of all interface and UAD plug-in settings including channel strip presets, drag & drop functionality, and dynamically resizable windows.

The Apollo 8 offers a comprehensive monitor solution with dedicated front panel controls for Alt Speakers, Dim, and Mono functions, as well as input and output metering capabilities. A total of four Apollos and six total UAD-2 devices can be combined via the included Apollo Expanded software, allowing Thunderbolt users the ability to expand their I/O and DSP. The Apollo 8 ships with a power supply, IEC power cord, and four rack-mount screws.
If you own a Universal Audio dsp accelerators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO:
Specifications
Converters 24-bit
Sample Rates 44.1, 48, 88.2, 96, 176.4 and 192 kHz
Analog Input Microphone/Line: 4 x Combo XLR / 1/4"/6.35 mm
2 x 1/4" TS phone Hi-Z
4 x 1/4" TRS phone Line
Analog Output 8 x 1/4" TRS phone Line
2 x 1/4" TRS phone Monitor
2 x 1/4" TRS phone Headphone
Digital Input 1 x RCA S/PDIF coaxial (AES/EBU software selectable)
2 x TOSLink ADAT optical (S/MUX support)
Digital Output 1 x RCA S/PDIF coaxial (AES/EBU software selectable)
2 x TOSLink ADAT optical (S/MUX support)
Other Connectors 2 x BNC Word-Clock I/O
2 x Thunderbolt
MIDI In/Out No
Wordclock I/O Connector Type: BNC
Lock Range: ±0.5% of any supported sample rate
Word Clock Input Termination: 75 Ohms, switchable
Synchronization Sources: Internal, word clock, S/PDIF, ADAT
Headphone Output Dual Independent: 1/4" TRS
Frequency Response 20 Hz to 20 kHz, ±0.1 dB
Dynamic Range Microphone: 120 dB, A-weighted
Hi-Z Inputs: 118 dB, A-weighted
Line Inputs: 120 dB, A-weighted
Line Outputs: 121 dB, A-weighted
Monitor Out: 121 dB, A-weighted
Headphone: 118 dB, A-weighted
Signal to Noise Ratio Microphone: 120 dB, A-weighted
Hi-Z Inputs: 118 dB, A-weighted
Line Inputs: 120 dB, A-weighted
Line Outputs: 121 dB, A-weighted
Monitor Out: 121 dB, A-weighted
Headphone: 118 dB, A-weighted
THD + N Microphone: -110 dBFS
Hi-Z Inputs: -101.5 dBFS
Line Inputs: -110 dBFS
Line Outputs: -110 dBFS
Monitor Out: -110 dBFS
Headphone: -101 dB
Common Mode Rejection Microphone: 73 dB (10' cable)
Line Inputs: 60 dB (10' cable)
Input Impedance Default Microphone Input Impedance; 5.4 kOhms (variable via Unison plug-ins)
Hi-Z Input Impedance: 1 MOhms (variable via Unison plug-ins)
Line Input Impedance: 10 kOhms
Output Impedance Line Output Impedance: 100 ohms
Monitor Output Impedance: 100 ohms
Gain Range Microphone: +10 to +65 dB
Hi-Z: +10 to +65 dB
Line Input (1-4): +10 to +65 dB (Line Input Gain = ON)
Line Input (5-8) Gain (selectable per input): +4 or -10 dBV
Input Pad Pad Attenuation: 20 dB (switchable per input)
Maximum Input/Output Level Microphone Input Level: +25 dBu (minimum gain, pad engaged)
Hi-Z Input Level: +12 dBu
Line Input Level (1-4): +20.2 dBu
Line Input Level (5-8) (+4 dBu setting) : +20.2 dBu
Line Input Level (5-8) (-10 dBV setting): +6.2 dBV (unbalanced)
Line Output Level: +20.2 dBu
Monitor Output Level: +20.2 dBu
Headphone Output Power: 160 mW into 300 ohm load
Stereo Level Balance Line Outputs (1-8): ±0.05 dB
Monitor Outputs: ±0.01 dB
Power Requirements Power Supplies: External AC to DC power supply, level V compliant
AC Input Connector Type: IEC male
AC Requirements: 100 to 240 VAC, 50/60 Hz
DC Connector Type: XLR 4-Pin locking male (Neutrik P/N NC4MDM3-H)
DC Requirements: 12 VDC, ±5%
Maximum Power Consumption: 50 W
System Requirements Thunderbolt Systems (UAD Powered Plug-Ins version 8)

Apple Mac computer with available Thunderbolt or Thunderbolt 2 port
Mac OS X 10.8.5 Mountain Lion, 10.9.x Mavericks, or 10.10.x Yosemite
4 GB available disk space
Internet connection to download software and authorize UAD plug-ins
Compatible VST, Audio Units, RTAS, or AAX 64 plug-in host DAW software
Thunderbolt cable (sold separately)
Specialties Analog Round Trip Latency: 1.1 ms @ 96 kHz (including 4 serial UAD-2 plug-ins via Console application)
S/MUX assignment allows for 8-channels @ 88.2/96 kHz and 4-channels @ 176.4/192 kHz
32/64-bit device drivers
Dimensions (W × H × D) 19 x 12.1 x 1.75" / 483 x 307 x 45 mm
Weight 9.1 lb / 4.1 kg
Packaging Info
Package Weight 17.2 lb
Box Dimensions (LxWxH) 24.0 x 17.0 x 8.0"
The user manual for the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO can be downloaded in .pdf format if it did not come with your new dsp accelerators, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Universal Audio users keep a unique electronic library for Universal Audio dsp acceleratorss, where you can use our link to download the user manual for the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO.

The user manual lists all of the functions of the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO, all the basic and advanced features and tells you how to use the dsp accelerators. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Universal Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Universal Audio Apollo 8 DUO - Thunderbolt 2 Audio APOLLO 8 DUO. User manuals are also available on the Universal Audio website under Pro Audio - Computer Audio - DSP Accelerators.
