User manual UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120

Operating instructions and pdf manual for use - UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120 User manual, User manual UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120, UTP, Balun, VBDP24AC-8-120, 8-Channel, Video,


User manual for UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120

UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120
  • Manufacturer: UTP Balun
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Signal Extenders
  • Safety instructions
  • Startup and operation of the signal extenders
  • Tips for setting up your UTP Balun
  • Settings and expert assistance
  • Contact UTP Balun service
  • Troubleshooting
  • Warranty information
  • Price: 350 USD
We recommend checking out our discussion threads on the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120, which address similar problems with connecting and setting up Signal Extenders UTP Balun.



User manual for the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120

The user manual for the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Signal Extenders.

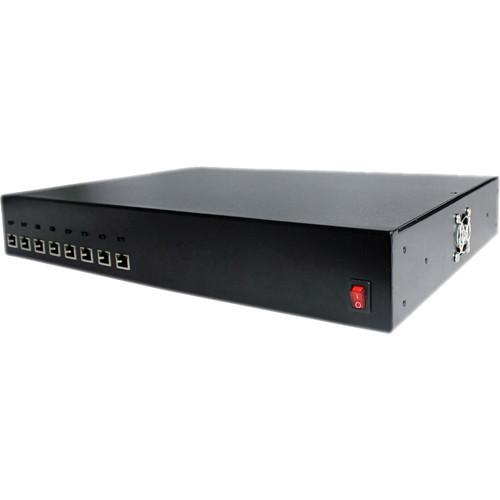

The black VBDP24AC-8-120 8-Channel Video, Audio, Power, Data Transceiver Hub from UTP Balun allows the transmission of CCTV video, audio, AC power, and data over a single network cable at the same time. This device uses a single CAT5, 5e, or 6 UTP cable as a transmission medium and works together with the VBDP-C Camera Side Transceiver Device (sold separately). This transceiver hub is capable of transmitting 8 channels of PAL, NTSC, SECAM color or monochrome video signals, mono monitor audio, RS-485, or RS-232 signals up to the distance of 1,000’ (300m) and provides 12 or 24VAC power to each camera.
If you own a UTP Balun signal extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120:
Function
Number of Channels 8
Distance Up to 300' (100 m) at 24 VAC output
Up to 1,000' (300 m) at 12 VDC output
Power
Power Input 120 VAC
Maximum Power Consumption 300 W
Output Power Type: 24 / 28 VAC
Consumption Maximum Transmission: 28 VAC / 1 A
Video
Connector Transmission and Property:
Female BNC port (dual output)
Compatible System: PAL, NTSC, SECAM
Signal transmission Width: 6 MHz
Anti-Interference >60 dB
Video Balun Port: RF45
Audio
Connection Transmission and Property:
Female BNC port
Bandwidth 20 Hz to 20 kHz
Isolation Compression: >500 V
Data
Port Signal Transmission and Property:
DB9 / Screw Fix Port
Signal Type RS-232 / RS-485
Transmission Rate <500 kb>
Environmental
Connector Electromagnetic Compatibility:
Protection: 2 KV Per: IEC61000-4-5
ESD 1a contact discharge level 3
1b Air Discharge level 3
per IEC61000-4-2
Operating Environment
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 158°F (-20 to 70°C)
Humidity 0 to 95% (non-condensation)
MTBF >20,000 hours
Physical Specifications
Shell Iron
Dimensions (LxWxH) 16.93 x 11.81 x 2.63" (430.00 x 300.00 x 66.80 mm)
Weight 13.45 lb (6.10 kg)
The user manual for the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120 can be downloaded in .pdf format if it did not come with your new signal extenders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other UTP Balun users keep a unique electronic library for UTP Balun signal extenderss, where you can use our link to download the user manual for the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120.

The user manual lists all of the functions of the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120, all the basic and advanced features and tells you how to use the signal extenders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from UTP Balun service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the UTP Balun VBDP24AC-8-120 8-Channel Video, Audio, VBDP24AC-8-120. User manuals are also available on the UTP Balun website under Surveillance - Surveillance Video - Video Transmission - Signal Extenders.
