User manual Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T

Operating instructions and pdf manual for use - Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T User manual, User manual Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T, Vantec, EZ, Swap, M3500, Series, 3.5, Mobile, Rack, MRK-M3504T


User manual for Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T

Vantec EZ Swap M3500 Series 3.5
  • Manufacturer: Vantec
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Hard Drive Trays
  • Safety instructions
  • Startup and operation of the internal hard drive trays
  • Tips for setting up your Vantec
  • Settings and expert assistance
  • Contact Vantec service
  • Troubleshooting
  • Warranty information
  • Price: 130 USD

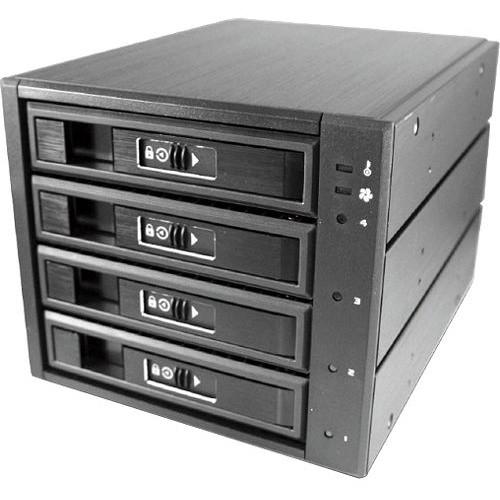

Vantec EZ Swap M3500 Series 3.5 Vantec EZ Swap M3500 Series 3.5
Click to enlarge image

We recommend checking out our discussion threads on the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T, which address similar problems with connecting and setting up Internal Hard Drive Trays Vantec.



User manual for the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T

The user manual for the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Hard Drive Trays.

The 4-bay EZ Swap M3500 Series 3.5" Mobile Rack from Vantec is suited for rackmount or desktop/tower chassis. The aluminum frame design offers strength and heat dissipation properties, but without the weight. Its sturdy frame also offers the versatility to add SATA-6Gps or SAS-6Gps HDDs/SSDs. Dampener springs reduce vibration to help extend the life of the drives and quick guide rails for smooth hot swapping of drives. The informative LED provides a clear indication of the drives' status, fan, and temperature of the storage. The quiet fan purges out hot air and keeps all the drives in a cool state.
If you own a Vantec internal hard drive trays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T:
Drive Height 3.5" maximum height: 1.0" / 25.4 mm supported
Hard Drive Hard drive carrier tray: 4
Pass thru drive speed: SATA I,II,III SAS I,II
HDD capacity per carrier tray: 4 TB
Total HDD capacity: 16
Fan Integrated: 3.1 x 3.1 x 1" (80.0 x 80.0 x 20 mm)
Connector 2 x SATA/SAS power input
Material Aluminum
Drive Bay 3x 5.25" required for installation
Interface Internal/External: SATA / SAS
Power: SATA power connection
System Requirements Windows® OS / Mac OSX / Linux OS
4 SATA / SAS data and 2 SATA power interfaces (sold separately)
3x 5.25" external drive bay
Dimensions (L x W x H) 8.31 x 5.73 x 4.94" (211.2 x 145.6 x 125.5 mm)
Weight 4.39 lb (1.99 kg)
The user manual for the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T can be downloaded in .pdf format if it did not come with your new internal hard drive trays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vantec users keep a unique electronic library for Vantec internal hard drive trayss, where you can use our link to download the user manual for the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T.

The user manual lists all of the functions of the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T, all the basic and advanced features and tells you how to use the internal hard drive trays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vantec service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vantec EZ Swap M3500 Series 3.5" Mobile Rack MRK-M3504T. User manuals are also available on the Vantec website under Computers & Solutions - Drives & Storage - Internal Hard Drive Trays.
