User manual VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120

Operating instructions and pdf manual for use - VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120 User manual, User manual VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120, VideoComm, Technologies, IPC-2MPSR120, 2MP, H.264, IPC-2


User manual for VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120

VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120
  • Manufacturer: VideoComm Technologies
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your VideoComm Technologies
  • Settings and expert assistance
  • Contact VideoComm Technologies service
  • Troubleshooting
  • Warranty information
  • Price: 286 USD
We recommend checking out our discussion threads on the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120, which address similar problems with connecting and setting up Wired IP Cameras VideoComm Technologies.



User manual for the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120

The user manual for the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

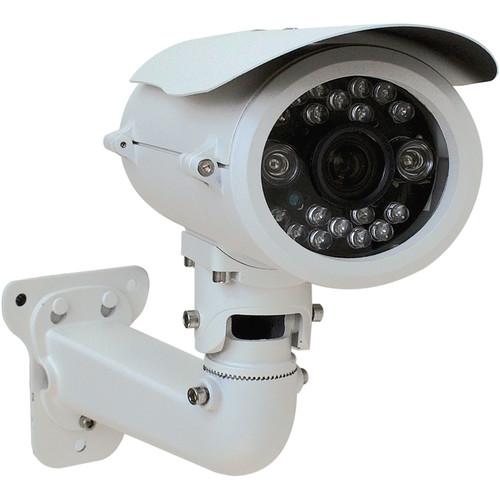

The IPC-2MPSR120 All-Weather IR Network Bullet Camera from VideoComm Technologies captures high-definition 2MP videos and images. It features a 1/2.8" Sony Exmor IMX222 CMOS sensor, automatic electronic shutter, auto gain control, and 32-bit dual core DSP. This ONVIF-compliant camera features a 6 to 22mm varifocal lens with remote motorized zoom and focus function and quad high-intensity IR LEDs that provide night vision up to 120'. It captures videos in H.264 compression format and comes with camera management software. The 32-bit dual-core DSP features DWDR, backlight compensation (BLC), and DNR. Being PoE-ready and ONVIF-compliant, this camera can be installed and integrated easily into existing surveillance systems. You can add a video network bridge (not included) to make this camera wireless. The IP66 rated camera is suitable for day and night surveillance in parking lots, shipping yards, malls, storage facilities, school campuses, warehouses, and construction sites.
If you own a VideoComm Technologies wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120:
Camera
Sensor 1/2.8" Sony Exmor IMX222 CMOS sensor
Processor 32-bit dual-core DSP
Video Format NTSC/PAL
Resolution Main Stream: 2 MP @ 30 fps (1920 x 1080)
Sub Stream: 4CIF NTSC (704 x 480)
Lens 6 to 22 mm varifocal, remote motorized zoom and focus
Viewing Angle 32 to 106°
S/N Ratio >45 dB + Dynamic Noise Reduction (DNR)
White Balance Sync: Automatic
Electronic Shutter 1/50 to 1/100,000 sec
IR LED Quad high-intensity
IR Range Up to 120' (37 m)
Minimum Illumination Color: 0.01 lux
B/W: 0.001 lux
IR Cut Filter Automatic/Mechanical
Wide Dynamic Range Digital Wide Dynamic Range (DWDR)
Video Compression H.264
Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, and NTP
Data Rate 0.1 to 8 Mb/s
Communication Port RJ45 @ 10/100 Mb/s Base-T Ethernet LAN and 48 VDC PoE IEEE 802.3af
On-Screen Display Adjust exposure, white balance, color, sharpness, 4-zone motion detection on/off, 4-zone privacy masking, and dead pixel compensation
Standards ONVIF Open IP
Software Multi-camera 64-channel CMS (included)
Power
Power Supply Available separately, model number PS-4850PoE
Power Connector RJ45 PoE, 2.1 mm barrel
Power Consumption 1 A @ 12 VDC (IR on)
PoE Power Consumption 12 W @ 48 VDC (IR on)
Environmental & Physical Specifications
Operating Temperature -40 to 170°F (-40 to 77°C)
Construction Rugged all-weather IP66 rated cast aluminum design
Camera Dimensions 7.0 x 4.5 x 4.2" (17.8 x 11.4 x 10.7 cm)
Camera Weight 4.3 lb (1.9 kg)
The user manual for the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other VideoComm Technologies users keep a unique electronic library for VideoComm Technologies wired ip camerass, where you can use our link to download the user manual for the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120.

The user manual lists all of the functions of the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from VideoComm Technologies service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the VideoComm Technologies IPC-2MPSR120 2MP H.264 IPC-2MPSR120. User manuals are also available on the VideoComm Technologies website under Surveillance - Surveillance Video - Wired IP Cameras.
