User manual VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90

Operating instructions and pdf manual for use - VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90 User manual, User manual VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90, VideoComm, Technologies, PRO, Series, 5.8, GHz, 700,


User manual for VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90

VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90
  • Manufacturer: VideoComm Technologies
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wireless Cameras
  • Safety instructions
  • Startup and operation of the wireless cameras
  • Tips for setting up your VideoComm Technologies
  • Settings and expert assistance
  • Contact VideoComm Technologies service
  • Troubleshooting
  • Warranty information
  • Price: 383 USD

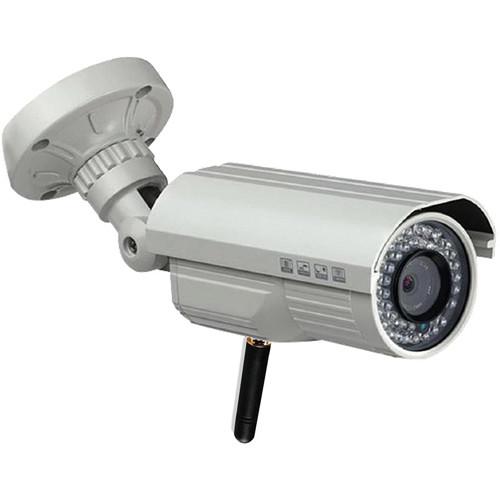

VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90 VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90 VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90
Click to enlarge image

We recommend checking out our discussion threads on the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90, which address similar problems with connecting and setting up Wireless Cameras VideoComm Technologies.



User manual for the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90

The user manual for the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wireless Cameras.

The PRO Series ZX-700SR90 5.8 GHz 700 TVL Day/Night All-Weather Wireless Bullet Camera from VideoComm Technologies features a 1/3" Sony 960H CCD sensor and a 2.8-12mm varifocal lens. The camera is capable of transmitting 5.8 GHz real-time video from 300' to 4 miles, depending on the optional receiver. It features 90 ft of night vision thanks to the built-in IR LEDs. ZX-700SR90 is placed in a rugged all weather IP-66 rated cast aluminum housing. In addition, the housing also features a sun-shield hood and an anti-glare lens.
If you own a VideoComm Technologies wireless cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90:
Operating Frequency 5.725 to 5.875 GHz; 8 user selectable channels
Radiated Power 50 mv/m @ 10' (3 m)
Range & Elevation (Line of Sight) From 300' (91 km) up to 4 miles (6 km); depending on the optional receiver & antenna (available separately)
Antenna Type 3 dB omnidirectional rubber duck
Antenna Connector SMA (female)
Video Format NTSC
Camera Type 1/3 Sony 960H CCD sensor
Resolution 700 lines
Lens Type 2.8-12
IR Range 90' (27 m)
Minimum Illumination 0.001 lux @ f/1.2
IR Cut Filter Automatic / Mechanical
WDR Control Zone configurable backlight compensation
SNR >50 dB
White Balance Automatic
Video Connector BNC (female)
Video Impedance 75 ohms @ 1 Vpp
OSD Adjust exposure, white balance, color, sharpness, motion detection on/off, privacy masking, monitor mode & dead pixel compensation
Current Consumption 260 mA @ 12 VDC IR off / 600 mA @ 12 VDC IR on
Power Connector 2.1 mm barrel jack
Construction Rugged all-weather IP66 rated cast aluminum design
Mounting Brackets Integrated 3-axis cast aluminum wall-mount
Operating Temperature -40 to 170°F (-40 to 77°C)
Approvals FCC / IC
Dimensions 3.3 x 5.5" (8.4 x 13.9 cm)
Weight 2.2 lb (0.99 kg)
Packaging Info
Package Weight 3.65 lb
Box Dimensions (LxWxH) 11.0 x 6.3 x 5.3"
The user manual for the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90 can be downloaded in .pdf format if it did not come with your new wireless cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other VideoComm Technologies users keep a unique electronic library for VideoComm Technologies wireless camerass, where you can use our link to download the user manual for the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90.

The user manual lists all of the functions of the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90, all the basic and advanced features and tells you how to use the wireless cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from VideoComm Technologies service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the VideoComm Technologies PRO Series 5.8 GHz 700 TVL ZX-700SR90. User manuals are also available on the VideoComm Technologies website under Surveillance - Surveillance Video - Wireless Cameras.
