User manual ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED

Operating instructions and pdf manual for use - ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED User manual, User manual ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED, ViewSonic, 22, Widescreen, Full, HD, 1080p, LED, VX2270SMH-L


User manual for ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
ViewSonic 22
  • Manufacturer: ViewSonic
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your ViewSonic
  • Settings and expert assistance
  • Contact ViewSonic service
  • Troubleshooting
  • Warranty information
  • Price: 140 USD
We recommend checking out our discussion threads on the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED, which address similar problems with connecting and setting up Computer Monitors ViewSonic.



User manual for the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED

The user manual for the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

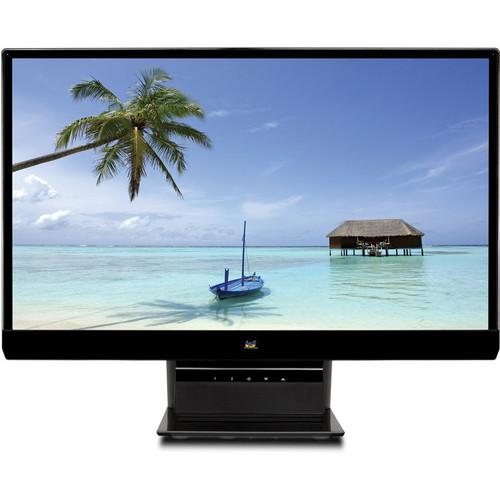

ViewSonic's 22" Widescreen Full HD 1080p LED Monitor is a frameless LED-backlit display with 1920 x 1080 progressive HD resolution, progressive being the better of the two HD types. The monitor is thin and has a stand featuring five basic control buttons. The display is glossy and is equipped with SuperClear IPS technology, which produces more accurate colors, contrast and a wider viewing angle.

Two built-in speakers, by way of SRS Premium Sound, deliver as much a surround sound experience as two speakers can. The monitor is equipped with HDMI, VGA, and DVI connections and comes to you with an HDMI cable and a VGA cable included.
If you own a ViewSonic computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ViewSonic 22Download user manual for ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED
(PDF file, 1.97 MB)
Additional parameters of the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED:
Specifications
    Display 21.5" viewable wide color TFT active matrix IPS LED (54.6 cm)
    18.7 x 10.5 x 21.5" (47.5 x 26.7 x 54.6 cm)
    Resolution 1920 x 1080
    Contrast Ratio 1000:1; 30M:1 Dynamic
    Viewing Angles 178º horizontal, 178º vertical
    Response Time 7ms (GTG)
    Light Source WLED with minimum of 30,000 hours of life
    Brightness 250 cd/m2
    Panel Surface Anti-glare, hard-coating (3H)
    Video Input 1x HDMI
    1x VGA 15-pin mini D-sub
    1x DVI-D with HDCP

    RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
    DVI-D (TMDS, 100 ohms)

    Frequency:
    Fh: 24 - 83 kHz, Fv: 50 - 76 Hz

    Sync:
    Separate sync
    Compatibility PC: from VGA up to 1920x1080 non-interlaced
    Mac: up to 1920 x 1080
    Audio Two built-in speakers
    Power Voltage: AC 100-240 V (universal), 50 / 60 Hz
    Consumption: 26 W / 22 W in Optimize mode / 19 w in Conserve mode
    Power Save mode: ≤ 1W
    Energy Star compliant, EPEAT Silver
    Controls Basic:
    Power, 1, Up, Down, 2

    On-screen displays:
    Auto Image Adjust
    Contrast/Brightness
    Input Select (D-sub, DVI-D, HDMI)
    Color Adjust (sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B])
    Audio Adjust (Volume, Mute, Audio Input)
    Information
    Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Overscan, ECO-mode)
    Setup Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Sleep, Power Indicator)
    Memory Recall
    Tilt Forward 5º, back 20º
    Regulations CE,CB, BSMI, PSB, SASO, C-tick, UL/cUL, FCC-B (including ICES003), TUV-S, NOM, GOST-R/Hygienic, UkrSEPRO, Erp, CCC, China Energy, ENERGY STAR 5.2, EPEAT Silver, WEEE, RoHS, SVHC list
    Operating Conditions Temperature: 32 to 104º F (0 to 40º C)
    Humidity: 20-90% (non-condensing)
    Dimensions With stand: 19.7 x 15.4 x 7.1" (50 x 39 x 18 cm)
    Weight With stand: 7.9 lb (3.6 kg)
    Packaging Info
    Package Weight 12.0 lb
    Box Dimensions (LxWxH) 22.0 x 18.0 x 7.0"
    Product Demo
    The user manual for the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic computer monitorss, where you can use our link to download the user manual for the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED.

    The user manual lists all of the functions of the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic 22" Widescreen Full HD 1080p LED VX2270SMH-LED. User manuals are also available on the ViewSonic website under Computers & Solutions - Monitors & Displays - Computer Monitors.
