User manual ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L

Operating instructions and pdf manual for use - ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L User manual, User manual ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L, ViewSonic, EP5012-L, 50, Full, HD, ePoster, Digital, EP5012-L,


User manual for ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L

ViewSonic EP5012-L 50
  • Manufacturer: ViewSonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
  • Safety instructions
  • Startup and operation of the commercial monitors
  • Tips for setting up your ViewSonic
  • Settings and expert assistance
  • Contact ViewSonic service
  • Troubleshooting
  • Warranty information
ViewSonic EP5012-L 50 ViewSonic EP5012-L 50
Click to enlarge image

We recommend checking out our discussion threads on the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L, which address similar problems with connecting and setting up Commercial Monitors ViewSonic.



User manual for the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L

The user manual for the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

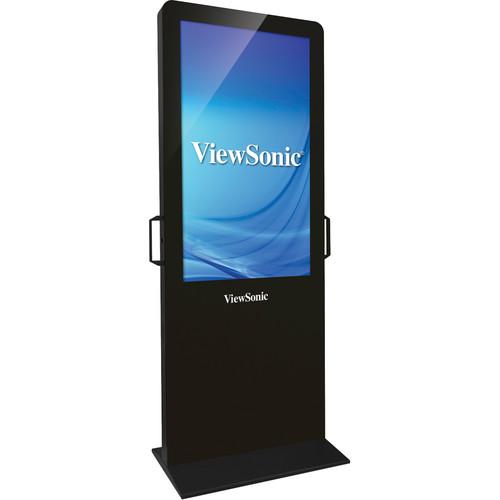

The EP5012-L 50" Full HD ePoster Digital Kiosk from ViewSonic is a free-standing digital signage solution. This kiosk is endowed with a hard-coated, scratch-resistant 50" LED display and features a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor's 350 cd/m² brightness rating and 5,000 contrast ratio showcases its ability to handle light and dark on-screen images. Additionally, this kiosk features anti-glare technology, which allows you to view the screen in a variety of lighting conditions.

As a digital-signage-capable display, this kiosk is suitable for a wide range of commercial applications. It even features an internal media player complete with 8GB of storage and free content management software. For interfacing external devices, the EP5012-L is equipped with HDMI, VGA, and two USB inputs. Network connectivity is enabled by the kiosk's onboard Ethernet port. Dual 6W speakers are also built into the display for stereo audio playback.
If you own a ViewSonic commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L:
Display
Type Color TFT active matrix LCD with WLED backlight
Diagonal Size 50" (127 cm)
Display Area (H x V) 24.2 x 43.1" (614.7 x 1,094.7 mm)
Resolution 1920 x 1080, 600 mm dot pitch
Brightness Typical: 350 cd/m²
Contrast Ratio (Typical) 5,000:1
Viewing Angle (H/V) 176°/176°
Response Time 6.5 ms
Backlight White-light LED
Backlight Life Typical: 50,000 hours
Light Source Minimum: 30,000 hours
Aspect Ratio 16:9
Panel Surface Anti-glare, hard coating (3H), tempered glass
Touchscreen None
Media Player
Storage 8 GB
File Support Video: MPEG 1/4, AVC, VC-1, RM
Photo: JPEG, GIF, BMP, PNG
Audio: WMA, MP3, M4A (AA CC)
Platform Linux
Connectivity
Inputs 1 x HDMI
1 x VGA
1 x 1/8" (3.5 mm)
Other Ports 2 x USB type-B
2 x USB hub (lower)
1 x RJ45 LAN
1 x RJ45 LAN pigtail (lower)
1 x Power-in
1 x Power-out
Audio
Speakers Internal: 2 x 6 W
General
Controls System Settings: Language, Screen Mode, Screen Resolution, Clock Display, USB, Scrolling Text, Sync Settings, Reset
System Control: Work Mode, Storage Priority
Network Setting: Server Settings, Get IP Type, Machine ID, MAC Address
Date and Time: Date, Time, Startup Sync Time Setting, Daylight Saving Time, Time Zone, Sync Time Now
On/Off Timer: Timer Mode, Control Mode
Special Settings: Volume, Source
File Management: Reformat
Power Requirements 100 to 240 VAC, 50/60 Hz
Power Consumption On (Typical): 97.6 W
Operating Conditions Temperature: 32 - 122°F (0 - 50°C)
Humidity: 20-90% (non-condensing)
Accessory Mounting 100 x 100, 75 x 75 mm
Regulations CE, FCC
Dimensions (WxHxD) 29.7 x 72.8 x 17.7" (755.0 x 1,850.0 x 450.0 mm)
Weight 188.7 lb (85.6 kg)
Packaging Info
Package Weight 213.0 lb
Box Dimensions (LxWxH) 79.0 x 35.5 x 23.0"
The user manual for the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ViewSonic users keep a unique electronic library for ViewSonic commercial monitorss, where you can use our link to download the user manual for the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L.

The user manual lists all of the functions of the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ViewSonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ViewSonic EP5012-L 50" Full HD ePoster Digital EP5012-L. User manuals are also available on the ViewSonic website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
