User manual Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F

Operating instructions and pdf manual for use - Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F User manual, User manual Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F, Vinten, VB-AP2F, Vision, Blue, System, with, Floor


User manual for Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F
  • Manufacturer: Vinten
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems
  • Safety instructions
  • Startup and operation of the tripod systems
  • Tips for setting up your Vinten
  • Settings and expert assistance
  • Contact Vinten service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F, which address similar problems with connecting and setting up Tripod Systems Vinten.



User manual for the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F

The user manual for the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.

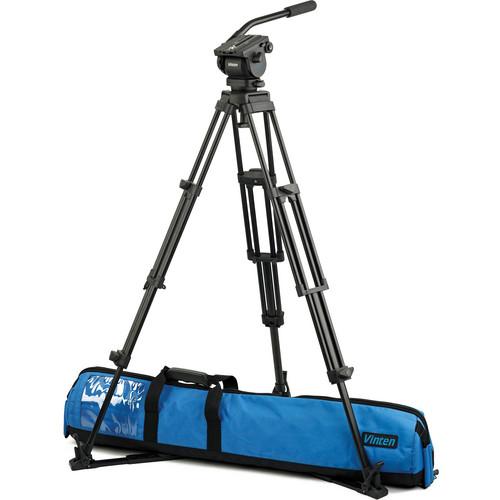

The Vinten VB-AP2F Vision Blue System with Floor Spreader includes a Vision Blue Head, Two-Stage Aluminum Pozi-Loc Tripod, Soft Case, and offers professional support for lightweight camcorders and DSLRs equipped for video.

The Vinten Vision Blue Pan and Tilt Head incorporates a continuously variable counterbalancing system, LF drag assemblies for pan and tilt motions, and an adjustable camera mounting plate with a 1/4" screw and pin. Easy to access placement of pan and tilt brakes, drag controls, and counterbalance enables you to easily adjust camera settings.

Illuminated level bubble allows for head adjustment in locations with low lighting levels, and can provide 15 second illumination by pressing the pushbutton. The Vinten Perfect Balance technology enables load balance between 4.6-11 lb (2.1-5 kg) with a low center of gravity of around 2.2” (55 mm), and allows the Vision Blue Pan and Tilt Head to balance the smaller lightweight cameras.

Equipped with the Vinten lubricated friction (LF) technology, it provides smooth movement of the camera. In addition, the pan and tilt brakes are located on the left side of the Vision Blue Pan and Tilt Head, and enable each axis on the head to be locked at any selected position. The camera can be mounted on the head with the help of a slide plate attached to the camera, and then loaded from the back of the platform and fixed securely with a slide plate clamp.

The Two-Stage Pozi-Loc Tripod (3819-3) made of aluminum is light at 7 lb (3.2kg) and features a maximum load capacity of 55 lb (25 kg). Pozi-Loc leg clamps offer easy setup and the height of the tripod is adjustable from 16.4” (41.6 cm) to 61.5” (156.2cm).

For providing stability to the tripod on flat ground, the support system comes with the black Floor Spreader (3363-3). The flexible Spreader unit can be used on uneven terrain and hinged construction allows for easy folding with the tripod. Equipped with quick-release straps, the floor spreader can be easily installed and removed.

The Rounded Soft Case (3358-3) compatible with the Vision 3, 6, 8 & 11 heads with two-stage Pozi-Loc tripod protects the equipment during travel, and allows you to carry them safely.
If you own a Vinten tripod systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F:
Specifications
    Vision Blue Head
    Load Capacity 4.6 to 11.0 lb (2.1 to 5.0 kg) @ approx. 55 mm CofG
    Tilt Range ±90º
    Ball Base 75 mm
    Pan Bar Single fixed length
    Camera Fixing Standard Vision AS two-way sliding plate with one 1/4" camera screw and pin
    Levelling Bubble Illuminated high contrast blue LED
    Drag Control Calibrated infinitely adjustable LF drag system
    Counterbalance Infinitely adjustable perfect balance
    Color Black
    Height 4.8" (121.9 mm)
    Length 5.1" (129.5 mm)
    Weight 5.3 lb (2.4 kg) inc. pan bar, camera plate and bowl clamp
    Two-Stage Aluminum Pozi-Loc Tripod (3819-3)
    Height Range 16.4 to 61.5" (41.6 to 156.2 cm)
    Weight 7 lb (3.2 kg)
    Maximum Load 55 lb (25 kg)
    Floor Spreader (Black) (3363-3)
    Color Black
    Rounded Soft Case (3358-3)
    Compatibility Vision 3, 6, 8 & 11 with two-stage Pozi-Loc tripod
    Packaging Info
    Package Weight 20.0 lb
    Box Dimensions (LxWxH) 43.0 x 10.0 x 9.5"
    The user manual for the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F can be downloaded in .pdf format if it did not come with your new tripod systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vinten users keep a unique electronic library for Vinten tripod systemss, where you can use our link to download the user manual for the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F.

    The user manual lists all of the functions of the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F, all the basic and advanced features and tells you how to use the tripod systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vinten service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vinten VB-AP2F Vision Blue System with Floor Spreader VB-AP2F. User manuals are also available on the Vinten website under Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.
