User manual VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269

Operating instructions and pdf manual for use - VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269 User manual, User manual VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269, VITEC, MGW, Sprint, Sub, One-Frame, H.264, HD, IPTV, Enc


User manual for VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269

VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269
  • Manufacturer: VITEC
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Streaming Media Accessories
  • Safety instructions
  • Startup and operation of the streaming media accessories
  • Tips for setting up your VITEC
  • Settings and expert assistance
  • Contact VITEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269, which address similar problems with connecting and setting up Streaming Media Accessories VITEC.



User manual for the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269

The user manual for the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269 provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Streaming Media Accessories.

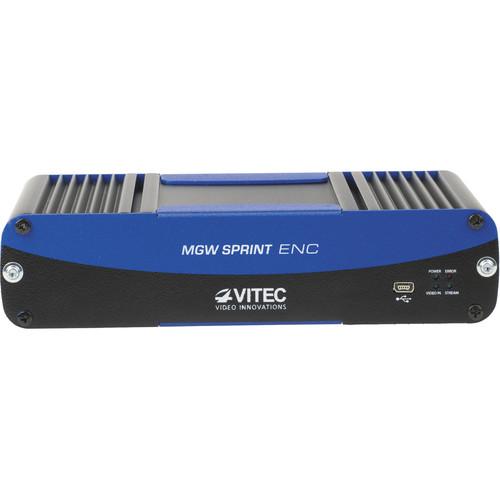

The MGW Sprint Sub One-Frame H.264 HD IPTV Encoder from VITEC uses sub one-frame TurboVideo2 technology for broadcasting H.264 IP streams in unicast or multicast modes, over wide range of network types, while maintaining remarkable video quality suitable for any video application. The encoder can stream Full HD 1080p video and audio, point-to-point or point-to-multipoint with less than one video frame of delay, matching the latency of hard-wired uncompressed video systems.
If you own a VITEC streaming media accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269:
Specifications
    Video
    Modes Main Profile L3 and L4
    High Profile L4 and L4.1
    Bit Rate 5 to 40 Mb/s
    Resolutions Configurable up to full HD 1920 x 1080p
    Frame Rate 25 to 60 fps
    Audio
    Embedded Audio PCM stereo and mono modes
    Bit Rate 48 to 196 kb/s
    I/O Interface
    Input Resolutions 1024x768p, 50/60/75 Hz
    1280x800p, 50/60 Hz
    1366x768p, 50 Hz
    1280x720p, 25/29.97/30/50/59.94/60 Hz
    1920x1080p, 23.976/24/25/29.97/30 Hz
    Video Input 1 x 3G / HD-SDI, 1 x HDMI with support for HDCP / non-HDCP sources
    Audio Input Embedded audio via HD-SDI / SD-SDI, Embedded audio via HDMI
    Ethernet 1 x RJ45 10/100/1000 Mb/s Base-T for streaming/ management
    Protocol Supported
    Streaming RTP/RTCP unicast and multicast
    Peripheral Connectivity HTTP, SAP, IGMP
    Environmental
    Operating Temperature 32 to 122°F (0 to 50°C)
    Relative Humidity 5 to 95% (non-condensing)
    EMC Certifications FCC part 15 class B and CE
    Military Specification Meets MIL-STD810F and MIL-STD461
    Physical
    Enclosure Professional-grade rugged aluminum case
    Power Consumption 9 to 12 VDC, maximum 15 W
    LED On front for power, network activity, streaming, and video source indications
    Dimensions (H x W x D) 1.69 x 7.48 x 4.64" (42.92 x 190.00 x 118.00 mm)
    Weight 1.90 lb (1.11 kg)
    The user manual for the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269 can be downloaded in .pdf format if it did not come with your new streaming media accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other VITEC users keep a unique electronic library for VITEC streaming media accessoriess, where you can use our link to download the user manual for the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269.

    The user manual lists all of the functions of the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269, all the basic and advanced features and tells you how to use the streaming media accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from VITEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the VITEC MGW Sprint Sub One-Frame H.264 HD IPTV Encoder 14269. User manuals are also available on the VITEC website under Professional Video - Studio & EFP Equipment - Streaming Media Accessories.
