User manual Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL

Operating instructions and pdf manual for use - Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL User manual, User manual Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL, Vivitek, D5010-WNL, Large, Venue, Professional-G


User manual for Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL

Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL
  • Manufacturer: Vivitek
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Vivitek
  • Settings and expert assistance
  • Contact Vivitek service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL, which address similar problems with connecting and setting up Multimedia Projectors Vivitek.



User manual for the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL

The user manual for the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

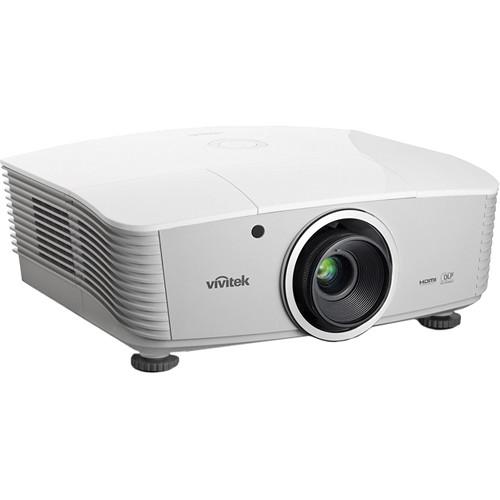

The D5010-WNL Large Venue Professional-Grade XGA Projector from Vivitek features a 1024 x 768 XGA native resolution, 6000 lumens of brightness, a 2000:1 contrast ratio and lamp that lasts up to 3500 hours in Eco Mode. DLP and BrilliantColor technologies create high image quality and reproduction. The projector is installation friendly, with three options of bayonet style lenses that can be used. With vertical and horizontal lens shift functions and multiple connection alternatives, the D5010-WNL projector is designed for use in large venue environments.
If you own a Vivitek multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNLDownload user manual for Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL
(PDF file, 7.81 MB)
Additional parameters of the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL:
Specifications
    Projection System 0.7" (17.87 mm) single-chip Texas Instruments DLP
    Display Technology BrilliantColor Technology
    3D 3D-Ready (Via DLP Link, Blu-ray 3D)
    Native Resolution XGA 1024 x 768
    Maximum Resolution WUXGA 1920 x 1200
    Aspect Ratio Native: 4:3
    Video Compatibility SDTV (480i)
    EDTV (480p, 576p)
    NTSC (M, 3.58 MHz, 4.43 MHz)
    PAL (B, D, G, H, I, M, N)
    SECAM (B, D, G, K, K1, L)
    Brightness 6000 Lumens
    Contrast Ratio 2000:1 (full on/full off)
    Uniformity 85%
    Scan Rate Horizontal: 15, 31 to 91.4 KHz
    Vertical: 24 to 30, 47 to 120 Hz
    Keystone Correction ± 40° Vertical
    ± 40 Steps
    Projection Method Table (front)
    Ceiling (front)
    Table (rear)
    Ceiling (rear)
    Lamp Type UHP
    Lamp Power 370 W
    Lamp Life Normal Mode: 1500 hours
    Eco Mode: 3500 hours
    Fan Noise Normal Mode: 42 dB
    Eco Mode: 37 dB
    Connectivity 1 x HDMI v1.4
    1 x DVI-D
    1 x DisplayPort
    5 x BNC component video input (RGBHV)
    3 x RCA component video input (YPbPr)
    2 x VGA input
    2 x RCA audio input
    1 x RCA composite video input
    1 x S-video input
    2 x Mini-jack audio input
    1 x VGA output
    1 x Mini-jack audio output
    1 x RJ45
    1 x RS-232 control
    1 x 12V trigger
    1 x 3D sync-out
    1 x USB power port (5V, 1.5A)
    1 x USB service port
    1 x Remote jack for wire remote
    Speaker Output 2 x 3W stereo
    Security Features Kensington lock slot
    Security bar
    Power Supply AC 100 to 240 V (50/60 Hz)
    Power Consumption Standard Mode: 480 W
    Eco Mode: 365 W
    Standby Mode: < 0.5 W
    Operating Temperature & Humidity 41 to 95°F (5 to 35°C), 80% max humidity
    Dimensions (WxHxD) 17.0 x 6.4 x 13.6" (43.1 x 16.1 x 34.4 cm)
    Weight 19 lb (8.6 kg)
    Packaging Info
    Package Weight 26.35 lb
    Box Dimensions (LxWxH) 20.945 x 17.48 x 12.677"
    The user manual for the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vivitek users keep a unique electronic library for Vivitek multimedia projectorss, where you can use our link to download the user manual for the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL.

    The user manual lists all of the functions of the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vivitek service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vivitek D5010-WNL Large Venue Professional-Grade XGA D5010-WNL. User manuals are also available on the Vivitek website under A/V Presentation - Projectors - Multimedia Projectors.
