User manual for the Vixen Optics AX103S Refractor Telescope with SXP EQ Mount 25093

The user manual for the Vixen Optics AX103S Refractor Telescope with SXP EQ Mount 25093 provides necessary instructions for the proper use of the product Optics - Telescopes - Refractors.

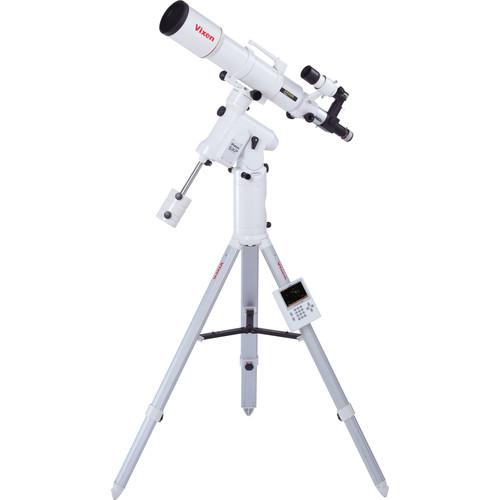

This AX103S Refractor Telescope bundle from Vixen Optics includes four main components, a telescope, a tripod, a mount, and an electronic hand controller. These items are combined to create a capable and user-friendly rig for celestial object viewing.

The AX103S Refractor Telescope is an apochromatic f/8.0 refractor with a focal length of 825mm, an aperture of 103mm, and a Quad Element Design. Its three-element objective is complemented by a central fourth lens made from "Super Low Dispersion" glass. This optical design helps reduce chromatic aberration while delivering high-contrast imagery. Precision Multi-Coating is applied to the lenses in order to enhance light transmission and reduce internal reflections that could otherwise reduce overall image quality. A rear field corrector lens is also installed to help further ensure a crisp, high-contrast field of view that is virtually free of false color.

The AX103S weighs 10.0 lb and is fitted with 115mm mounting rings. A dovetail plate is provided, as well as a carry handle. This bundle includes Vixen's 20mm SLV Series 1.25" Eyepiece, a 9mm SLV Series 1.25" Eyepiece, plus a flip mirror diagonal to enable accurate, visual framing and focusing for astrophotography. The flip mirror diagonal can be configured with one of the included eyepieces and a camera. On the AX103S, the 20mm eyepiece provides 41.25x magnification, while the 9mm eyepiece provides 91.67x magnification.

The Sphinx SXP Equatorial Mount is an innovative equatorial mount engineered to accommodate a 35 lb payload capacity. It is designed to use the body of the mount as part of the counterweight system, enabling smoother motion and less additional counterweight. The included Star Book Ten hand controller incorporates a high-resolution color LCD screen with several user-friendly navigation tools that make locating celestial bodies and aligning the optical tube as easy as pressing a button. Precision gears, periodic error correction, and an integrated polar axis scope make this mount a full-featured astronomy tool for amateur stargazers and researchers alike.

The provided tripod on which to rest the telescope, mount, and hand controller is Vixen's HAL 130 tripod. Its adjustable height allows the user to set the position of the telescope to their liking for easy and comfortable viewing. The top of the tripod is powder-coated with a durable finish that resists chipping, flaking, and fading. The tripod is collapsible for convenient storage and portability.

Also included in this bundle is Vixen's 7x50 Illuminated Finderscope to aid in centering observed objects, and a half pillar which contributes approximately 8.0" of additional height to the mount. This pillar provides clearance when attaching a DSLR to the rear or the telescope, and increases comfort for taller observers as well.
