User manual Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS

Operating instructions and pdf manual for use - Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS User manual, User manual Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS, Vixen, Optics, Sphinx, SX2, Mount, with, VC200L, Refle


User manual for Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS

Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS
  • Manufacturer: Vixen Optics
  • Basic description and contents of package
  • Product classification: Optics - Telescopes - Reflectors
  • Safety instructions
  • Startup and operation of the reflectors
  • Tips for setting up your Vixen Optics
  • Settings and expert assistance
  • Contact Vixen Optics service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS, which address similar problems with connecting and setting up Reflectors Vixen Optics.



User manual for the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS

The user manual for the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS provides necessary instructions for the proper use of the product Optics - Telescopes - Reflectors.

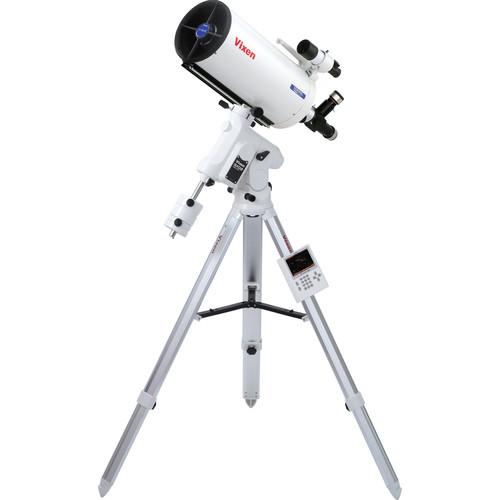

The Vixen Sphinx SX2 Mount with VC200L Reflector Telescope and Tripod features precision motors and gears for accurate long-duration tracking. Dual stepper motors provide smooth and virtually vibration-free tracking that run at up to 250pps. Its full-circle brass wheel gear allows the mount to track over extremely long periods with little error. The RA and DEC motors are situated inside the mount to reduce interference, and act as counterbalance for smaller scopes, eliminating the need for the counterweights and shaft. When not in use, the counterweight shaft retracts into the mount and out of the way.

The VC200L is designed for astro imaging - at the edge of a 35mm SLR format stars remain sharp (< 15 µm). This level optical performance is comparable to the resolving power of fine quality digital imaging systems. Employing the optional f/6.4 reducer significantly shortens exposure times.

Vixen has fitted the VCL200L's OTA with a piggy-back camera holder - this allows taking photos through the telescope while using a second camera in parallel to the OTA. Additionally, the VC200L can be used to guide the secondary imaging system.

Controlling the rig is the Star Book One (SB1) computer, which helps you find, observe, and track celestial objects. Since near and deep sky objects appear to move at different speeds, the SB1 features celestial, solar, lunar, and King's rate tracking speeds. An integrated autoguider port adds to the mount's usability.
If you own a Vixen Optics reflectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS:
Specifications
    Optical Design VISAC Aspherical Mirror Reflector
    Aperture 200mm
    Focal Length 1800mm
    Focal Ratio f/9.0
    Back Focus 2.5" (63.5 mm)
    Coating Multi coated
    Resolving Power .58 arc sec
    Resolution Theoretical: 0.63" (16 mm)
    Limiting Magnitude 13.3
    Light Gathering Power 816x
    Adapter Thread: 60 mm / 50.8 mm
    Visual Back Compression Ring
    Tripod HAL 130
    Mount Type German Equatorial
    Focuser Dual speed
    Optical Tube Dimensions Length: 23.6" (60 cm)
    Diameter: 9.1" (23.2 cm)
    Weight: 13.2 lb (6 kg)
    The user manual for the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS can be downloaded in .pdf format if it did not come with your new reflectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vixen Optics users keep a unique electronic library for Vixen Optics reflectorss, where you can use our link to download the user manual for the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS.

    The user manual lists all of the functions of the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS, all the basic and advanced features and tells you how to use the reflectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vixen Optics service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vixen Optics Sphinx SX2 Mount with VC200L Reflector 25077DS. User manuals are also available on the Vixen Optics website under Optics - Telescopes - Reflectors.
