User manual Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603

Operating instructions and pdf manual for use - Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603 User manual, User manual Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603, Vortex, 20x56, Kaibab, HD, Roof-Prism, Binocular, KAI-5603,


User manual for Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603

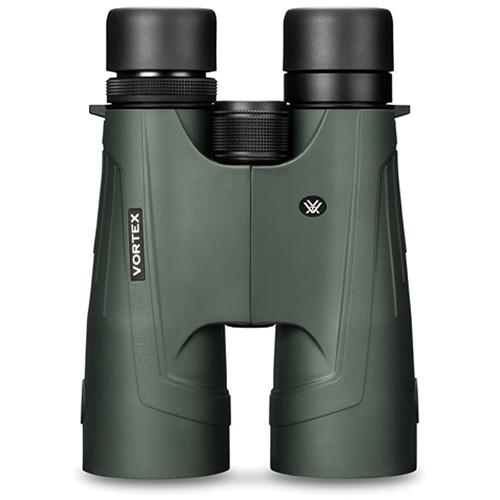

Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603
  • Manufacturer: Vortex
  • Basic description and contents of package
  • Product classification: Optics - Binoculars - Binoculars
  • Safety instructions
  • Startup and operation of the binoculars
  • Tips for setting up your Vortex
  • Settings and expert assistance
  • Contact Vortex service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603, which address similar problems with connecting and setting up Binoculars Vortex.



User manual for the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603

The user manual for the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603 provides necessary instructions for the proper use of the product Optics - Binoculars - Binoculars.

The 20x56 Kaibab HD Roof-Prism Binocular from Vortex Optics is designed for high performance in low-light conditions. Whether you're bird-watching or hunting, dawn and dusk are the perfect times to spot and view game, and you need a binocular that can deliver. To make the most of the large 56mm objectives, the lenses are made of High Density (HD) Extra-low Dispersion (ED) glass with a phase-corrected apochromatic optical system. This produces images that are bright and crisp, with true color transmission, across the entire field of view without distortion. All the optical surfaces are fully-multicoated with Vortex's XRPlus coatings. This anti-reflective coating ensures minimal light loss and maximum light transmission through the lenses. The roof prisms feature dielectric coatings with better than 99% reflectivity to make sure as much light as possible makes it to your eye.
If you own a Vortex binoculars and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603Download user manual for Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603
(PDF file, 1.44 MB)
Additional parameters of the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603:
Prism Type Roof
Magnification 20x
Objective Lens Diameter 56mm
Angle of View 3.2° (actual)
Field-of-View 168' @ 1000 yd / 55.78 m @ 1000 m
Minimum Focus Distance 23' / 7.01 m
Exit Pupil Diameter 2.8  mm
Eye Relief 15  mm
Interpupillary Adjustment 60 - 76 mm / 2.36 - 2.99"
Focus Type Center
Tripod Mount Yes (Adapter Included)
Dimensions 7.7 x 5.7 x 2.5" / 19.56 x 14.48 x 6.35  cm
Weight 2.7 lb / 1.22 kg
Packaging Info
Package Weight 4.75 lb
Box Dimensions (LxWxH) 12.8 x 8.1 x 4.3"
The user manual for the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603 can be downloaded in .pdf format if it did not come with your new binoculars, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Vortex users keep a unique electronic library for Vortex binocularss, where you can use our link to download the user manual for the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603.

The user manual lists all of the functions of the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603, all the basic and advanced features and tells you how to use the binoculars. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Vortex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Vortex 20x56 Kaibab HD Roof-Prism Binocular KAI-5603. User manuals are also available on the Vortex website under Optics - Binoculars - Binoculars.
