User manual for the Vortex 6-24x50 Viper HS Long Range Riflescope VHS-4315-LR
The user manual for the Vortex 6-24x50 Viper HS Long Range Riflescope VHS-4315-LR provides
necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

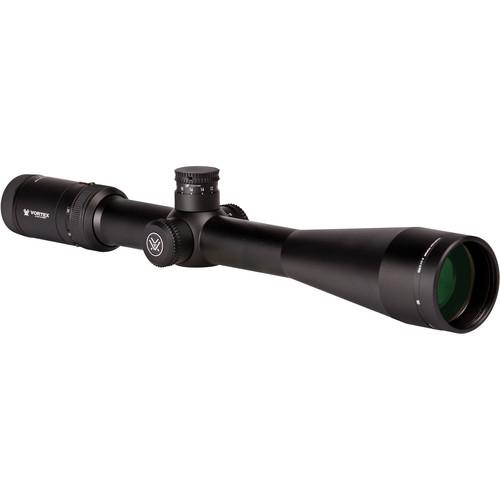

The 6-24x50 Viper HS Long Range Riflescope with XLR MOA reticle from Vortex is specifically designed for intermediate to long-range hunting. The single-piece tube is machined from a solid block of aerospace aluminum then anodized, argon filled, and o-ring sealed for weatherproof and shockproof performance. Vortex's XD (extra-low dispersion) lens elements are engineered to provide improved color fidelity and image resolution; the elements are fully multicoated with a proprietary XR layer that enhances image brightness. To protect the lens surfaces from scratches and contamination, ArmorTek coatings are applied to the objective and ocular. This configuration of the Viper HS features a side focus parallax adjustment, in-view fiber optic magnification indicator, and an XLR MOA reticle with wind reference subtensions that assist wind drift calculations.
If you own a Vortex riflescopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Vortex 6-24x50 Viper HS Long Range Riflescope VHS-4315-LR in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Vortex 6-24x50 Viper HS Long Range Riflescope VHS-4315-LR:
| Magnification || 6.0 - 24.0x |
| Objective Lens Diameter || 50 mm |
| Main-Tube Diameter || 30 mm |
| Reticle || XLR MOA (in first plane) |
| Field of View || 17.8 - 5.1 ft (5.4 - 1.5 m) at 100 yd |
| Parallax Correction || 50 yd - infinity |
| Eye Relief || 4.0" |
| Impact Point Correction || 1/4 MOA windage, 1/2 MOA elevation |
| Maximum Windage/Elevation Adjustment || 12 MOA windage, 24 MOA elevation |
| Weatherproofing || Yes |
| Length || 15.5" (39 cm) |
| Weight || 23 oz (652 g) |
| Package Weight || 2.6 lb |
| Box Dimensions (LxWxH) || 19.7 x 4.5 x 4.5" |
