User manual Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF

Operating instructions and pdf manual for use - Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF User manual, User manual Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF, Weldex, 19, Sun, Readable, Open-Frame, Monitor, WDL-1900SRF,


User manual for Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF

Weldex 19
  • Manufacturer: Weldex
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Surveillance Monitors
  • Safety instructions
  • Startup and operation of the surveillance monitors
  • Tips for setting up your Weldex
  • Settings and expert assistance
  • Contact Weldex service
  • Troubleshooting
  • Warranty information
  • Price: 719 USD
Weldex 19 Weldex 19 Weldex 19 Weldex 19 Weldex 19 Weldex 19 Weldex 19 Weldex 19

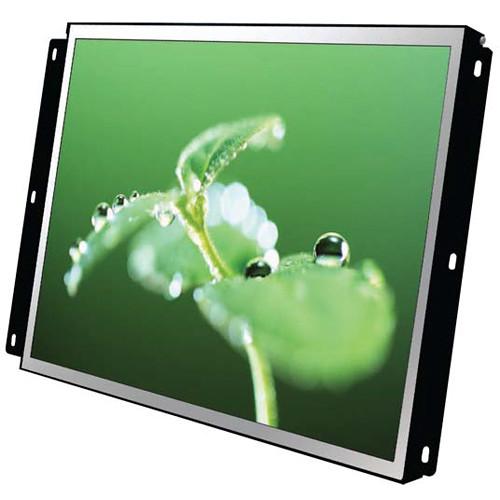

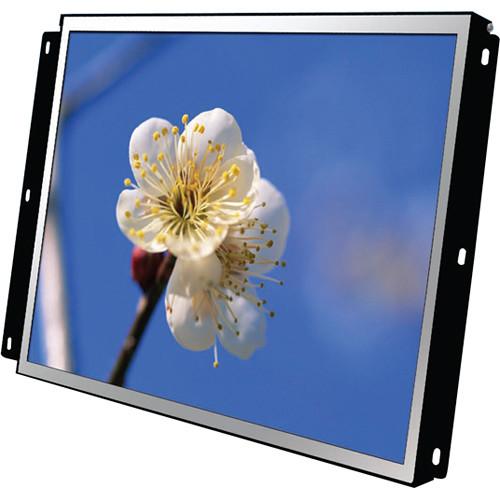

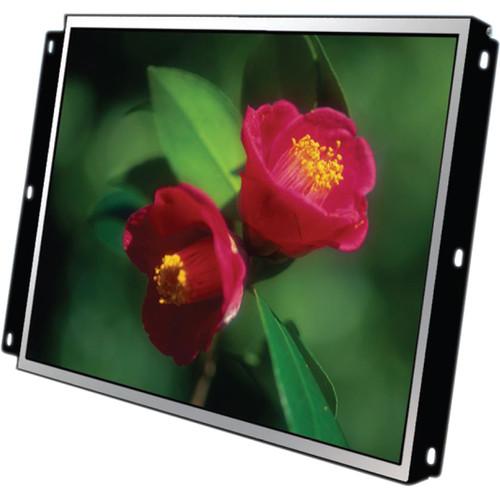

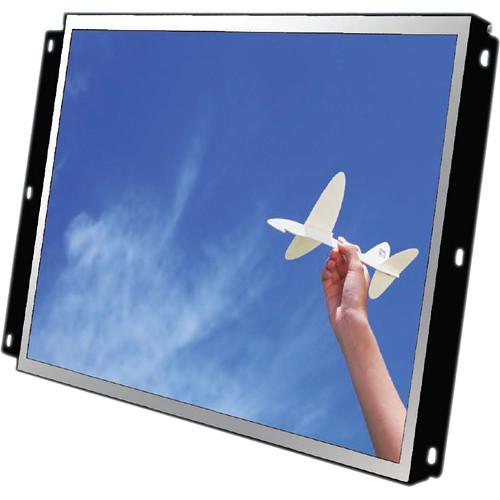

Click to enlarge image

We recommend checking out our discussion threads on the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF, which address similar problems with connecting and setting up Surveillance Monitors Weldex.



User manual for the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF

The user manual for the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

The 19" Sun Readable Open-Frame Monitor from Weldex displays images with resolutions up to 1280 x 1024 pixels. Supporting 16.7M colors with 1000 cd/m² brightness, the monitor depicts the finest details accurately and clearly even in bright sunlight. The on-screen display menu provides feature and video adjustments for quick changes to contrast, color, video and input selection. It features a D-Sub, BNC, and an HDMI input.
If you own a Weldex surveillance monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF:
Specifications
Display
Diagonal Screen Size 19.0" (48.3 cm)
Brightness 1000 cd/m2
Contrast Ratio 1000:1
Resolution 1280 x 1024
Colors 16.7M
Viewing Angle (H x V) 170 x 160°
System
Compatibility PC: VESA standard VGA to SXGA 75 Hz
Video: NTSC, PAL, SECAM (auto detection)
Frequency Horizontal: 31.5 to 37.5 kHz
Vertical: 56 to 75 Hz
Input Signals Analog RGB, CVBS, S-Video
Video Input 1 x D-SUB for RGB, 1 x RCA for CVBS (optional), 1 x mini DIN for S-video, IR receiver (optional)
OSD Controls Auto adjust, brightness & contrast, size & position, color control, language selection, OSD position, video control, input selection
Plug and Play Support DDC 1/2B
Power
Power Management VESA DPMS
Power Consumption Normal mode: 25 W (maximum), DPMS mode: < 4 W
Power Supply Input: 100 to 240 VAC, 50/60 Hz / Output: 12 VDC, 3.3 A
Temperature Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity Operating: 30 to 60%
Storage: 5 to 70%
Dimensions (WxHxD) 16.5 x 13.7 x 2.0" (42.0 x 34.8 x 5.1 cm)
Weight 8.8 lb (4.0 kg)
The user manual for the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF can be downloaded in .pdf format if it did not come with your new surveillance monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Weldex users keep a unique electronic library for Weldex surveillance monitorss, where you can use our link to download the user manual for the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF.

The user manual lists all of the functions of the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF, all the basic and advanced features and tells you how to use the surveillance monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Weldex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Weldex 19" Sun Readable Open-Frame Monitor WDL-1900SRF. User manuals are also available on the Weldex website under Surveillance - Surveillance Video - Surveillance Monitors.
