User manual for the Weldex WDL-7171M2R Dual 7" Industrial Rack WDL-7171M2R
The user manual for the Weldex WDL-7171M2R Dual 7" Industrial Rack WDL-7171M2R provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

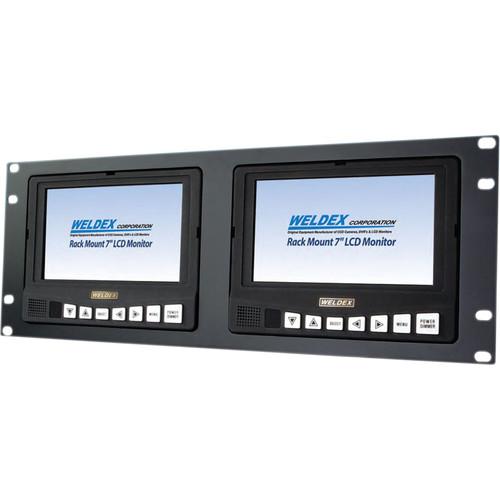

The Weldex WDL-7171M2R Dual 7" Industrial Rack Mountable TFT LCD Monitor can be installed in a 19" rack. Each monitor features 800 x 480 resolution, composite video input, and integrated speakers. The WDL-7171M2R accepts a wide range of input voltages (12 to 32 VDC) and comes with a power supply, video input cables, and a remote control.
If you own a Weldex surveillance monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Weldex WDL-7171M2R Dual 7" Industrial Rack WDL-7171M2R in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Weldex WDL-7171M2R Dual 7" Industrial Rack WDL-7171M2R:
Specifications
Display Type
Monitor 1 & 2: Active matrix color TFT LCD
Screen Size
Monitor 1 & 2: 7" (17.8 cm)
Viewing Angle
Monitor 1 Up: 50°; Down/Left/Right: 70°
Monitor 2 Up: 40°; Down/Left/Right: 60°
Pixel Pitch
Monitor 1: 0.0642 x 0.1790 mm Monitor 2: 0.107 x 0.370 mm
Active Area (WxH)
Monitor 1: 6.1 x 3.4" (154.08 x 85.92 mm) Monitor 2: 6.1 x 3.4" (154.08 x 86.58 mm)
Brightness
Monitor 1 & 2: 400 cd/m2
Resolution
Monitor 1 & 2: 800 x 480
System Type
Monitor 1 & 2: NTSC / PAL
Input Connections
Monitor 1 & 2: 1 x composite (RCA); 1 x audio (RCA)
Built-in Speaker
Monitor 1 & 2: 2 x 2 W stereo
Power Connector
12 VDC power in
Power Consumption
12 to 32 VDC (19.2 W maximum)
Weight
5 lb (2.3 kg)
Dimensions (W x D x H)
19 x 1.9 x 6.97" (48.3 x 4.8 x 17.7 cm)
The user manual for the Weldex WDL-7171M2R Dual 7" Industrial Rack WDL-7171M2R can be downloaded in .pdf
format if it did not come with your new surveillance monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Weldex users keep a unique electronic library
for Weldex surveillance monitorss,
where you can use our link to download the user manual for the Weldex WDL-7171M2R Dual 7" Industrial Rack WDL-7171M2R.
The user manual lists all of the functions of the Weldex WDL-7171M2R Dual 7" Industrial Rack WDL-7171M2R,
all the basic and advanced features and tells you how to use the surveillance monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Weldex service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Weldex WDL-7171M2R Dual 7" Industrial Rack WDL-7171M2R. User manuals are also
available on the Weldex website under Surveillance - Surveillance Video - Surveillance Monitors.
