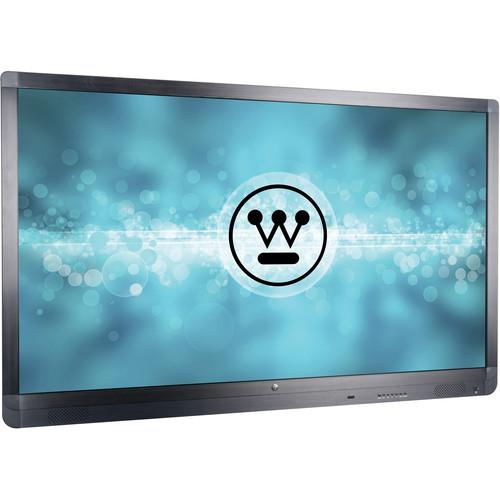

The 70" WB70F1D1 White Board Interactive 1080 Display from Westinghouse is a high-definition touchscreen designed for venues ranging from intimate classrooms to broad-scale auditoriums. It is compatible with the latest Windows 8 and 7 operating systems with an available, optionally purchased, PC module in the provided slot, or with a user-supplied PC. The Westinghouse Digital white boards feature the proprietary CVT 6-point Infrared Touch system. The CVT 6-point Infrared Touch system provides interactive control and detects touch points quickly, at less than 5 milliseconds, and with high accuracy. The display screen surface has a Mohs level 7 rating and has an anti-glare, anti-reflective coating.

The WB70F1D1 combines the ease and functionality of a familiar touchscreen, like a smart phone or tablet, with a screen size that can replace projection systems, and that allows an entire conference room or auditorium to see everything clearly. Westinghouse has provided touch performance, with full connectivity, control, and with an optional purchase, PC integration, and easy-to-use software.

The White Board is wall-mountable or moveable by an optional trolley (rolling stand IWB-STO1) and is protected with a standard, on-site, 3-year warranty. The WB70F1D1, is a 70" widescreen unit featuring full high definition (1920 x 1080) resolution. Furthermore, it offers a visual performance with nominal brightness of 350 cd/m2, a contrast ratio of 4,000:1, a fast 120 Hz refresh rate and full 10-bit color space, with 1.07 billion true colors available. Designed for easy legibility in any environment, the horizontal and vertical viewing angles for all the Westinghouse white boards are 178 degrees.

Powered by an Intel i5 processor, the optionally purchased PC module which conveniently fits into the provided side slot, is Windows 8 compatible and features an integrated graphics engine, as well as a standard configuration of 4GB of RAM (upgradable to 8 GB); a 500 GB SATA hard drive, built-in Wi-Fi capabilities (802.11 b/g/n at 2.4 GHz frequency); an Ethernet LAN port, and 6 USB ports. Basic white board software is included.

A full suite of connectivity options makes this interactive display compatible with just about any presentation need, including dual inputs for both HDMI and conventional VGA connections (2). The WB70F1D1 will also accept composite and component video inputs for legacy video sources and features an analog audio input and RS-232 control.
If you own a Westinghouse digital whiteboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Westinghouse White Board Interactive 1080 Display WB70F1D1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Westinghouse White Board Interactive 1080 Display WB70F1D1:
Picture Quality
Diagonal Size 70"
Native Resolution 1920 x 1080
Aspect Ratio 16:9
Brightness Level (cd/m) 350 (nominal)
Contrast Ratio 4000:1
Refresh Rate 120 Hz
Display Colors 1.07 Billion true colors (10-bit)
Viewing Angle Horizontal 178°
Vertical 178°
Response Time (GtG) 6 ms
Screen Surface Anti-glare/anti-reflective
Connectors
HDMI / HDCP Input 2
VGA 2
Mini AV & YPbPr Audio Input 1
Mini YPbPr Input 1
PC Audio Input 2
USB A Type Connector 1 in (media)
USB B 2 (touch in)
RS-232 1
Mic Input 1 Mini mic
Mini AV Output 1
Coaxial Output 1
VGA Output 1
Touch System
Sensing Technology Infrared system: 6 points
Surface Treatment Toughened glass
Level 7 of Mohs standard
Response Area > 5 mm
Software Basic white board software
Audio
Speakers 2
Audio Power 15 W
General Specifications
Regulation Compliance UL Listed, FCC Class B, RoHS Compliant
Power Requirements 100 to 240V 50/60 Hz
Power Consumption <250 W
Standby Power Consumption <0.5 W
Mechanical
Color (housing) Black
Wall Mount VESA 600mm x 680mm
Dimensions 65.6 x 41.2 x 3.4" (1667.0 x 1047.0 x 85.8 mm)
Weight 158.7 lb (72 kg)
The user manual for the Westinghouse White Board Interactive 1080 Display WB70F1D1 can be downloaded in .pdf format if it did not come with your new digital whiteboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Westinghouse users keep a unique electronic library for Westinghouse digital whiteboardss, where you can use our link to download the user manual for the Westinghouse White Board Interactive 1080 Display WB70F1D1.

The user manual lists all of the functions of the Westinghouse White Board Interactive 1080 Display WB70F1D1, all the basic and advanced features and tells you how to use the digital whiteboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Westinghouse service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Westinghouse White Board Interactive 1080 Display WB70F1D1. User manuals are also available on the Westinghouse website under A/V Presentation - Whiteboards, Easels & Displays - Digital Whiteboards.
