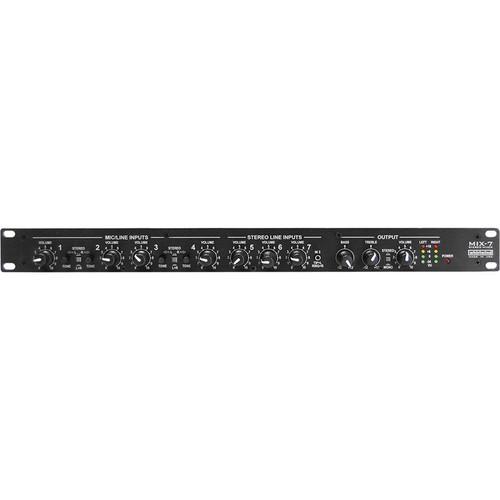

Whirlwind's Mix 7 Contractor Mixer is a versatile stereo mixer, combining four mono mic/line inputs and three stereo line inputs, in a compact, easy to use one rack space package. This mixer provides up to 76 dB of gain, professional quality signal to noise ratio and full frequency response. Designed for use anywhere microphone and music sources need to be combined, the Mix 7 is ideal for use in broadcast production, sports facilities and banquet rooms. Features include stereo/mono switching, a tone control on each of the mic/line inputs, two place master EQ, metering and a stereo/mono switch on the main outputs.
If you own a Whirlwind install sound mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Whirlwind Mix 7 Contractor Mixer MIX-7 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Whirlwind Mix 7 Contractor Mixer MIX-7:
Frequency Response Frequency Response (Line) unity gain: ±.25 dBV 20 Hz - 20 kHz
Frequency Response (Microphone) 40 dB gain: ±.35 dBV 20 Hz - 20 kHz
THD + N Line Mode unity gain: <.0035% 20 Hz - 20 kHz
THD + N Mic Mode 40dB gain: <.012% 20 Hz - 20 kHz
Equivalent Input Noise -120 dBV
Rise Time 4.1 uSec
Total Gain Microphone mode full gain: 70 dBV
Gain Gain of Microphone Preamp: Microphone/Line switch (in) +32 dBV
Range Range of input level pot: -63 to +20 dBV
Range of master level pot: -70to +17 dBV
Common Mode Rejection Input (Microphone): >63 dB
Maximum Input Level Line +21 dBV; Mic -11 dBV
Input Impedance Microphone: 1.3 kOhms
Line: 8.8 kOhms
Isolation Between input channels: Line at unity gain; 72 dB @ 1 kHz
Maximum Output Level +26 dBV balanced
Output Impedance 200 Ohms balanced; 100 Ohms each leg
Noise Unity gain: (Line) -88 dBV
40 dB gain (Microphone): -79 dBV
Dynamic Range 111 dBV
Control Treble Control: ±15 dBV @ 16kHz, shelving
Bass Control: ±15 dBV @ 20 Hz, shelving
Tone Control: ±12 dBV @ 2 kHz, peaking
LED Threshold:
+18, 22 dBm bal; 16 dBm unbalanced
+ 8, 12 dBm bal; 6 dBm unbalanced
0, 4 dBm bal; -2 dBm unbalanced
- 24, -20 dBm bal; -26 dBm unbalanced
Phantom Power 48 VDC
Power Consumption 0.13 Amps AC at 120 VAC maximum
0.09 Amps AC at 120 VAC minimum
Power Requirement 120 VAC 60 Hz
Mains Internal Mains Fuse: .5 Amp Slo-blo type 3AG
Voltage AC Dropout Voltage: 95 VAC
Inputs 4 x Mono Microphone/Line 3 x Stereo Line
Dimensions 1.75 x 19 x 6" (4.44 x 48.26 x 15.24 cm)
Weight 5.3 lb (2.4 kg)
Packaging Info
Package Weight 7.0 lb
Box Dimensions (LxWxH) 22.0 x 10.0 x 5.0"
The user manual for the Whirlwind Mix 7 Contractor Mixer MIX-7 can be downloaded in .pdf format if it did not come with your new install sound mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Whirlwind users keep a unique electronic library for Whirlwind install sound mixerss, where you can use our link to download the user manual for the Whirlwind Mix 7 Contractor Mixer MIX-7.
