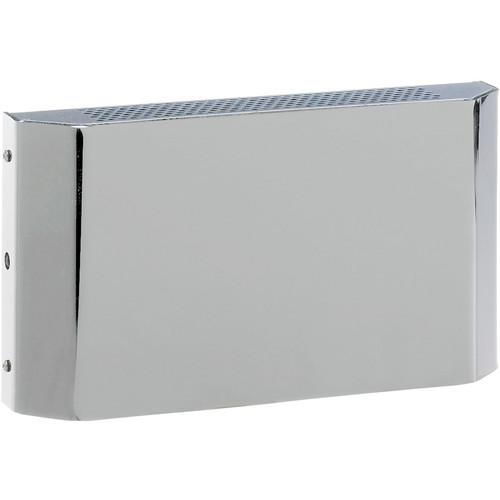

The Williams Sound WIR TX90 Infrared Modulator/Emitter is a wall or ceiling mounted device that combines an infrared modulator and emitter into a single housing, ideal for cinemas, auditoriums, schools, and other facilities that require hearing assistance and simultaneous language interpretation.

The unit operates within the 2.3 to 3.3MHz bandwidth, making it completely compatible with Williams Sound Receivers and minimizing interference. The coverage area of up to 28,000 square feet (2600 square meters) can be increased by simply daisy-chaining multiple units. The WIR TX90 also features a built-in application configuration control that lets you quickly set up the unit for common applications such as voice, music, or hearing assistance. The unit configures itself, taking the guesswork out of installation. An omnidirectional wall/ceiling mount is included.
If you own a Williams Sound components & accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Williams Sound WIR TX90 2-Channel Integrated WIR TX90 WHT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Williams Sound WIR TX90 2-Channel Integrated WIR TX90 WHT:
Specifications
    Modulation FM Wideband, +50kHz Max Deviation, 50µs Pre-Emphasis
    Carrier Frequency Channel A: 2.3/2.8MHz, Selectable
    Channel B: 3.3/3.8MHz, Selectable
    Output Power 3.5W
    Coverage Single-Channel: 28,000 ft2 (2,600 m2)
    4-Channel: 18,000 ft2 (1,700 m2)

    With RX22-4 Receiver

    Signal to Noise Ratio > 75dB, +3dB
    Frequency Response 80Hz - 15kHz, Electrical Response
    Total Harmonic Distortion (THD) < 0.2%
    Compression Music Preset: 1 to 1
    Voice Preset: 1.5 to 1
    Hearing Assistance Preset: 2 to 1
    Auto Shut-Off 20 Mins, No Signal Present
    Controls Frequency Select, Level Adjust, Preset Select, Tone and Volume Adjust
    Indicators Yellow Level LEDs, Green Carrier On LEDs, Red Power LED
    Inputs 2 x 3-Wire Phoenix Connectors
    Outputs BNC, 50 Ohms, for use with TX9 Only
    3.5mm Headphone Output
    Baseband Cable: RG 58 Coaxial, BNC Connectors, 1000' (300 m) Max Length

    Baseband Cable Not Included

    Input Level 316mVRMS (-10dBV) Nominal
    -21 to +7dBV
    Input Impedance 5.7 kOhms
    Presets Music, Voice, and Hearing Assistance
    Power 24VAC, 50/60Hz, 35VA, 3-Pin MOLEX Connector
    Operating Requirements 32-122°F (0-50°C) Ambient Temperature, Non-Condensing, Non-Corrosive Atmosphere
    Mounting Included: BKT 024 Omni Mount
    Optional: SS-11 or SS-6 Stand Kit
    Compliance CE, FCC, RoHS, WEEE
    Compatibility WIR RX22-4, RX14-2, and RX16 Receivers
    Dimensions (WxHxD) 11.25 x 6.25 x 2.125" (286 x 159 x 54mm)
    Weight 1.8 lbs (0.8kg)
    Packaging Info
    Package Weight 6.33 lb
    Box Dimensions (LxWxH) 11.5 x 9.0 x 6.0"
