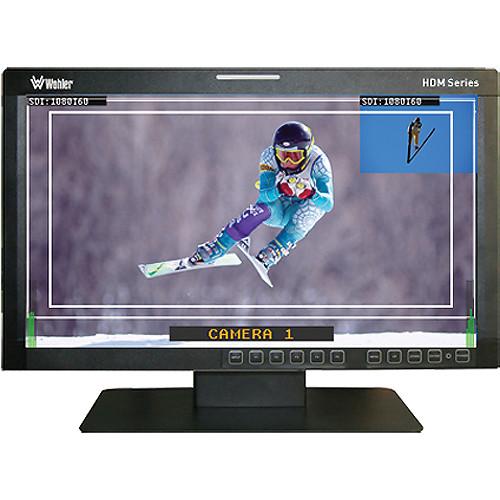

The Wohler HDM-170-3G-RM 17" Dual Split Screen High Definition LCD Monitor with Rack Mount is an LED-backlit high-performance professional monitor that supports 10-bit digital processing technology. This monitor features 3D comb filter, de-interlace, accurate scaling engine, gamma correction, and color temperature adjustment.
If you own a Wohler production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Wohler HDM-170-3G-RM 17" Dual Split Screen HDM-170-3G-RM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Wohler HDM-170-3G-RM 17" Dual Split Screen HDM-170-3G-RM:
Specifications
    Display Type Active color matrix amorphous LCD TFT with RGB backlight
    Display Size 15.00 x 8.50" (38.10 x 21.59 cm) (H x V)
    Resolution 1920 H x 1080 V
    Aspect Ratio 16:9
    Viewing Angle 178° x 178°
    Luminance 300 cd/m2
    Colors 10-bit, 1.07 billion
    Contrast 600:1
    Pixel Pitch 0.199 x 0.199 (mm)
    Input Signals 3G-SDI: 1080P50, 1080P60/59.94

    HD-SDI: 720P24/23.97, 720P25, 720P30/29.97, 720P50, 720P60/59.94, 1080SF24/23.97, 1035i60/59.94, 1080i50, 1080i60/59.94, 1080P24/23.97, 1080P25, 1080P30/29.97

    SD-SDI: 480i60/59.94, 576I50, 480P60/59.94, 576P50

    Analog Composite: PAL, NTSC

    HDMI Only: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1400x1050, 1440x900, 1360x768, 1280x1024, 1024x768, 800x600, and 640x480

    Input 2 x 3G / HD / SD-SDI

    1 x HDMI

    1 x Composite CVBS

    1 x S Video or 1 Component YPbPr

    2 x RCA Analog Audio Stereo Input Pairs

    Output 2 x 3G / HD / SD-SDI

    1 x Composite Video Loop through Output

    1 x CVBS / Y Loop through Output

    1 x C / Pb Loop through Output

    1 x Component / Pr Loop through Output

    1 x RCA Analog Audio Stereo Output Pair

    1 x Headphone Output

    Audio 2 to 16 OSD meters, 16 channels SDI, 2 pairs analog. Select any embedded or analog pair to send to the speakers, headphones, and line out per menu for each video input
    Space requirements 7 RU with rack
    Power Connector AC power adapter (100 to 240 VAC to 12 VDC)
    Power Requirements AC power adapter connects to mains power (100 to 240 VAC ± 10%, 50/60 Hz)
    Power Consumption 60 W
    Dimensions 17.30 x 12.30 x 4.50" (43.94 x 31.24 x 11.43 cm)
    Weight 10.00 lb (4.54 kg)
