User manual Yale Premium Digital Door Viewer (Black) AYRDDDV7001693

Operating instructions and pdf manual for use - Yale Premium Digital Door Viewer (Black) AYRDDDV7001693 User manual, User manual Yale Premium Digital Door Viewer (Black) AYRDDDV7001693, Yale, Premium, Digital, Door, Viewer, Black, AYRDDDV7001693,


User manual for Yale Premium Digital Door Viewer (Black) AYRDDDV7001693

Yale Premium Digital Door Viewer (Black) AYRDDDV7001693
  • Manufacturer: Yale
  • Basic description and contents of package
  • Product classification: Surveillance - Intercoms - Digital Door Viewer
  • Safety instructions
  • Startup and operation of the digital door viewer
  • Tips for setting up your Yale
  • Settings and expert assistance
  • Contact Yale service
  • Troubleshooting
  • Warranty information
  • Price: 100 USD
Yale Premium Digital Door Viewer (Black) AYRDDDV7001693 Yale Premium Digital Door Viewer (Black) AYRDDDV7001693 Yale Premium Digital Door Viewer (Black) AYRDDDV7001693 Yale Premium Digital Door Viewer (Black) AYRDDDV7001693
Click to enlarge image

We recommend checking out our discussion threads on the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693, which address similar problems with connecting and setting up Digital Door Viewer Yale.



User manual for the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693

The user manual for the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693 provides necessary instructions for the proper use of the product Surveillance - Intercoms - Digital Door Viewer.

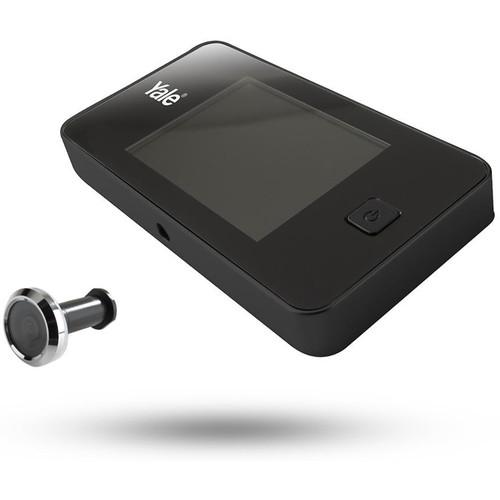

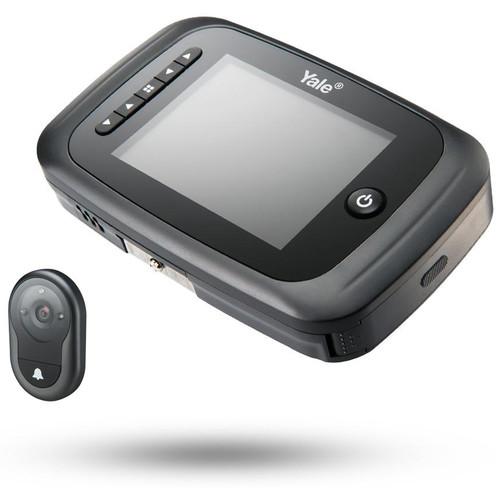

View and record your front door area using the black Premium Digital Door Viewer from Yale. The viewer consists of a peephole-sized camera with an attached door chime that is designed to be installed on the exterior of your home, and a handheld monitor with a 3.5" LCD screen for viewing images and video from the camera. A 0.3MP image sensor provides clear still images as well as high-quality video footage, and IR LEDs surrounding the camera lens provide night vision. The door chime features a highly audible 80 dB volume, and the system will automatically take a picture every time the door chime is pushed.

A microSD slot provides an on-site storage option, and the data on the microSD cards can be easily accessed using a hot-pluggable SD micro-card reader (available separately). The footage can also be viewed on the integrated screen with a 10x digital zoom for users with poor or fading eyesight. The peephole-camera is compatible with doors that range from 1.75" to 4.0" in thickness and should be installed using a 9/16" drill bit. The monitor is powered by four included AA batteries, for a wireless portable solution.
If you own a Yale digital door viewer and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693:
Specifications
Lens 0.3 MP
Field of View 105° angle
Night Vision IR LEDs for night mode
Audio Door Chime: 80 dB
Display 3.5" / 8.9 cm TFT LCD screen
Storage microSD slot (512 MB card included)
Battery 4 x AA (included)
Supports Door Thickness: 1.75 to 4.0" / 4 to 10 cm
Drill Bit Type Cylinder Drill
Diameter: 0.56" / 1.42 cm
Dimensions 3.54 x 5.39 x 1.02" / 8.99 x 13.69 x 2.59 cm
Weight Not specified by manufacturer
Packaging Info
Package Weight 0.95 lb
Box Dimensions (LxWxH) 7.7 x 6.9 x 2.4"
The user manual for the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693 can be downloaded in .pdf format if it did not come with your new digital door viewer, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yale users keep a unique electronic library for Yale digital door viewers, where you can use our link to download the user manual for the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693.

The user manual lists all of the functions of the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693, all the basic and advanced features and tells you how to use the digital door viewer. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yale service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yale Premium Digital Door Viewer (Black) AYRDDDV7001693. User manuals are also available on the Yale website under Surveillance - Intercoms - Digital Door Viewer.
