User manual Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM

Operating instructions and pdf manual for use - Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM User manual, User manual Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM, Yamaha, 02R96VCM, 24/96, Digital, Recording, Console, 02


User manual for Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM

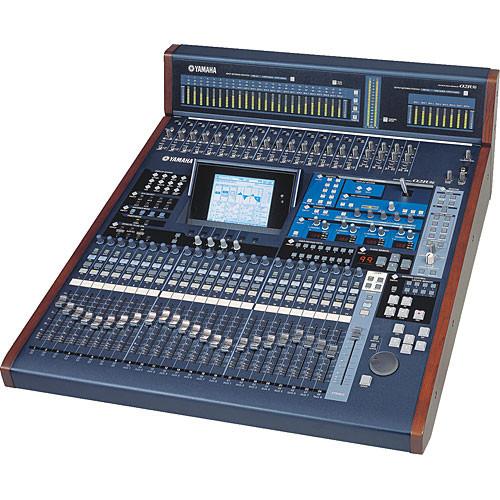

Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Digital Mixers
  • Safety instructions
  • Startup and operation of the digital mixers
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM, which address similar problems with connecting and setting up Digital Mixers Yamaha.



User manual for the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM

The user manual for the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

The 02R96VCM is the result of the ongoing evolution of the renowned 02R series of digital mixing consoles from Yamaha, which have become among the most relied upon tools in audio production. The 02R96VCM has all of the capabilities of the Version 2 software, with its additional effects, improved surround monitoring features, and advanced integration with DAW software such as Nuendo and Pro Tools. It also includes select Virtual Circuitry Modeling digital effects and dynamics (which were previously available as optional add-ons).
If you own a Yamaha digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM:
Total # Of Inputs 56 Total inputs:
24 balanced 1/4" TRS, channels 1-16 are mono, 17-24 are stereo paired
16 XLR inputs and preamps, Up to 32 additional inputs and outputs of optional YGDAI expansion cards
Mic/Line Inputs 24 balanced 1/4" TRS line
16 XLR balanced mic/line switchable inputs
Main/Monitor Out Stereo Out:
Balanced XLR +4dB (1.23V), unbalanced RCA -10dBv (0.316V)
Studio Monitor Out:
Balanced 1/4" TRS +4dB (1.23V)
Control Room Monitor Out:
Balanced 1/4" TRS +4dB (1.23V)
AUX Sends 8 AUX Sends: Internal AUX sends are pre-routed to the 2 internal effects processors, 8 1/4" Phone "Omni Out" jacks can be used to feed signal to external processors.
AUX Returns Returning effects from external processors is permitted via any input channel (1-24). The optional I/O card inputs can be used as external AUX returns as well.
Inserts 16 MIC/LINE Inserts located on channels 1-16: 1/4" Phone jack connector, -6dB sensitivity, +0/4dB nominal
Digital I/O Options MY8AD96 - 96 kHz 8-channel line-level analog input card
MY8DA96 - 96 kHz 8-channel analog output card
MY8AE96 - 96 kHz 8-channel AES/EBU digital format I/O
MY8AE96S - 8-channel AES/EBU digital format I/O with sample rate conversion
MY8AT - 8-channel ADAT digital format I/O (optical connectors
MY8TD - 8-channel TDIF digital format I/O (25-pin D-SUB connector)
MY8AD24 - 8-channel 24-bit analog inputs on balanced 1/4" connectors
MY4AD - 4-channel 24-bit analog inputs on XLR connectors
MY4DA - 4-channel 20-bit analog outputs on XLR connectors
AP8DA - 8-channel Apogee 24-bit analog outputs (25-pin D-sub connector)
AP8AD - 8-channel Apogee 24-bit analog inputs (25-pin D-sub connector)
2 Trk Master I/O Output:
L/R XLR balanced (stereo) +4dB, L/R RCA unbalanced (stereo) -10dBv
Input:
L/R 1/4" TRS (stereo) +4dB, L/R RCA unbalanced (stereo) -10dBv
Stereo Digital I/O Output:
AES/EBU and S/PDIF
Input:
AES/EBU and S/PDIF x2
Word Clock I/O BNC connectors TTL / 75 ohms
RS/To Host Port RS422 D-SUB Half Pitch Connector 68pin (female)
MIDI Ports MIDI IN, OUT, THRU 5pin Din connectors (conform to MIDI specifications)
EQ Section 4 band parametric on all 56 channels. Type I or Type II switchable
Trim/Gain Range 44dB (-60 to -16) MIC/LINE 1-16, 44dB (-40 to +4) LINE 17/18 through 23/24
Solo/Mute Soloing/Muting of every input channel, AUX send, bus and stereo output.
Channel Level Control 100mm motor-driven touch sensitive faders
Phantom Power 48V Phantom power (inputs 1-16)
Metering Backlit LCD display
Optional MB02R96 Meter Bridge available
Internal Signal Processing 32 bit internal processing
Sampling Frequency Internal:
1kHz, 48kHz, 88.2kHz, 96kHz
External:
Normal Rate: 44.1kHz-10% 48kHz +6% Double rate: 88.2kHz-10% 96kHz +6%
Memory Scene = 99 locations (total recall)
Ch Library = 127 locations (2 preset)
EQ Library = 160 locations (40 preset)
Dynamics Library (Compression) = 93 locations (36 preset)
Dynamics Library (Gate) = 124 locations (4 preset)
Effect Library = 76 locations (52 preset)
Surround Monitor Library = 32 locations (1 preset)
Input Patch Library = 32 locations (1 preset)
Output Patch Library = 32 locations 32 (1 preset)
Bus to Stereo Library = 32 locations (1 preset)
AD/DA Conversion 24-bit 96kHz Dynamic Range: 105dB typical FS=48 or 96kHz
Frequency Response CH INPUT to STEREO OUT:
Fs=48kHz: 0.5, -1.5dB 20Hz -20kHz @+4dB into 600 ohms
Fs=96kHz: 0.5, -1.5dB 20Hz to 40kHz @+4dB into 600 ohms
Total Harmonic Distortion (THD) CH INPUT to STEREO OUT:
Fs=48(96)kHz 0.01% 1kHz @ +18dB into 600 ohms
Signal-to-Noise Ratio -128dB (EIN: Equivalent Input Noise) -92dB (Residual Output Noise)@ STEREO OUT off
Power USA and Canada: 120V AC, 60Hz / 200W, general: 230V AC, 50Hz / 200W
Dimensions 27.56 x 13.86 x 27.44" (700 x 352 x 697mm) W x H x D measured with optional meter bridge and wood side panels
Weight 34kg (75 lbs)
Packaging Info
Package Weight 94.35 lb
Box Dimensions (LxWxH) 35.6 x 35.0 x 15.8"
The user manual for the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha digital mixerss, where you can use our link to download the user manual for the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM.

The user manual lists all of the functions of the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM, all the basic and advanced features and tells you how to use the digital mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha 02R96VCM - 24/96 Digital Recording Console 02R96VCM. User manuals are also available on the Yamaha website under Pro Audio - Recording - Digital Mixers.
