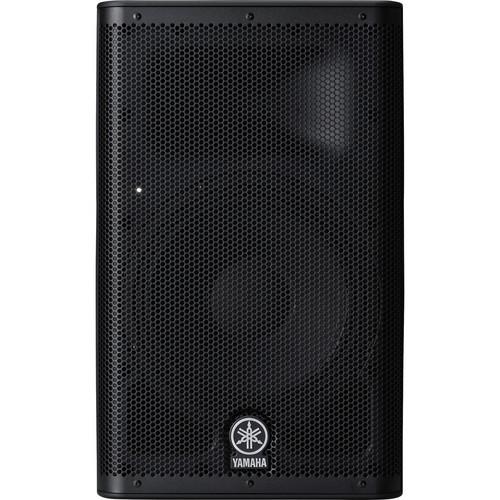

The DXR8 8" 1100W 2-Way Active Loudspeaker from Yamaha provides clear audio and high output levels in a compact and durable design, ideal for live sound applications. The cabinet has a rugged ABS construction with a bass-reflex design for enhanced bass performance with reduced turbulence. The 8" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response. The crossover uses a FIR-X linear phase filter to optimize driver performance.
The speaker has a biamplified design that provides a combined peak output power of 1100W for a strong performance with minimal distortion. A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor. The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices.
The speaker can be placed on a floor or stage, but also has useful mounting options. A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting.
If you own a Yamaha pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Yamaha DXR8 8" 1100W 2-Way Active Loudspeaker DXR8 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yamaha DXR8 8" 1100W 2-Way Active Loudspeaker DXR8:
Specifications
Type
Active, 2-way, biamplified
Frequency Range
57 Hz - 20 kHz (-10 dB)
Coverage
90° H x 60° V
Woofer
8" (203 mm) cone woofer with 2" voice coil and ferrite magnet
Tweeter
1.4" (36 mm) compression tweeter with 1" throat and ferrite magnet
Crossover
FIR-X tuning (linear phase FIR filter)
Amplifier Power
Dynamic: 1100 W (950 W LF, 150 W HF) Continuous: 700 W (600 W LF, 100 W HF)
Output Level
129 dB SPL max (1 m, on axis)
Connectors
1 x XLR input 2 x 1/4" phone inputs 2 x RCA inputs 1 x XLR thru jack (parallel with input) 1 x XLR link output
Processor
D-contour: FOH/main, monitor, off
Cabinet
Bass-reflex, ABS with black matte finish
Mounting
3 x Fly points (2 top, 1 rear, fits M8 x 15 mm eyebolts) 1 x 35 mm pole socket with 0°/7° 2-way feature
