User manual Yamaha WX5 - MIDI Wind Controller - Black WX5

Operating instructions and pdf manual for use - Yamaha WX5 - MIDI Wind Controller - Black WX5 User manual, User manual Yamaha WX5 - MIDI Wind Controller - Black WX5, Yamaha, WX5, MIDI, Wind, Controller, Black, WX5, Video


User manual for Yamaha WX5 - MIDI Wind Controller - Black WX5

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

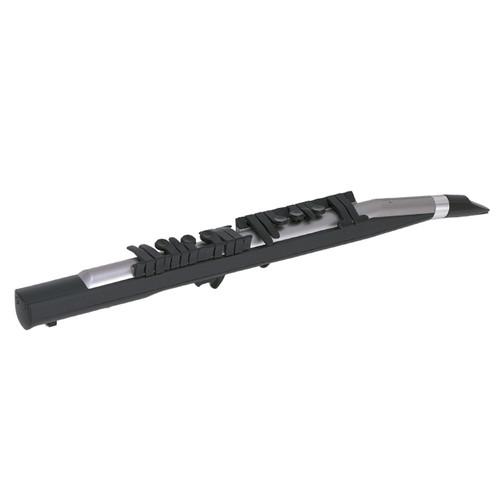

Yamaha  WX5 - MIDI Wind Controller - Black WX5
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Performance & Wind Controllers
  • Safety instructions
  • Startup and operation of the performance & wind controllers
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
  • Price: 549 USD
We recommend checking out our discussion threads on the Yamaha WX5 - MIDI Wind Controller - Black WX5, which address similar problems with connecting and setting up Performance & Wind Controllers Yamaha.



User manual for the Yamaha WX5 - MIDI Wind Controller - Black WX5

The user manual for the Yamaha WX5 - MIDI Wind Controller - Black WX5 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Performance & Wind Controllers.

Guitar players or keyboardists have many options for inputing data into electronic equivalents. Horn and Woodwind players generally have far fewer instruments and devices to choose from; the WX5 is a welcome addition to the market, combining Yamaha's production expertise in the manufacture of both of acoustic and electronic instruments.
If you own a Yamaha performance & wind controllers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha WX5 - MIDI Wind Controller - Black WX5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Yamaha  WX5 - MIDI Wind Controller - Black WX5Download user manual for Yamaha WX5 - MIDI Wind Controller - Black WX5
(PDF file, 2.32 MB)
Additional parameters of the Yamaha WX5 - MIDI Wind Controller - Black WX5:
Controllers Note keys: x 16 including 2 x Assignable High Keys
Octave Change Keys: x 4 (Control range-7 octaves)
Pitch Bend Wheel
Setup Switch
Hold Switch: Key Hold/Sustain/Portamento
Program Change Switch
Power On/Off Switch
Rotary Controls Wind Zero
Wind Gain
Lip Gain
Lip Zero
Transpose Key Transpose: C2,Bb1,Eb
Octave Transpose: 5-step (-2/-1/0+1/+2)
Fingering Saxophone (a), Saxophone (b), Saxophone (c), Flute
Dip Switches Velocity:On/Off
Wind Data: CC#2(Breath Controller), CC#7(Volume), CC#11(Expression)
Wind Curve: Normal/Hard
Lip Mode: Tight Lip/Loose Lip
Lip Range: Normal/Wide
Lip Data: Pitch Bend/Modulation Wheel
Lip+ CC#18 (Gen3): On/Off
Transpose: C2/Bb1/Eb2
Fingering: Saxophone (a,b,c), Flute
Fast Response: On/Off
High D,D# Key Assign: D:CC#81-On, D#:CC#80-Off
Pitch Bend Data: Pitch Bend Up and Pitch Bend Down/Modulation Wheel and Pitch Bend Down/CC#16 (Gen1) and CC#17(Gen2) Bright Up/ Down
Sensors Wind Sensor, Lip Sensor
Indicators Red LED x 2 (Wind Monitor, Lip Zero Monitor)
MIDI Transmit Channel Channels 10 - 16
Connectors MIDI Out Connector, WX Out Connector (Power Out), DC in Jack
Power Supply UM-4
AAA
R03 x 6
PA3B AC Adapter
WX Out Connector (from compatible Yamaha Tone Generators or BT7 MIDI/Power Pack)
Dimensions (LxHxD) 24 x 2.4 x 2.75" (611 x 62 x 70mm)
Weight 1.1 lb (520 g)
Packaging Info
Package Weight 3.95 lb
Box Dimensions (LxWxH) 26.0 x 5.5 x 5.1"
The user manual for the Yamaha WX5 - MIDI Wind Controller - Black WX5 can be downloaded in .pdf format if it did not come with your new performance & wind controllers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha performance & wind controllerss, where you can use our link to download the user manual for the Yamaha WX5 - MIDI Wind Controller - Black WX5.

The user manual lists all of the functions of the Yamaha WX5 - MIDI Wind Controller - Black WX5, all the basic and advanced features and tells you how to use the performance & wind controllers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha WX5 - MIDI Wind Controller - Black WX5. User manuals are also available on the Yamaha website under Pro Audio - Computer Audio - Performance & Wind Controllers.
