User manual Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL

Operating instructions and pdf manual for use - Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL User manual, User manual Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL, Yamaha, YHT-3920UBL, 5.1-Channel, Home, Thea


User manual for Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

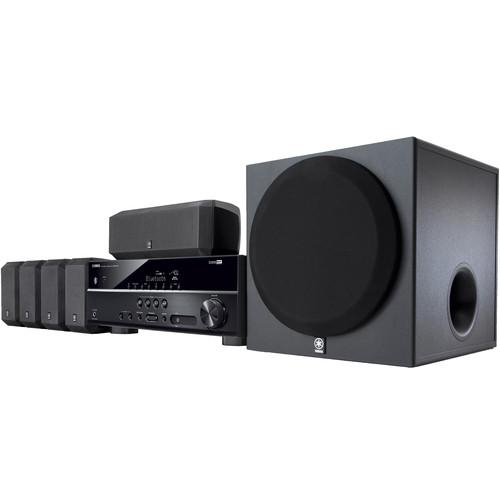

Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL
  • Manufacturer: Yamaha
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Speakers - Home Theater in a Box
  • Safety instructions
  • Startup and operation of the home theater in a box
  • Tips for setting up your Yamaha
  • Settings and expert assistance
  • Contact Yamaha service
  • Troubleshooting
  • Warranty information
  • Price: 430 USD
We recommend checking out our discussion threads on the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL, which address similar problems with connecting and setting up Home Theater in a Box Yamaha.



User manual for the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL

The user manual for the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL provides necessary instructions for the proper use of the product TVs & Entertainment - Speakers - Home Theater in a Box.

The Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box System provides 600W of total output power, including its 100W powered subwoofer, and supports Bluetooth wireless audio streaming. This system supports 3D and 4K pass-through and has four HDMI inputs and one output, which supports ARC for getting TV-originating audio, such as from the TV's apps, to the receiver.

The YHT-3920UBL supports HD Audio with CINEMA DSP and has other audio processing features, such as Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. For setup ease, Yamaha has the AV SETUP GUIDE app, which will direct you through the setup process with images of the system's components and how to connect them. To complement this easy setup, YPAO uses an included microphone to analyze your room's acoustics and adjust the system's output for optimal sound.
If you own a Yamaha home theater in a box and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL:
Receiver
Rated Output Power 100 W @ 8 Ohms, 0.9% THD, 1 kHz, 1ch driven
70 W @ 8 Ohms, 0.09% THD, 20 Hz to 20 kHz, 2ch driven
Maximum Output Power 130 W @ 8 Ohms, 10% THD, 1 kHz, 1ch driven
Dynamic Power per Channel (8/6/4/2 ohms): 110/130/160/180 W
No. of Channels 5.1
DAC Type Burr-Brown 192 kHz/24-bit DACs for all channels
Audio Delay 0 to 500 ms
Inputs and Outputs 4 x HDMI in (1 x HDCP 2.2)
1 x Optical in
2 x Digital Coaxial in
2 x Analog Audio in
1 x ⅛" Audio in (front)
3 x Composite Video in
1 x YPAO mic
1 x FM antenna in
1 x AM antenna in
Outputs 1 x HDMI out (HDCP 2.2)
1 x Composite Video out
1 x Headphone out (front)
5 x Speaker out
1 x Subwoofer out
Speaker Connectors Front left and right
Surround left and right
Center
ARC (Audio Return Channel) Yes
Bluetooth Version Ver. 2.1+EDR
Class 2
Supported Profiles A2DP
Supported Codecs SBC
Bluetooth Range 33.0' (10.0 m)
AM/FM Presets 40
Pass-Through 3D, 4K
Upscaling None
Conversion None
Deep Color / x.v. Color Support Yes
Audio Processing CINEMA DSP, Virtual CINEMA FRONT, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
Functionality Auto lip sync, 24 Hz support
Power Consumption IR Only: ≤0.3 W
Power Requirements 120 VAC, 60 Hz
Dimensions (W x H x D) 17.1 x 6.0 x 12.4" (43.5 x 15.2 x 31.4 cm)
Weight 16.3 lb (7.4 kg)
Speakers
Configuration Front: 2-Way
Center: 2-Way
Surround: 2-Way
Drivers Front, Surround: 1 x 2.5" Woofer, 1 x 0.5" Tweeter
Center: 2 x 2.5" Woofers, 1 x 0.5" Tweeter
Enclosure Plastic
Dimensions (WxHxD) Front: 4.0 x 6.4 x 4.0" (10.2 x 16.2 x 10.2 cm)
Center: 11.9 x 4.0 x 4.0" (30.2 x 10.2 x 10.2 cm)
Surround: 4.0 x 6.4 x 4.0" (10.2 x 16.2 x 10.2 cm)
Weight Front, Per Speaker: 1.6 lb (0.7 kg)
Center: 2.6 lb (1.2 kg)
Surround, Per Speaker: 1.6 lb (0.7 kg)
Subwoofer
Power Output 100 W
Driver 8.0" (20.3 cm) Cone
Dimensions (WxHxD) 11.4 x 11.4 x 12.9" (28.9 x 28.9 x 32.7 cm)
Weight 18.7 lb (8.5 kg)
Packaging Info
Package Weight 54.0 lb
Box Dimensions (LxWxH) 26.5 x 21.5 x 16.5"
The user manual for the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL can be downloaded in .pdf format if it did not come with your new home theater in a box, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha home theater in a boxs, where you can use our link to download the user manual for the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL.

The user manual lists all of the functions of the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL, all the basic and advanced features and tells you how to use the home theater in a box. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha YHT-3920UBL 5.1-Channel Home Theater in a Box YHT-3920UBL. User manuals are also available on the Yamaha website under TVs & Entertainment - Speakers - Home Theater in a Box.
