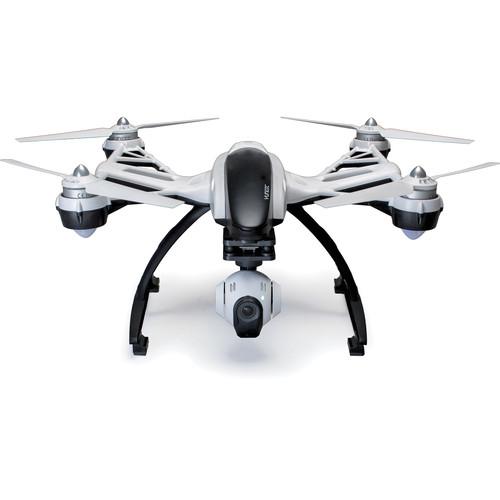

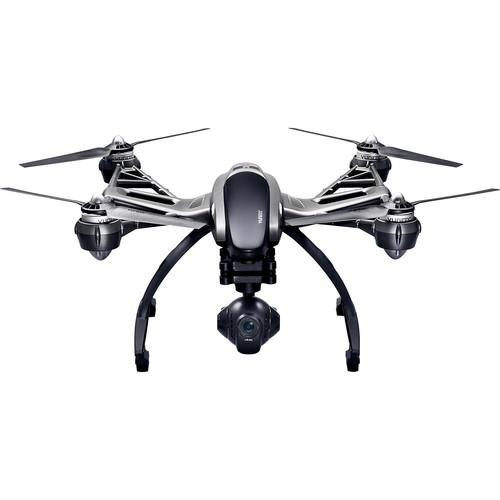

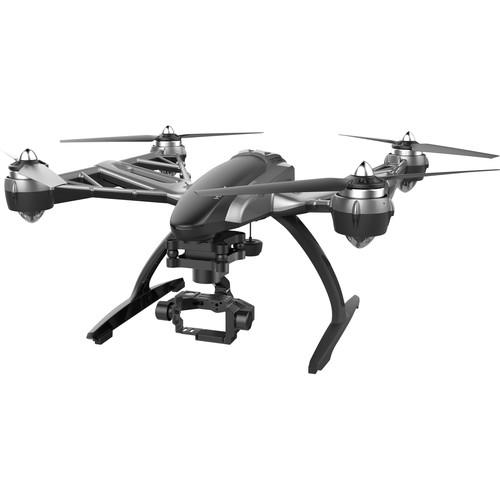

A completion level of ready-to-fly (RTF) means this version of the Q500+ Typhoon Quadcopter with CGO2-GB Camera, SteadyGrip, and Camera Aluminum Case Camera and Aluminum Case from Yuneec comes factory-assembled and that a pre-bound transmitter/ground station unit (radio controller) is included. More than just an RC multi-rotor, the Q500+ Typhoon is designed for APV - aerial photography and video. To this end, it incorporates the CGO2-GB+, a 3-axis gimbal-stabilized camera with 1080p video recording at up to 60 fps and shooting 16-megapixel photos.

The Q500+ Typhoon is bundled with the ST10+ Personal Ground Station, a 10-channel, 2.4 GHz transmitter and 5.8 GHz video receiver rolled into one hand-held unit. In addition to traditional RC joysticks to pilot the quadcopter, there is a built-in Android mobile device which boasts a 5.5" touchscreen - a bump from the original ST10, which has a 4.5" screen. It allows you to view an FPV (first-person view) video image from the camera along with telemetry data superimposed, as well as access settings not available through normal transmitter.

As part of the RTF bundle, if features two 5400mAh flight batteries, providing up to 25 minutes flying each per charge - depending on wind-resistance and other factors. Additionally, the bundle features an aluminum case to safely store and transport the Q500+ and accessories in.
If you own a YUNEEC aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ5PSARTFUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for YUNEEC Q500  Typhoon Quadcopter with CGO2-GB YUNQ5PSARTFUSDownload user manual for YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ5PSARTFUS
(PDF file, 2.97 MB)
Additional parameters of the YUNEEC Q500 Typhoon Quadcopter with CGO2-GB YUNQ5PSARTFUS:
Specifications
Performance
Flight Time Up to 25 minutes (depending on flying conditions)
Maximum Flying Height 400' / 121.9 m above ground level

Note: Adjustable via the Q500 GUI
Maximum Rotational Velocity 65°/s
Maximum Bank Angle 35°
Maximum Climb Rate Smart and Angle Mode: 9.8 fps / 3 m/s
Maximum Descent Rate Smart and Angle Mode: 6.6 fps / 2 m/s
Takeoff Weight With Battery and CGO2-GB Camera: 3.7 lb / 1.7 kg
Camera
Model CGO2-GB+
Focus Fixed
Resolution Video: 1080p at 60, 50 or 48 fps
Photo: 16 MP
White Balance Automatic
Audio Audio recording via integrated microphone (turn on/off with app)
File Formats Photo: JPEG
Recording Media microSDHC/XC Class 10: 4 to 128 GB
Power Requirements 7 to 14 VDC (powers from flight battery)
Temperature Storage Temperature: -4 to 140°F / -20 to 60°C
Operating Temperature: 32 to 122°F / 0 to 50°C
Weight 6.5 oz / 185 g
Gimbal
Control Angle Accuracy ±0.02°
Steady Grip
Dimensions 8.8 x 3 x 7.1" / 223 x 75 x 181 mm
Weight Without Camera / Gimbal: 13.9 oz / 395 g
Video Transmitter
Frequency 5.8 GHz
Range Up to 984.3' / 300 m line-of-sight
Transmit Power 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum)
Flight Battery
Capacity 5400 mAh
Chemistry Lithium-polymer
Voltage 3S (11.1 V)
Charger
Model SC 3500-3 Balancing Smart Charger
Supported Chemistries Lithium-polymer
Charge Voltage 12.6 VDC; 3.5 A / 45 W maximum
Fuse 7.5 A
Power Requirements 10.5 to 15 VDC; 5 A (100 to 240 VAC adapter included)
Transmitter
Model ST10+ Personal Ground Station
Frequency Control Channels: 2.4 GHz
Video Receiver: 5.8 GHz
Channels 10
Flight Modes Smart
Angle
Home Modes
Operating System Android
Number of Channels 10
Range Control Signal: Up to 2624.7' / 400 m line-of-sight under optimal conditions
Display Size: 5.5"
Interface: Capacitive multi-touch
OSD Flight systems telemetry data can be viewed on-screen
Feedback Tactile (vibrating) and audible feedback
Power Requirements Built-in Battery:
3.6 V; 5200 mAh, 18.7, Wh
Charger 5 V USB charging (AC adapter included)
General
Dimensions Height: 9.4" / 240 mm
Width: 16.5" / 420 mm
Diagonal Length without Rotor Blades: 22.2" / 565 mm
Propeller/Main Rotor Diameter: 13" / 330 mm
Weight Without Battery and Payload: 2.5 lb / 1.1 kg
Packaging Info
Package Weight 24.5 lb
Box Dimensions (LxWxH) 19.0 x 19.0 x 13.0"
