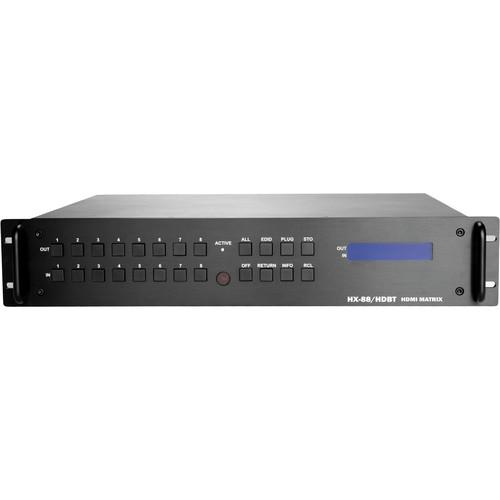

The ZIG-HX-88-HDBTCH 8x8 Modular HDMI HDbaseT Matrix Routing Switcher from Zigen is designed to route and extend high resolution digital video signals. This Matrix switcher supports up to eight HDMI input/output interfaces and eight RJ45 outputs over CAT5e. It is HDMI 1.4b compatible and supports resolutions up to 4k x 2k at 30 Hz and HDTV 1080p at 60 Hz. The HX-88 ensures simultaneous distribution of any input source signal to one or more HDCP compliant displays (all-to-one/one-to-all combination). It also features a memory control option which can save up to eight frequently used I/O configurations as presets. The switcher can be operated via the front panel, RS-232, IR, or Ethernet.
If you own a Zigen da & extender/repeater accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Zigen ZIG-HX-88-HDBTCH 8x8 Modular HDMI HDbaseT ZIG-HX-88-HDBTCH in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Zigen ZIG-HX-88-HDBTCH 8x8 Modular HDMI HDbaseT ZIG-HX-88-HDBTCH:
1 x RS-232 9-pin female, D Type 1 x RJ-45 LAN 2 x RS-485
Switches
1 x 2-pin DIP switcher 1 x 8-pin DIP switcher
Maximum Resolution
4k x 2k @ 30 Hz (8-bit)
TMDS
300 MHz highest frequency
Power
100 - 240 VAC, 50 / 60 Hz, internal
Supported HDMI Cable Length
32.8' (10.0 m) minimum
Cat-5e Cable Distance
328' (100 m) maximum
Baud Rate
9600 bps; 8 data bits, 1 stop bit, no parity
Ethernet Protocol
HTTP, DHCP, TCP/IP, ICMP (ping)
Mounting
2 RU rackmountable
Finish
Black aluminum
Dimensions (L x W x H)
13.1 x 19.0 x 3.4" (332.0 x 482.0 x 87.0 mm)
Weight
7.83 lb (4.25 kg)
