User manual for the 3D Systems CubePro 3D Printer 401733
The user manual for the 3D Systems CubePro 3D Printer 401733 provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - 3D Printers.

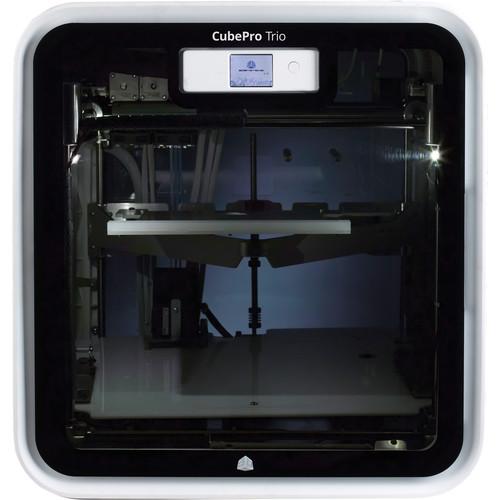

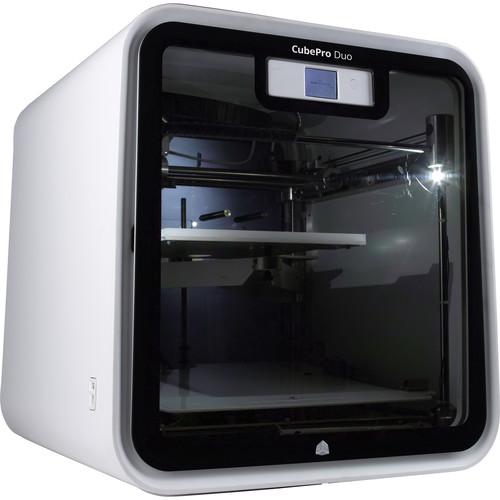

The CubePro from 3D Systems is a 3D printer capable of printing with ABS, PLA, and Nylon materials, at resolutions as fine as 70 microns. Design models up to 11.2 x 9.1 x 10.6" in volume, and the CubePro will build them by melting plastic in thin sheets, depositing layer upon layer until they form a three-dimensional object.
Filaments for the CubePro come in smart cartridges that detect the type and quantity of material in the cartridge, which prompts the CubePro to adjust printing settings accordingly.
Also included is 3D Systems' Cubify Invent software, which allows you to create and modify 3D designs in preparation for printing. You can also design your model in any other CAD software, because the CubePro software will convert your .stl file to the .cubepro extension that your CubePro will print. Transfer your .cubepro file onto the included USB stick and insert directly into your printer, or send it wirelessly via Wi-Fi from your desktop.
The fully-assembled CubePro comes with a white ABS cartridge, 25 free designs, and a USB stick to help you start printing right out of the box.
|
If you own a 3D Systems 3d printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the 3D Systems CubePro 3D Printer 401733 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the 3D Systems CubePro 3D Printer 401733:
| Print Technology | Plastic Jet Printing (PJP) | | Build Volume | 11.2 x 9.1 x 10.6" / 28.4 x 23.1 x 26.9 cm | | Layer Resolution (XY Axis) | 70 microns / 0.07 mm
200 microns / 0.2 mm
300 microns / 0.3 mm | | Z Axis Resolution | 100 microns / 0.1 mm | | Number of Extruders | 1 | | Extruder Nozzle Temperature | 536°F / 280°C | | Print Speed | Maximum: 15 mm/s | | Positioning Precision | X: 200 microns / 0.2 mm
Y: 200 microns / 0.2 mm | | Filament Diameter | 1.75 mm | | Filament Compatibility | ABS, Nylon, PLA | | Build Area | Enclosed | | Filament Spool Storage | Proprietary Cartridge | | Camera | No | | Scanner | No | | Composition | Not Specified By Manufacturer | | Heated | Not Specified By Manufacturer | | Leveling | Not Specified By Manufacturer | | Supported Wi-Fi Standards | Yes | | Mac OS X Compatibility | 10.8 and Above | | Power Requirements | 100 to 240 VAC/ | | Dimensions - (WxHxD) | 22.75 x 22.75 x 23.25" / 57.79 x 57.79 x 59.05 cm | | Weight | 90.7 lb / 41.14 kg | | Package Weight | 124.0 lb | | Box Dimensions (LxWxH) | 37.0 x 26.0 x 26.0" | |
The user manual for the 3D Systems CubePro 3D Printer 401733 can be downloaded in .pdf
format if it did not come with your new 3d printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other 3D Systems users keep a unique electronic library
for 3D Systems 3d printerss,
where you can use our link to download the user manual for the 3D Systems CubePro 3D Printer 401733.
The user manual lists all of the functions of the 3D Systems CubePro 3D Printer 401733,
all the basic and advanced features and tells you how to use the 3d printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from 3D Systems service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the 3D Systems CubePro 3D Printer 401733. User manuals are also
available on the 3D Systems website under Computers & Solutions - Printers & Accessories - 3D Printers.
