User manual for the 3DR LiveView FPV Kit for GoPro HERO3 / HERO3 3DR0417
The user manual for the 3DR LiveView FPV Kit for GoPro HERO3 / HERO3 3DR0417 provides
necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - 3DR Accessories.

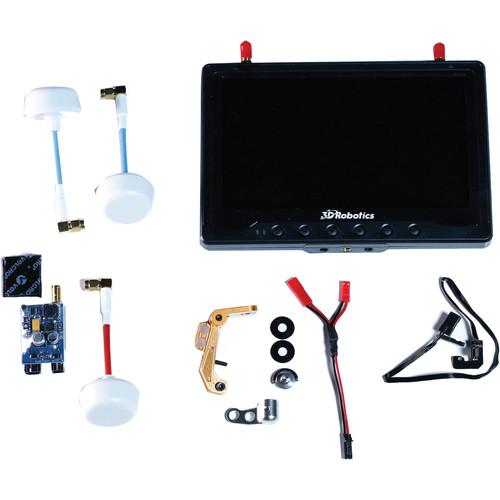

The LiveView FPV Kit for GoPro provides a video transmission and monitoring solution when using the GoPro HERO3 or HERO3+ with an IRIS+ or X8+ multi-rotor and a Tarot gimbal stabilizer. The kit includes a 5.8 GHz, 32-channel video transmitter, a 7" battery or AC powerable field monitor with built-in receiver, and installation hardware.
Designed with wireless video in mind, special signal processing in the monitor means the image won't cut to a "blue screen" if the signal gets weak. Instead you will continue to see an image, even if it becomes incredibly noisy. The 5.8 GHz receiver features 8 channels with 4 bands per channel for a total of 32 choices. Dual diversity technology means there are two antennas working simultaneously, while the receiver automatically switches to the one with the best signal for maximum performance.
The monitor and receiver both power from an included 1000 mAh LiPo battery, and there is a DC input accepting 7 to 28V external DC sources. A sun hood is included to help enhance visibility when working outdoors in bright sunlight.
|
If you own a 3DR 3dr accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the 3DR LiveView FPV Kit for GoPro HERO3 / HERO3 3DR0417 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the 3DR LiveView FPV Kit for GoPro HERO3 / HERO3 3DR0417:
| Screen Size | 7" | | Display Type | TFT LCD with LED backlight | | Resolution | 1024 x 600 | | Standard | NTSC / PAL | | Brightness | 300 cd/m2 | | Contrast Ratio | Horizontal: 140°
Vertical: 140° | | Video Output Level | 1.0 Vp-p typical, 75 ohm | | Audio Output Level | 1.0 Vp-p typical, 10 Kohm | | Inputs | 1 x HDMI 1.3 (type A) with audio support
1 x A/V input on RCA connectors | | Outputs | 2 x A/V output on RCA connectors | | Connectors | Antenna: SMA female, 50 ohm | | Mounting Interface | 1/4"-20 | | Power Requirements | External: 7 to 28 VDC; 1A or higher
Battery: 3S 11.1 VDC, 1000mAh LiPo battery | | Power Consumption | 7.8 W at 12 V | | Operating Temperature | 14 to 149°F / -10 to 65°C | | Dimensions | Main Body, Excluding Sun Hood: 7.2 x 5 x 0.8" / 183 x 126 x 19.5 mm
Battery, Excluding Projections: 4.1 x 3.4 x 0.3" / 105 x 87.5 x 6.7 mm | | Weight | 12.4 oz / 350 g
3.4 oz / 95 g | | Design | Auto-switching dual diversity | | Channels | 32 (4 bands x 8 channels) | | Working Frequencies | Bands A, B, C, and D Respectively:
CH1: 5865, 5733, 5705, 5740 MHz
CH2: 5845, 5752, 5685, 5760 MHz
CH3: 5825, 5771, 5665, 5780 MHz
CH4: 5805, 5790, 5645, 5800 MHz
CH5: 5785, 5809, 5885, 5820 MHz
CH6: 5765, 5828, 5905, 5840 MHz
CH7: 5745, 5847, 5925, 5860 MHz
CH8: 5725, 5866, 5945, 5880 MHz | | Sensitivity | -90 dBm ±1 dBm | | Frequency | 5.8 GHz | | Connectors | Antenna: 1 x SMA female
Video Input: Tarot GoPro Video Cable included | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 12.9 x 10.2 x 3.6" | |
