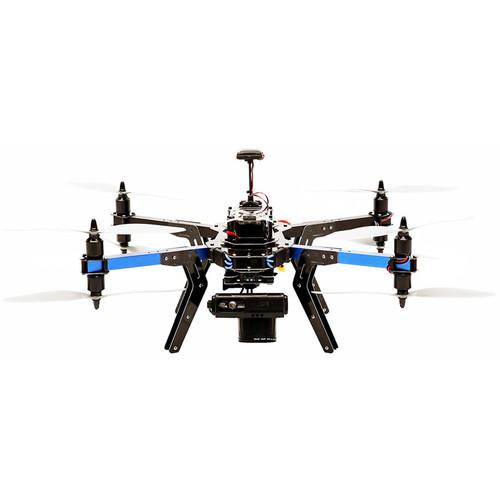

Create high resolution visual-spectrum aerial maps with the X8-M Octocopter from 3D Robotics. This semi-autonomous multi-rotor UAV features a Canon PowerShot S100 running customer software that is able to capture ground images with a resolution of 0.7" per pixel - much higher than comparable fixed-wing-based systems. With a flight time of up to 14 minutes, the X8-M is able to photograph an area of up to 25 acres per flight. The system comes ready-to-fly, meaning a Spektrum DX7s transmitter (radio controller), two flight batteries(LiPo charger available separately), and a custom-fitted case are all included. Because of its vertical takeoff and landing capability, the X8 can be deployed from sites with limited space.

So that you can compile the photos and manage associated data, Pix4Dmapper LT 3DR software for Windows comes included. The software will create georeferenced and orthorectified mosaics from the images, and can export the result - as well and geometric data - in a variety of formats. Industries that can benefit from this system include farming, construction, and conservation, as well as search and rescue and emergency response.

Note: This version of the X8-M features a 433 MHz telemetry radio for use in Europe. Aircraft used in the U.S. will require the 915 MHz radio instead. Users from other regions should consult local regulations to ensure compliance before purchasing.
If you own a 3DR aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the 3DR X8-M Octocopter for Visual-Spectrum Aerial Maps 3DR0124 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for 3DR X8-M Octocopter for Visual-Spectrum Aerial Maps 3DR0124Download user manual for 3DR X8-M Octocopter for Visual-Spectrum Aerial Maps 3DR0124
(PDF file, 9.07 MB)
Additional parameters of the 3DR X8-M Octocopter for Visual-Spectrum Aerial Maps 3DR0124:
Performance
Payload Capacity 6.4 oz / 181.4 g
Ground Sampling Distance Up to 0.7" per pixel / 2 cm per pixel
Area Coverage 25 acres / 0.1 km^2
Orthomosaic Accuracy 3 to 16' / 1 to 5 m
Maximum Wind Resistance 25 mph / 11 m/s
Flight Time Up to 14 minutes
Radio Range 3280.8' / 1000 m
Flight Control System
Model Pixhawk autopilot v2.4.5 system
ArduCopter 3.2 firmware
GPS 3DR u-blox GPS with Compass (LEA-6H module, 5 Hz update)
Telemetry Radio Model: 3DR Radio v2
Frequency: 433 MHz (for Europe)
Motors
Model SunnySky V2216-12 KV800 II
Stator Size 0.9 x 0.6" / 22 x 16 mm
Motor Velocity Constant 800 Kv
Propellers
Model 4 x APC Propeller 11x4.7 SF
4 x APC Propeller 11x4.7 SFP
Size 11 x 4.7" / 27.9 x 11.9 cm
Flight Battery
Configuration 4S
Voltage 14.8 VDC
Chemistry Lithium-polymer (LiPo)
Capacity 10,000 mAh
Maximum Discharge Rate 10 C
Dimensions 6.6 x 2.6 x 1.4" / 16.8 x 6.6 x 3.6 cm
Weight 1.8 lb / 803 g
Handheld Transmitter
Model FlySky FS-TH9X with FlySky FS-TH9X with FrSky telemetry module
Frequency 2.4 GHz
Imaging Camera
Model Canon PowerShot S100
Sensor 1/1.7" CMOS
Resolution Actual: 13.3 Megapixel
Effective: 12.1 Megapixel
File Formats Still Images: JPEG, RAW
Video: MPEG-4 AVC/H.264, MOV
Audio: Linear PCM

Note: Video clips are limited to 30 minutes maximum
Aspect Ratios 1:1, 3:2, 4:3, 4:5, 16:9
Video Standards NTSC/PAL
Lens Focal Length: 5.2 to 26 mm (35 mm equivalent: 24 to 120 mm)
Aperture: f/2.0 to 5.9
Optical Zoom: 5x
Digital Zoom: 4x
Optical Image Stabilization: Yes
Display 3.0" LCD Rear Screen (461,000 pixels)
Memory Card SD/SDHC/SDXC
Still Images per GB: 42 JPEGs at 12MP
Connectivity 1 x AV Output
1 x HDMI type C (Mini)
1 x USB 2.0
Operating Temperature 32 to 104°F / 0 to 40°C
Humidity: 10 to 90%
Battery NB-5L Rechargeable Lithium-Ion Battery Pack, 3.7VDC
Dimensions 3.9 x 2.3 x 1" / 99.1 x 59.4 x 26.7 mm
Weight 6.1 oz / 173 g (camera only)
System Requirements - Bundled Software
Operating System Windows 64-Bit: Vista, 7, 8, Server 2008, Server 2012
CPU Minimum: Dual-core
Recommended: Six-core i7 or Xeon, or better
RAM Minimum: 4 GB
Recommended: 32 GB or more (depending on complexity of dataset)
General
Frame Type X
Dimensions Aircraft: 13.7 x 20.1 x 11.8" / 34.8 x 51.1 x 30 cm
Case: 60.7 x 14.5 x 15.5" / 154.2 x 36.8 x 39.4 cm
Weight With Battery: 7.7 lb / 3.5 kg
