User manual 3M C1910PS 19" HD Dual-Touch Chassis Displays

Operating instructions and pdf manual for use - 3M C1910PS 19" HD Dual-Touch Chassis Displays User manual, User manual 3M C1910PS 19" HD Dual-Touch Chassis Displays, 3M, C1910PS, 19, HD, Dual-Touch, Chassis, Displays


User manual for 3M C1910PS 19" HD Dual-Touch Chassis Displays

3M C1910PS 19
  • Manufacturer: 3M
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your 3M
  • Settings and expert assistance
  • Contact 3M service
  • Troubleshooting
  • Warranty information
  • Price: 945 USD
We recommend checking out our discussion threads on the 3M C1910PS 19" HD Dual-Touch Chassis Displays, which address similar problems with connecting and setting up Computer Monitors 3M.



User manual for the 3M C1910PS 19" HD Dual-Touch Chassis Displays

The user manual for the 3M C1910PS 19" HD Dual-Touch Chassis Displays provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

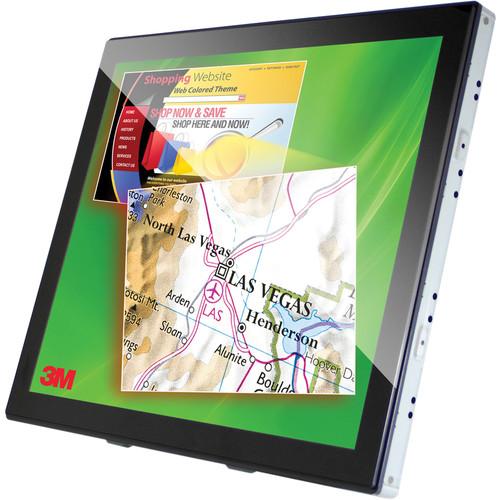

The C1910PS 19" HD Dual-Touch Chassis Displays from 3M features a flat front surface-ready design and is designed specifically for kiosk and enclosure integrations. The projected capacitive sensor allows the system to quickly and accurately track two simultaneous touches across the entire touch screen. The responsive, accurate, and easy-to-use dual-touch system enables program designers to migrate existing single touch applications to a gesture-based interface to create and deliver various user interactions such as pan, zoom and rotate.
If you own a 3M computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the 3M C1910PS 19" HD Dual-Touch Chassis Displays in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for 3M C1910PS 19Download user manual for 3M C1910PS 19" HD Dual-Touch Chassis Displays
(PDF file, 0.58 MB)
Additional parameters of the 3M C1910PS 19" HD Dual-Touch Chassis Displays:
Display
LCD Technology Twisted Nematic (TN)
Native Resolution 1280 x 1024 (maximum)
Display Area (W x H) 14.8 x 11.9" (37.6 x 30.1 cm)
Viewing Angle Horizontal/Vertical: 170/160° typical
Backlight CCFL
Aspect Ratio 5:4
Display Colors 16.7 million
Pixel Pitch 0.294 x 0.294 mm
Brightness 250 cd/m2 (typical)
With Touch Sensor: 225 cd/m2

Brightness measured on a display with 3M Projected Capacitive Touch sensor

Contrast Ratio 800:1 typical
Response Time Video: 5 ms (typical) gray to gray
Frequency Range Horizontal: 31.47 to 80 kHz
Vertical: 56 to 75 Hz high refresh rate
Connection VGA for video input
Control Type OSD
Touch Specifications
Number of Inputs 2 inputs
Touch Point Speed: <12 ms
Transmittance 90 ±5%
Input Type Finger, thin glove
Surface Anti-glare treatment
Communication USB
OS Support Windows 7/Vista/XP, Linux, Mac
Driver VISTA, XP, 2000, CE, XP embedded, Linux, Apple Mac OS
System Requirements
Connections USB port to connect the touch sensor cable
Graphics Video card and driver installed that supports the display's native video resolution
General
Approvals and Compliance FCC-B, CE, UL, RoHS
Power Supply External: 12 VDC
Power Consumption 25 W (typical)
VESA Pattern 100 x 100 mm
Operating Environment 32 to 104°F (0 to 40°C), 80% RH, non-condensing
Storage Environment -4 to 140°F (-20 to 60°C), 90% RH, non-condensing
Dimensions (W x H x D) 17.0 x 14.2 x 2.3" (43.3 x 36.0 x 5.8 cm)
Weight 18.1 lb (8.2 kg)
Packaging Info
Package Weight 18.1 lb
The user manual for the 3M C1910PS 19" HD Dual-Touch Chassis Displays can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other 3M users keep a unique electronic library for 3M computer monitorss, where you can use our link to download the user manual for the 3M C1910PS 19" HD Dual-Touch Chassis Displays.

The user manual lists all of the functions of the 3M C1910PS 19" HD Dual-Touch Chassis Displays, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from 3M service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the 3M C1910PS 19" HD Dual-Touch Chassis Displays. User manuals are also available on the 3M website under Computers & Solutions - Monitors & Displays - Computer Monitors.
