User manual A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH

Operating instructions and pdf manual for use - A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH User manual, User manual A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH, A-Neuvideo, 5.1, Channel, HDMI, Audio, Extractor, ANI-5.1CH,


User manual for A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.
A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH
  • Manufacturer: A-Neuvideo
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Embedders & De-Embedders
  • Safety instructions
  • Startup and operation of the embedders & de-embedders
  • Tips for setting up your A-Neuvideo
  • Settings and expert assistance
  • Contact A-Neuvideo service
  • Troubleshooting
  • Warranty information
  • Price: 60 USD
We recommend checking out our discussion threads on the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH, which address similar problems with connecting and setting up Embedders & De-Embedders A-Neuvideo.



User manual for the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH

The user manual for the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Embedders & De-Embedders.

This A-Neuvideo Audio Extractor works as a multi-format audio splitter for HDMI sources such as Blu-ray players and game consoles. It allows you to connect an HDMI source and route its audio signal to separate speaker systems simultaneously via S/PDIF and 3.5mm stereo audio outputs. It offers a choice between optical Toslink and digital coax RCA S/PDIF outputs. At the same time it allows the pass-through of the full HDMI signal — video with audio — via an HDMI output so you can connect to a TV.

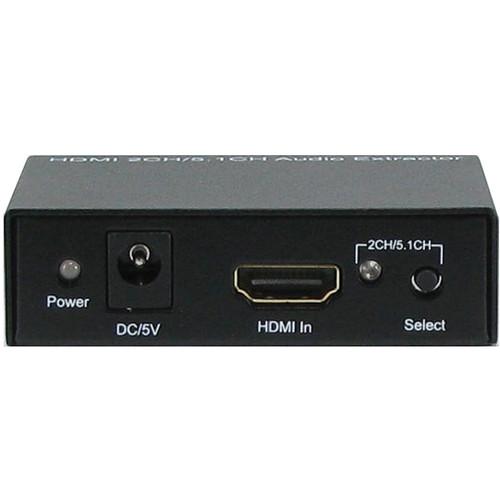

A 2-Ch/5.1-Ch selector switch on the front panel allows you to manually choose between 2-channel and 5.1-channel output if your HDMI source offers multi-channel audio. If the HDMI source only supports standard 2-channel L/R stereo audio, a 2-channel output will automatically be selected. An LED next to the selector switch lights up when the output is 2-channel.

A built-in digital-to-analog converter (DAC) allows the HDMI audio and the S/PDIF and stereo outputs to function at the same time. The HDMI video signal is passed through unchanged in up to 1080p60 Full HD resolution.
If you own a A-Neuvideo embedders & de-embedders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH:
Specifications
    Input 1x HDMI
    Output 1x HDMI
    1x Optical Toslink
    1x Digital Coaxial RCA
    1x Analog 3.5 mm Stereo
    Vertical Frequency Range 50/60 Hz
    Video Amplifier Bandwidth 2.25 Gbps / 225 MHz
    Resolutions Progressive (50 / 60 Hz): 480p, 576p, 720p, 1080p
    Interlaced (50/60 Hz): 480i, 576i, 1080i
    HDCP Compliant Yes
    Operating Temperature 32 to 158°F (0 to 70°C)
    Storage Temperature 14 to 176°F (-10 to 80°C)
    Operating Humidity 10 to 80% RH (no condensation)
    Storage Humidity 5 to 90% RH (no condensation)
    External Power Supply AC/DC Adapter (included): 110 VAC, North American Plug, 5 VDC, 2000 mA
    Power Consumption 2.5 W (max)
    Regulatory Approvals FCC, CE, UL (main unit and power supply)
    Dimensions Approx. 5 x 4 x 2" (12.7 x 10.2 x 5 cm) (without rack ears)
    Packaging Info
    Package Weight 0.85 lb
    Box Dimensions (LxWxH) 6.6 x 4.8 x 2.4"
    The user manual for the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH can be downloaded in .pdf format if it did not come with your new embedders & de-embedders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other A-Neuvideo users keep a unique electronic library for A-Neuvideo embedders & de-embedderss, where you can use our link to download the user manual for the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH.

    The user manual lists all of the functions of the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH, all the basic and advanced features and tells you how to use the embedders & de-embedders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from A-Neuvideo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the A-Neuvideo 5.1 Channel HDMI Audio Extractor ANI-5.1CH. User manuals are also available on the A-Neuvideo website under Professional Video - Signal Processing & Distribution - Embedders & De-Embedders.
