User manual Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003

Operating instructions and pdf manual for use - Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003 User manual, User manual Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003, Acer, B346C, 34, Ultra-Wide, LED, Backlit, IPS, UM.CB6AA.003,


User manual for Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003

Acer B346C 34
  • Manufacturer: Acer
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Acer
  • Settings and expert assistance
  • Contact Acer service
  • Troubleshooting
  • Warranty information
  • Price: 589 USD

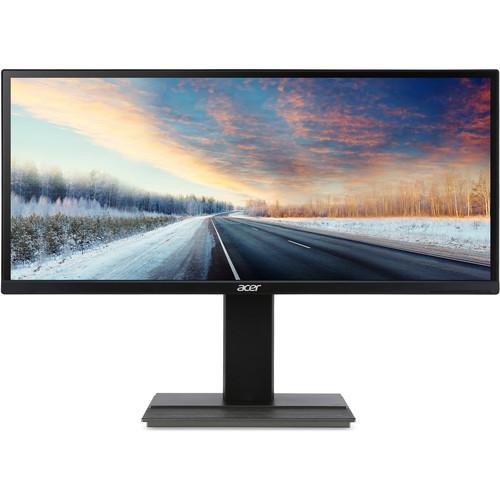

Acer B346C 34 Acer B346C 34
Click to enlarge image

We recommend checking out our discussion threads on the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003, which address similar problems with connecting and setting up Computer Monitors Acer.



User manual for the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003

The user manual for the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

With a 2560 x 1080 Full HD resolution, the B346C 34" Ultra-Wide LED Backlit IPS Monitor from Acer provides a crisp clear picture on an ultra-wide display. The enhanced 21:9 aspect ratio provides increased screen space, allowing one to multitask with ease, watch a video while writing an email, and viewing a web page all at the same time. Accompanying the increased screen space is a 1,000:1 contrast ratio allowing for deeper dark and brighter light colors creating a more dynamic viewing experience. For increased color accuracy, Acer has incorporated an 8-bit color table complete with 100% coverage of the sRGB color space.

For an improved multimedia experience, this Acer monitor features a 6 ms response time to greatly reduce ghosting when watching fast moving video or movies. This ultra-wide display can also be viewed from nearly any angle with support for 178° horizontal and vertical viewing angles. Setup is simple with DVI, HDMI, and DisplayPort 1.2 inputs, making this monitor compatible with a wide range of computer configurations. The included HDMI input features MHL support designed to stream content from compatible mobile devices. Once configured, you can tilt, swivel, and adjust the height of the display for a more comfortable viewing experience.
If you own a Acer computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Acer B346C 34Download user manual for Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003
(PDF file, 2.55 MB)
Additional parameters of the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003:
Specifications
Display Size 34" / 86.36 cm
Pixel Pitch 0.312 mm
Active Display Area 31.5 x 13.19" / 800 x 335 mm
Resolution 2560 x 1080 @ 60 Hz
Aspect Ratio 21:9
Frequency Horizontal
HDMI: 15~75 KHz
DP: 15~99 KHz
DVI: 30~99 KHz
Vertical
HDMI: 23-76 Hz
DP: 23-76 Hz
DVI: 56~76 KHz
Panel Technology IPS
Backlight Technology LED
Response Time 6 ms (GtG)
Contrast Ratio Static: 1,000:1
Dynamic: 100,000,000:1
Brightness 300 cd/m²
Viewing Angles (H/V) 178°/178°
Colors Supported 16.7 million
Color Tables 8-bit
Color Accuracy 100% sRGB
Input Signals DVI (Dual Link)
HDMI w/MHL
DisplayPort (v1.2)
SPK
USB 3.0 Hub (1 x up / 4 x down)
Audio in
Audio out
VESA Wall Mounting 100 x 100 mm
Speakers 2 x 3 W
Power Switch Yes
Power Supply 100-240 VAC (internal)
Power Consumption ENERGY STAR Off: 0.33 W (typical)
ENERGY STAR Sleep: 0.43 W (typical)
ENERGY STAR On: 43.00 W (typical)
MTBF 30,000 h
Tilt -5 ~ 25°
Swivel ±60°
Height Adjustment 5.91" / 150 mm
TCO Compliant 6.0
ENERGY STAR Certified Yes
EPEAT Gold Yes
Dimensions With Stand: 32.6 x 17.3 - 23.2 x 10.5" / 82.7 x 43.9 - 58.9 x 26.7 cm
Without Stand: 32.6 x 14.7 x 2.7" / 82.7 x 37.4 x 6.9 cm
Weight With Stand: 23.35 lb / 10.6 kg
Without Stand: 14.1 lb / 6.4 kg
Packaging Info
Package Weight 31.0 lb
Box Dimensions (LxWxH) 36.8 x 26.0 x 9.5"
The user manual for the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003 can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Acer users keep a unique electronic library for Acer computer monitorss, where you can use our link to download the user manual for the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003.

The user manual lists all of the functions of the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Acer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Acer B346C 34" Ultra-Wide LED Backlit IPS UM.CB6AA.003. User manuals are also available on the Acer website under Computers & Solutions - Monitors & Displays - Computer Monitors.
