User manual ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51

Operating instructions and pdf manual for use - ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51 User manual, User manual ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51, ACTi, D51, 1MP, PoE, Indoor, Dome, Camera, with, Fixed, Lens,


User manual for ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51

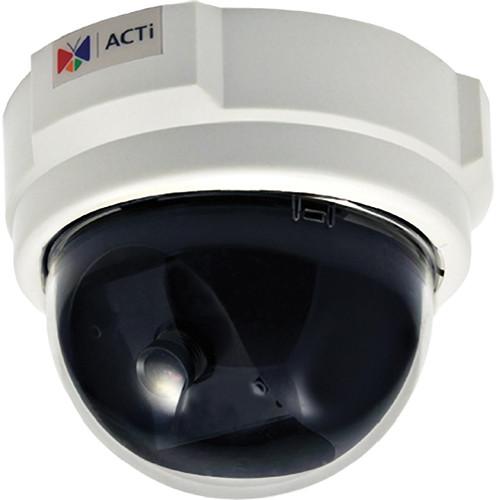

ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51
  • Manufacturer: ACTi
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your ACTi
  • Settings and expert assistance
  • Contact ACTi service
  • Troubleshooting
  • Warranty information
  • Price: 161 USD
We recommend checking out our discussion threads on the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51, which address similar problems with connecting and setting up Wired IP Cameras ACTi.



User manual for the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51

The user manual for the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The D51 1MP PoE Indoor Dome Camera with Fixed Lens features a progressive scan CMOS image sensor to deliver high-quality images at a resolution of up to 1280 x 720 pixels.

The Motion Detection feature triggers an alarm when movement is detected in a designated portion of the video display. The privacy masking function (4 configurable regions) allows you to block certain portions of an image for security reasons.
If you own a ACTi wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51Download user manual for ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51
(PDF file, 1.12 MB)
Additional parameters of the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51:
Specifications
    Device Type Fixed Indoor Dome Camera
    Image Sensor Progressive Scan CMOS
    Day/Night No
    Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2,400°K)
    Mechanical IR Cut Filter No
    IR Sensitivity Range No
    IR LED No
    Electronic Shutter 1/5 to 1/2,000 sec (Manual / Auto mode)
    Lens
    Focal Length / Aperture Fixed focal, f3.6 mm / F2.0
    Iris Fixed iris
    Focus Fixed focus
    Lens Mount Board Mount
    Horizontal Viewing Angle 61°
    Viewing Angle Adjustment Pan: 0 to 330°; Tilt: 0 to 180°
    Video
    Compression H.264 HP, MJPEG
    Maximum Frame Rate vs. Resolution 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
    Multi-Streaming Simultaneous dual steams based on 2 configurations
    Bit Rate 28 Kbps to 6 Mbps (per stream)
    Bit Rate Mode Constant, Variable
    Image Enhancement Basic WDR; white balance: automatic, hold, and manual; Brightness; Contrast; Auto gain control; Digital noise reduction; Flicker-less
    Privacy Mask Type 4 configurable regions
    Text Overlay User-defined text on video
    Image Orientation Image flip and mirror
    Network
    Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
    Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
    Security IP address filtering; HTTPS encryption; Password-protected user levels; IEEE 802.1X network access control
    Alarm
    Alarm Triggers Video motion detection (3 regions)
    Alarm Response Notify control Center; Change camera settings; Command other devices; email notification with snapshots; Upload video, snapshot to FTP server
    General
    Power Source and Consumption PoE Class 2 (IEEE802.3af) / 3.79 W
    Mount Type Surface, Pendant, Wall, Corner, Pole, Flush
    Operating Temperature 14 to 122°F (-10 to 50°C)
    Operating Humidity 10 to 85% RH
    Approvals CE, FCC
    Integration
    Unified Solution Fully compatible with ACTi software
    ISV Integration ISV Integration
    Firmware Access Browser Microsoft Internet Explorer 6.0 or newer
    Dimensions (Ø x H) 5.12 x 3.90" (128 x 99 mm)
    Weight 0.64 lb (0.29 kg)
    Packaging Info
    Package Weight 1.1 lb
    Box Dimensions (LxWxH) 6.8 x 6.8 x 6.7"
    The user manual for the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ACTi users keep a unique electronic library for ACTi wired ip camerass, where you can use our link to download the user manual for the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51.

    The user manual lists all of the functions of the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ACTi service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens D51. User manuals are also available on the ACTi website under Surveillance - Surveillance Video - Wired IP Cameras.
