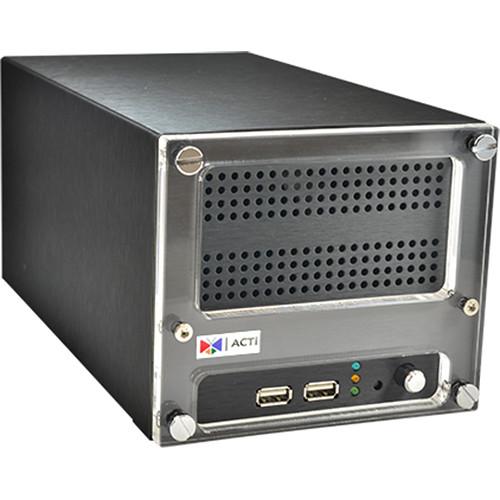

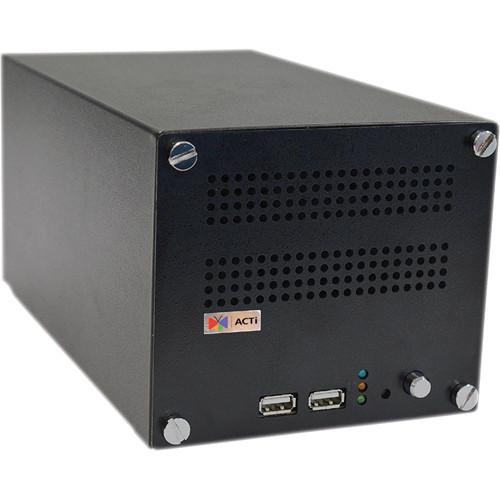

ACTi ENR-130 16-Channel 2-Bay H.264 Desktop ENR-130-2TB ACTi ENR-130 16-Channel 2-Bay H.264 Desktop ENR-130-2TB ACTi ENR-130 16-Channel 2-Bay H.264 Desktop ENR-130-2TB
Click to enlarge image

We recommend checking out our discussion threads on the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop ENR-130-2TB, which address similar problems with connecting and setting up Network Video Recorders (NVRs) ACTi.



User manual for the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop ENR-130-2TB

The user manual for the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop ENR-130-2TB provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

The ENR-130 16-Channel 2-Bay H.264 Desktop Standalone NVR from ACTi is a compact and reliable multi-channel standalone unit that features a stable embedded Linux operating system and H.264 compression technology. The recorder supports megapixel resolution H.264 streaming from up to 16 cameras, an HDMI output for local display, PTZ control, scheduled / event-triggered / event speed-up recording, event management, synchronized playback, time / event-based playback search, and video bookmarks.
If you own a ACTi network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop ENR-130-2TB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ACTi ENR-130 16-Channel 2-Bay H.264 Desktop ENR-130-2TB:
Specifications
General
Maximum Number of Clients 1 local, 2 remote
Maximum Number of Cameras 16
Video Compression H.264
Audio Compression Format PCM, G.711 a-law/u-law (Only supports local recording and remote live view/playback, does not support local live view/playback)
Maximum Display Resolution 1920 x 1080
Live View
Display Layout Mode 1, 2, 4, 6, 8, 9, 10, 12, 13, 16
Layout Tour Automatic switch between different display layouts
Digital Zoom Zoom in digitally by mouse
Event Display status for network/record/motion/DI/video loss upon every video region
PTZ
Control Pan, tilt, and zoom controls; speed control
Preset Points and Tours Go/set preset points
Number of Preset Points 32
Joystick USB based joystick supported
Default Protocol URL command
Recording
Scheduled Recording Record video with user defined schedule
Event Recording Record video when the alarm event is triggered, including the pre-event buffered video clip
Triggers & Events Record I frame only in normal status, and record full frames when the alarm event is triggered
Manual Recording Instant recording upon mouse click
Recording Frame Rate Maximum 480 fps in total; Maximum 30 fps per camera
Maximum Recording Throughput 48 Mb/s
Storage
Interface Serial ATA
HDD 2 x 4 TB supported (2 TB storage included)
HDD Bay Maximum 2 disks
Interfaces
USB 2 x USB 2.0 (USB 1.1 not supported)
Ethernet Port LAN1: 1000Base-T ; LAN2: 10/100Base-T (WAN port)
Port HDMI
Search & Playback
Video Search Time Based Video Search: Search video recordings by time, channel, or bookmark
Event Based Video Search: Search event triggered video recordings, event response video loss
Playback Control Forward and backward playback with speeds 1/2x-1x-32x; pause; stop
Synchronized Playback 16 channels
Snapshot Create snapshot from playback for export
Cropping Crop a short video clip from long recording file and save it as an independent file; video clip length: 1 to 30 min
Video Export Export video clips in AVI/RAW format via USB storage
Event Management
Event Trigger Video motion detection; External device through digital input; Network loss and recovery
Event Response Record video; Play alert beep; Activate external device through digital output; E-mail notification with snapshots; Enlarge; Video loss; Go to PTZ preset point
System
Upgrades FW Upgrade via USB storage
Configuration Configuration backup/restore via USB storage
Permission Control Multi-group/users, liveview/playback/setup/remote level permission
Operating System Embedded Linux
System Status Monitor Real-time status reports on remote browser
Language Multi-language support
Minimum System Requirements
CPU Intel Core 2 Quad 2.66 GHz
RAM 4 GB
Network Ethernet (1000 Base-T recommended)
Operating System Windows 7 and Windows 8 (All versions)
Display Resolution 1080p
Browser Internet Explorer 9.0 or 10.0
Remote Access
Mobile Client Program Mobile device application (Mobile client!) supporting live view, NVR layouts, PTZ control, event or time based search and playback
Supported devices: iPhone, iPad, iPod; Android devices (Live view)
Electrical
Power Source 12 VDC
Power Consumption 22 W
Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); Adapter: CE, FCC, UL, PSE, Efficiency Level V
Unified Solution Fully compatible with ACTi cameras, encoders and CMS V2.0
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 10 to 85% RH
Physical
Dimensions (W x H x D) 5.3 x 4.8 x 9.9" (135.0 x 121.0 x 251.0 mm)
Weight 2.91 lb (1.32 kg)
