User manual AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P

Operating instructions and pdf manual for use - AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P User manual, User manual AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P, AG, Neovo, SX-19P, Plus, 19, LCD, Surveillance, Monitor, SX-


User manual for AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

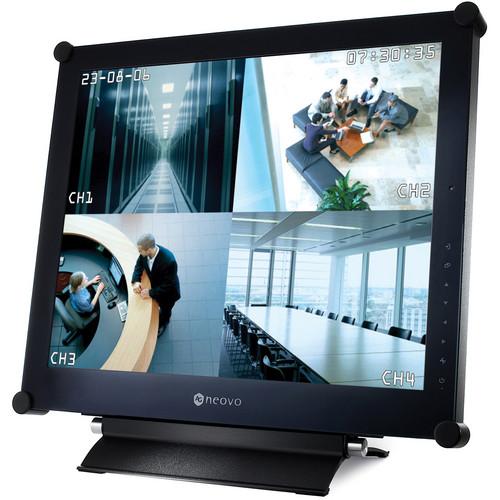

AG Neovo SX-19P Plus 19
  • Manufacturer: AG Neovo
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Surveillance Monitors
  • Safety instructions
  • Startup and operation of the surveillance monitors
  • Tips for setting up your AG Neovo
  • Settings and expert assistance
  • Contact AG Neovo service
  • Troubleshooting
  • Warranty information
  • Price: 590 USD
We recommend checking out our discussion threads on the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P, which address similar problems with connecting and setting up Surveillance Monitors AG Neovo.



User manual for the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P

The user manual for the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

The AG Neovo SX-19P Plus 19" LCD Surveillance Monitor incorporates many features and functions essential to the security industry. In addition to its durable metal cabinet, this monitor features a NeoV Optical Glass front screen that resists scratches and impact. Smart Omni Viewer technology provides a number of viewing options including PIP (Picture in Picture), PAP (Picture and Picture), and the ability to freeze or rotate an image 180 degrees.

This monitor offers a high resolution of 1280 x 1024, a crisp contrast ration of 1000:1, and a superior brightness of 250 cd/m2. Built-in image enhancing functions can be used to further improve image quality and that way help bring out important details of a scene.

With a full complement of PC and video inputs, this monitor offers compatibility with a range of computers, cameras, and DVRs. Support for NTSC, PAL, and SECAM video standards means that this monitor can be used in any country. An EcoSmart sensor function will auto adjust brightness for ultra low power consumption while Anti-Burn-in technology prevents an image from becoming etched on the screen. Both are important features in security environments where a monitor typically stays on for long time periods. There is also a DC output for powering peripheral devices directly from the monitor.
If you own a AG Neovo surveillance monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AG Neovo SX-19P Plus 19Download user manual for AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P
(PDF file, 2.22 MB)
Additional parameters of the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P:
Specifications
    LCD Size 19"
    Video System NTSC/PAL/SECAM
    Resolution SXGA 1280 x 1024 (video resolution: 600 TVL NTSC / 6245 TVL PAL)
    Pixel Pitch 0.294mm
    Response Time 3ms (GTG)
    Viewing Angle 160°/160° (H/V)
    Contrast Ratio 1000:1
    Brightness 250 cd/m2
    Display Colors 16.7M
    Panel Life 50,000 hrs (Minimum)
    Inputs PC Analog: D-Sub via DVI-VGA cable
    PC Digital: 29-Pin DVI-I
    Video: BNC x2 (looping)
    Video: S-Video x1
    Audio In: 3.5mm stereo x1
    Audio Out: 3.5mm stereo x1
    Speaker 1.5W x2
    Tilt Not specified
    Mount VESA (100 x 100 mm & 75 x 75 mm)
    Power Requirements 100-240VAC (12VDC power output to external device)
    Power Consumption 34W
    Dimensions (WxHxD) 17.5 x 16.5 x 6.9" (445 x 420 x 175mm)
    Weight 16.3 lbs (7.4kg)
    Packaging Info
    Package Weight 20.5 lb
    Box Dimensions (LxWxH) 21.6 x 20.6 x 8.9"
    The user manual for the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P can be downloaded in .pdf format if it did not come with your new surveillance monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AG Neovo users keep a unique electronic library for AG Neovo surveillance monitorss, where you can use our link to download the user manual for the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P.

    The user manual lists all of the functions of the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P, all the basic and advanced features and tells you how to use the surveillance monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AG Neovo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AG Neovo SX-19P Plus 19" LCD Surveillance Monitor SX-19P. User manuals are also available on the AG Neovo website under Surveillance - Surveillance Video - Surveillance Monitors.
