User manual for the Aiphone 822202 Two-Conductor Shielded Wire - 82220210C
The user manual for the Aiphone 822202 Two-Conductor Shielded Wire - 82220210C provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Bulk Cable.

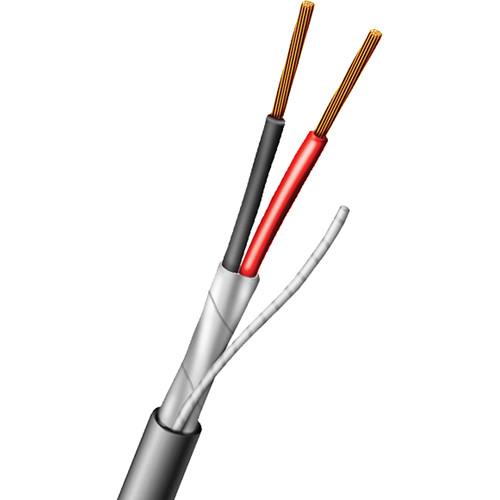

The 1000 foot 822202 Two-Conductor Shielded WireWire from Aiphone is a 2-conductor, 22 AWG Mylar shielded bulk cable, and is technically matched for use with the company's intercom systems. Utilizing the correct cable helps ensure proper system performance.
|
If you own a Aiphone bulk cable and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Aiphone 822202 Two-Conductor Shielded Wire - 82220210C in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Aiphone 822202 Two-Conductor Shielded Wire - 82220210C:
| Conductor | 22 AWG
7-strand
Bare copper | | Insulation | Material: Color-coded polyvinylchloride
Wall Thickness: 0.007" | | Assembly | Lay Length: 1.5"
Shield: Aluminum Mylar tape - 100% coverage
Drain: 24 AWG 7-strand tinned copper (TAC) wire | | Jacket | Material: Polyvinylchloride
Wall Thickness: 0.015"
Diameter: Nominal 0.118"
Color: Gray
Weight: 11 lb (5 kg)
Ripcord: Yes | | Electrical Characteristics | Capacitance: 44.65 pF/ft
D.C. Resistance: 17.5 Ω per 1000' (305 m) @ 68°F (20°C) | |
The user manual for the Aiphone 822202 Two-Conductor Shielded Wire - 82220210C can be downloaded in .pdf
format if it did not come with your new bulk cable, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Aiphone users keep a unique electronic library
for Aiphone bulk cables,
where you can use our link to download the user manual for the Aiphone 822202 Two-Conductor Shielded Wire - 82220210C.
The user manual lists all of the functions of the Aiphone 822202 Two-Conductor Shielded Wire - 82220210C,
all the basic and advanced features and tells you how to use the bulk cable.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Aiphone service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Aiphone 822202 Two-Conductor Shielded Wire - 82220210C. User manuals are also
available on the Aiphone website under Pro Audio - Installation Sound - Bulk Cable.
