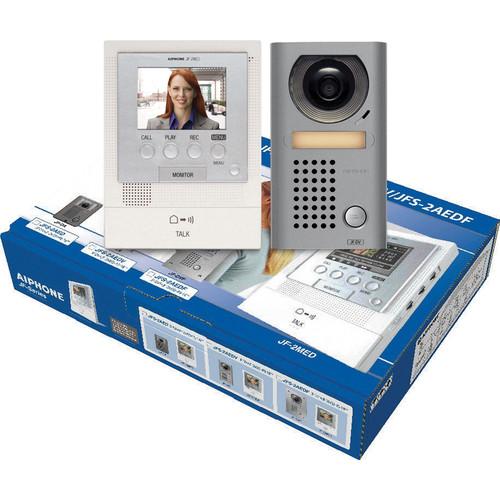

The JFS-2AEDV Hands-Free Color Video Intercom System from Aiphone consists of the JF-2MED Inside Master Station, the vandal proof JFS-2AED:V:JF-DV Flush Mount Color Video Door Station, and the PS-1820UL Power Supply.

The JF-2MED Inside Master Station is a hands-free color video master monitor that allows connection of up to 2 video door stations and 2 additional sub monitors. The unit features a 3.5" TFT color monitor, a TALK button for PTT or VOX communication, a door-release button, call-in LEDs, door chime and communication volume controls, and brightness control. The unit features a built-in picture memory unit that records up to 400 images of visitors. The voice memo feature on the JF-2MED unit allows users to record up to three 10-second messages for replay at a later time.
If you own a Aiphone intercoms kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aiphone JFS-2AEDV JFS Enhanced Boxed Sets JFS-2AEDV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aiphone JFS-2AEDV JFS Enhanced Boxed Sets JFS-2AEDV:
Specifications
    Master Monitor Station
    Monitor 3.5" (8.9 cm) direct view TFT color LCD
    Power Source 18 VDC
    Communication Hands-Free Mode: Approximately 60 sec
    PTT Mode: Press-to-Talk, release to listen, approximately 60 sec
    Capacity 2 doors, 3 monitors
    Call Alerts Chime and image, approximately 45 sec
    Memory Picture Memory:
    Record: Maximum 50 images (8 pictures/image, 1 shot/sec)
    Save: Maximum 10 recorded pictures
    Memo Voice Memo: Record maximum 3 voice memos (maximum approximately 15 seconds per memo)
    Entrance Message for Entrance: Record maximum 2 messages (maximum approximately 10 seconds per message)
    Wiring Door to Master: 2-conductor, mid cap, solid, non-shielded
    Master to Sub: 4-conductor, mid cap, solid, non-shielded
    Distance Door to master, 330.00' (100.58 m)
    Master to Farthest Sub: 330.00' (100.58 m)
    Scanning 525 lines
    Contact 24 VAC/VDC, 0.5 A (N/O dry closure contact L, L)
    Current Consumption 400 mA maximum
    Operating Temperature 32 to 104°F (0 to 40°C)
    Dimensions (H x W x D) 8.3 x 5.3 x 7.2" (209 x 135 x 5.5 mm)
    Weight JD-DV: 1.3 lb (600 g)
    Video Door Station
    Camera CCD camera with 525 scanning lines
    Minimum Illumination 5 lux at 1' (30 m)
    Viewing Area Night Viewing: Up to 1.0' (0.3 m) from the camera with white LED projected; background beyond 1.0' (0.3 m) cannot be seen
    Dimensions Door Station:8.3 x 5.3 x 7.2" (209 x 135 x 5.5 mm)
    Backbox: 7.1 x 4.3 x 1.8" (18.0 x 11.0 x 4.5 cm)
    Weight Door Station: 0.46 lb (0.21 g)
    Back Box: 0.95 lb (0.43 kg)
    Power Supply
    Power Source 100 to 240 VAC, 50/60 Hz
    Power Consumption 45 W, 75 to 95 VA
    Secondary Voltage Output Voltage: 18 VDC
    Output Current Secondary: 2 A
    Cable Requirements Rating: 125 V, 2 A (For use with 100 to 125 VAC)
    250 V, 2 A (For use with 200 to 240 VAC)

    Cord Length: Minimum 6.0' (1.8 m), maximum 6.6' (2.0 m)
    Type: Must comply with requirements set out by safety approval/certification organizations
    AC Cord Inlet: Specified EN60320 or equivalent
    Employ a plug in shape and ratings matched with the AC outlet to be used

    Nominal Voltage and Current Rating: 120 V, 60 Hz, 2 A (minimum); 240 V, 60 Hz, 2 A (minimum)
    Ambient Temperature 32 to 104°F (0 to 40°C)
    Dimensions 6.56 x 3.56 x 2.00" (16.70 x 9.00 x 5.20 cm)
    Weight 0.95 lb (0.43 kg) excluding AC cord
    Packaging Info
    Package Weight 5.85 lb
    Box Dimensions (LxWxH) 17.3 x 12.0 x 3.3"
