User manual for the Aiphone JKS-IPEV Hands-Free Color Video Intercom over JKS-IPEV

The user manual for the Aiphone JKS-IPEV Hands-Free Color Video Intercom over JKS-IPEV provides necessary instructions for the proper use of the product Surveillance - Intercoms - Intercoms Kits.

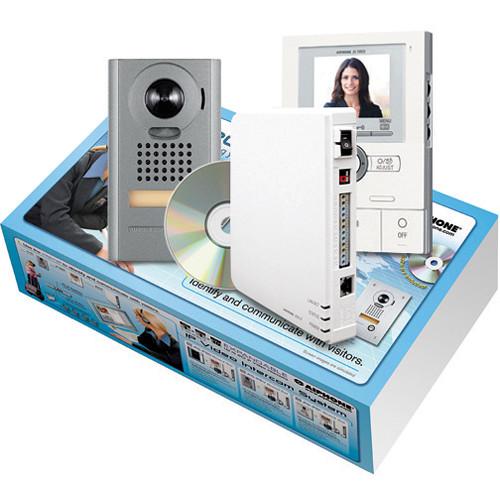

The JKS-IPEV Hands-Free Color Video Intercom over IP Adapter Set from Aiphone allows you to identify and communicate with visitors over the internet. This set includes the JKW-IP Network Adapter that enables remote operations over an IP network, JK-DV Surface Mount Door Station, JK-1MED Video Master Station with Picture Memory, UL-listed PS-1820UL Power Supply, and the required software.
If you own a Aiphone intercoms kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aiphone JKS-IPEV Hands-Free Color Video Intercom over JKS-IPEV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aiphone JKS-IPEV Hands-Free Color Video Intercom over JKS-IPEV:
Specifications
    • JK-DV Surface Mount Weather- & Vandal-Resistant PTZ Color Video Door Station
      Power Source 18 VDC
      Image Sensor Complementary metal-oxide semiconductor (CMOS)
      Scanning 525 lines
      Minimum Illumination 5 lux at 1.64' (50.00 cm) distance
      Nightview Up to 1.05' (0.32 m) from camera, with white LED projected, background beyond 1.05' (0.32 m) cannot be seen
      Wiring Door to master: 2-conductor, mid cap, solid, non-shielded Master to sub: 4-cond., mid cap, solid, non-shielded
      Distance Door to farthest master/sub master: 165.00' (50.29 m) 22 AWG, 330' (100.58 m) 18 AWG
      Master to IER-2: 245.00' (74.67 m) 22 AWG, 490.00' (149.35 m) 18 AWG
      Operating Temperature 14 to +140°F (-10 to +60°C)
      Dimensions (H x W x D) 6.81 x 3.85 x 1.16" (173.00 x 98.00 x 29.50 mm)
      Weight 1.43 lb (650.00 g)
      Packaging Info
      Box Dimensions (LxWxH) 9.5 x 6.7 x 3.3"
    • JK-1MED Master Monitor Station with Picture Memory for JK Series Hands-Free Color Video Intercom System
      Power Source 18 VDC, PS-1820UL recommended
      Communication Hands-free (VOX) after talk button is pressed once, or push-to-talk
      Capacity 1 door, 2 monitors
      Wiring 2-conductor, PE insulation
      Distance 330.0' (100.5 m) from door to farthest monitor
      Channel Single channel
      Operating Temperature 32 to 104°F (0 to 40°C)
      Dimensions (H x W x D) 7.31 x 5.31 x 1.06" (185.00 x 135.00 x 27.00 mm)
      Weight 0.86 lb (0.39 kg)
      Packaging Info
      Box Dimensions (LxWxH) 9.8 x 6.4 x 2.2"
    • JKW-IP IP Video Intercom Adapter (White)
      System Requirements
      OS Windows XP Home / Professional (SP3) Windows Vista Ultimate / Home / Business / Enterprise (SP1)
      Processor 2 GHz or faster
      RAM 1 Gb or more
      Hard Disk Capacity 10 MB (additional space is required for recording)
      Sound Card 8-bit full duplex, direct sound compatible
      Display 1024 x 768 or greater
      Run Time Microsoft(R).NET Framework 2.0 or later
      Network 10BASE-T/100BASE-TX Ethernet
      Protocol TCP/IPv4, UDP/IPv4, SIP, Others
      Bandwidth 320k to 8 MB/s (per IP Video Intercom Adapter)
      Language English, French, Spanish, German, Dutch, Italian, Japanese
      Internet Explorer Internet Explorer 6.0 or later (with Internet Options SSL 3.0 enabled)
      Adapter
      Power 18 VDC, share the PS-1820UL Power Supply from the JK master

      PS-1820UL Power Supply sold separately

      Current Consumption Standby: 110 mA
      Maximum: 200 mA
      Communication Hands-free / priority transmission
      Image Format JPEG
      Image Resolution 320 x 240 (QVGA)
      Network Interface 10BASE-T / 100BASE-TX Ethernet
      Network Protocol TCP/IP, UDP/IP, and SIP
      Bandwidth 320 K to 8 mb/s
      Operating Temperature 32 to 104°F (0 to 40°C)
      Dimensions (H x W x D) 7.9 x 5.9 x 1.4" (20.0 x 15.0 x 3.5 cm)
      Weight Approximately 13.0 oz (370.0 g)
    • PS-1820UL Power Supply (18 VDC)
      Power Source 100 to 240 VAC, 50/60 Hz
      Power Consumption 45 W, 75 to 95 VA
      Secondary Voltage Output Voltage: 18 VDC
      Output Current Secondary: 2 A
      Cable Requirements Rating: 125 V, 2 A (for use with 100 to 125 VAC), 250 V, 2 A (for use with 200 to 240 VAC)

      Cord Length: Minimum 6.0' (1.8 m), maximum 6.6' (2.0 m)

      Type: Must comply with requirements set out by safety approval/certification organizations

      AC Cord Inlet: Specified EN60320 or equivalent

      Employ a plug in shape and ratings matched with the AC outlet to be used

      Nominal Voltage and Current Rating: 120 V, 60 Hz, 2 A (minimum); 240 V, 60 Hz, 2 A (minimum)

      Ambient Temperature 32 to 104°F (0 to 40°C)
      Dimensions 6.56 x 3.56 x 2.00" (16.70 x 9.00 x 5.20 cm)
      Weight 0.95 lb (0.43 kg) excluding AC cord
      Packaging Info
      Box Dimensions (LxWxH) 8.1 x 5.4 x 3.0"
    The user manual for the Aiphone JKS-IPEV Hands-Free Color Video Intercom over JKS-IPEV can be downloaded in .pdf format if it did not come with your new intercoms kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Aiphone users keep a unique electronic library for Aiphone intercoms kitss, where you can use our link to download the user manual for the Aiphone JKS-IPEV Hands-Free Color Video Intercom over JKS-IPEV.

    The user manual lists all of the functions of the Aiphone JKS-IPEV Hands-Free Color Video Intercom over JKS-IPEV, all the basic and advanced features and tells you how to use the intercoms kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Aiphone service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Aiphone JKS-IPEV Hands-Free Color Video Intercom over JKS-IPEV. User manuals are also available on the Aiphone website under Surveillance - Intercoms - Intercoms Kits.
