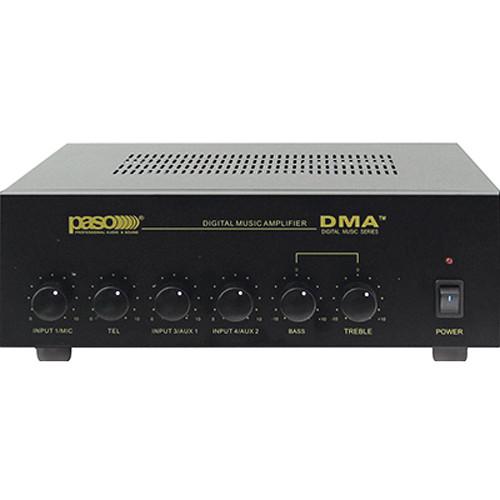

The Aiphone PASO DMA2060 Paging Amplifier is a 60 Watt, four zone amplifier with four channel inputs and two zone outputs.
If you own a Aiphone paging & music and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aiphone PASO DMA2060 Paging Amplifier DMA2060 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aiphone PASO DMA2060 Paging Amplifier DMA2060:
Speaker Power 60 W RMS
Distortion 0.01% THD at 1 kHz rated power
Frequency Response 20 Hz - 30 kHz ± 2 dB
Inputs Input 1: mic electronically balanced, transformer balanced with optional equipment
Input 2: telephone transformer balanced
Input 3: mic electronically balanced - AUX 1 (stereo sum.)
Input 4: mic electronically balanced - AUX 2 (stereo sum.)
Sensitivity Input 1, Mic 1: 1.5 Mv, 250 Ohm
Input 2, Tel: 100 Mv, 600 Ohm, transformer balanced
Input 3, Mic 3: 1.5 Mv, 250 Ohm; AUX 1: 100 Mv, 47 kOhm
Input 4, Mic 4: 1.5 Mv, 250 Ohm; AUX 2: 100 Mv, 47 kOhm
Input Attenuator AUX 1 and AUX 2
Phantom Power All microphone inputs by internal jumper (18 V)
Hum & Noise Mic -70 dB, Aux -75 dB 600 Ohm transformer balanced
Paging EQ Link: preamp out, power amp in with EQ Link switch
Line outputs: line out 600 Ohm, 1.5 V loaded
Inputs/outputs: MIX BUSS
Music on hold output: 600 Ohm, 1 V transformer balanced
Zone 2 output: 2 W max, 8 Ohm with control
Main output impedance: 8 Ohm, 25 V and 70 V line
Front Panel Controls Input 1 volume, input 2 volume, input 3 volume, input 4 volume, bass, treble
Rear Panel Controls AUX 1 attenuator, AUX 2 attenuator, VOX sensitivity, MOH/Zone 1 level control, Zone 2 level control, VOX sensitivity, mute delay (adjustable from 3 - 60 sec), tone bypass on/off switch
Tone Controls Bass and treble ± 10 dB at 100 Hz and 10 kHz
Volume Control Remote volume control: Input 3 - AUX 1 input volume
Source Selection MOH source select: AUX 1 and AUX 2
Zone 2 source select: AUX 1 and AUX 2
Busses VOX BUSS, Mute BUSS: available on all inputs by internal jumper
Muting Direct muting: external contact closure
Unmuting: mutes/unmutes mic 1 only
Power Output 24 VDC, 250 mA regulated
Rack Mountable Optional 19" rack mount kit
Cooling Thermally controlled
Protection Power surge, overload, thermal
Power Requirement 117 VAC, 50-60 Hz
Power Consumption 670 VA
Built-in AC Outlets 117 V, 500 W max unswitched
Termination Screw terminals, RCA jacks
Power Indicators Output power indicator: multi-color LED signal and clip
Dimensions (W x D x H) 10.8 x 11.0 x 4.0" (27.4 x 28.0 x 10.2 cm) with feet
10.8 x 11.0 x 3.5" (27.4 x 28.0 x 8.9 cm) without feet
Weight 12.5 lbs (5.7 kg)
Packaging Info
Package Weight 14.2 lb
Box Dimensions (LxWxH) 15.3 x 14.0 x 6.9"
