User manual AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1

Operating instructions and pdf manual for use - AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1 User manual, User manual AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1, AJA, Corvid, 44, Low-Profile, 8-Lane, PCIe, Expres

User manual for AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1

AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1
  • Manufacturer: AJA
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your AJA
  • Settings and expert assistance
  • Contact AJA service
  • Troubleshooting
  • Warranty information

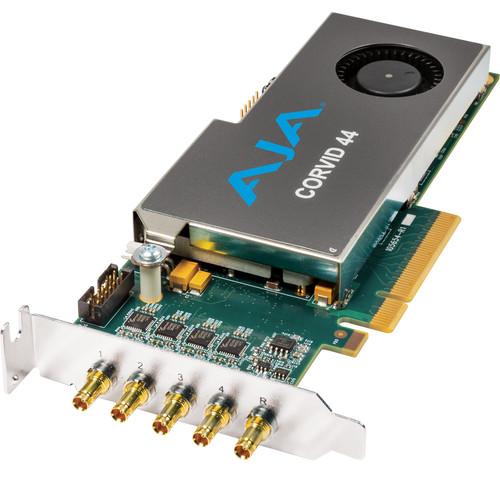

AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1 AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1
Click to enlarge image
We recommend checking out our discussion threads on the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1, which address similar problems with connecting and setting up Computer Hardware AJA.


User manual for the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1

The user manual for the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1 provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

The Corvid 44 Low-Profile 8-Lane PCIe Express Gen 2.0 Card (No Cable) from AJA Video Systems allows AJA Developer Partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it suitable for a wide variety of medium-density applications. Each BNC connection on Corvid 44 can be set programmatically as either an input or output, and each can support a different video format, provided all format use the same clock timing. Connections can also be linked together to support Dual-Link or 4K/UHD formats. The card supports DCI and UHD 4K High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p, and 60p ensure smooth motion for the most demanding 4K and UHD applications.
If you own a AJA computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1:
Specifications
Video Input/Output 4 x 3G-SDI BNC; bi-directional
Audio Inputs/Outputs 16-channel 24-bit SDI embedded, 48 kHz synchronous
Video Formats DCI 4K: 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, & 60 fps
UHD 4K: 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, & 60 fps

2048x1080p: 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, & 60 fps
2048x1080PsF: 23.98, 24, 25, 29.97, 30, 48, 50, 59.94, & 60 fps

1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, & 60 fps
1080PsF: 23.98, 24, 25, 29.97, & 30 fps
720p: 50, 50.94, 60, 1080i 25, 29.97, & 30 fps

625i: 25 fps
525i: 29.97 fps

Reference Analog Color Black or HD Tri-Level sync
Processing 4 x Frame Stores (In or Out)
4 x Color Space Converters
2 x Mixer/Keyer widgets
4 x 1D LUTs
4 x Dual-Link In
4 x Dual-Link Out
4 x 16-channel embedded audio engines
Dimensions (L x W x H) 6.6 x 0.72 x 2.53" (167.65 x 18.47 x 64.4 mm)
The user manual for the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1 can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AJA users keep a unique electronic library for AJA computer hardwares, where you can use our link to download the user manual for the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1.

The user manual lists all of the functions of the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AJA service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AJA Corvid 44 Low-Profile 8-Lane PCIe Express CORVID 44-S-NC1. User manuals are also available on the AJA website under Professional Video - Post Production - Computer Hardware.
