User manual for the AJA FiDO-2T-CWDM Dual Channel SDI to LC Fiber FIDO-2T-CWDM
The user manual for the AJA FiDO-2T-CWDM Dual Channel SDI to LC Fiber FIDO-2T-CWDM provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

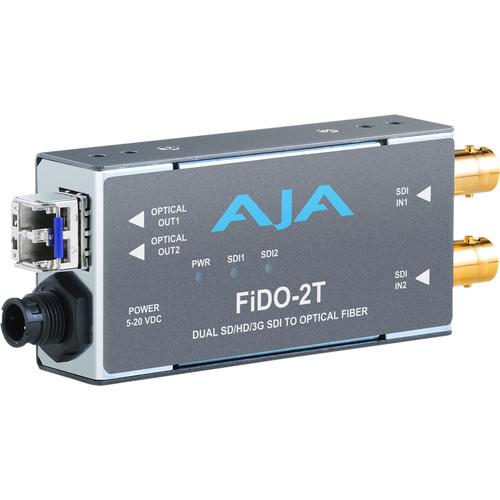

The FiDO-2T-CWDM Converter from AJA is a dual-channel SDI to LC fiber converter. It meets all relevant SMPTE specifications and is rugged, versatile, and suitable for indoor or outdoor use. This dual-channel model allows conversion of 2 channels. It is suitable for 3D, dual-link SDI, or 2 completely independent SDI channels (for example, SD, HD, and 3G can be mixed in any combination). FiDO-2T-CWDM offers electrical isolation, useful for eliminating ground loop problems. It comes in a compact, low-profile enclosure for use in tight spaces around and behind equipment racks, trucks, and crowded facilities.
If you own a AJA analog & digital converters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AJA FiDO-2T-CWDM Dual Channel SDI to LC Fiber FIDO-2T-CWDM in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AJA FiDO-2T-CWDM Dual Channel SDI to LC Fiber FIDO-2T-CWDM:
Formats
3 Gb, 1.5 Gb, 270 Mb, auto select
Connectors
2 x BNC, 2 x single mode optical fiber, LC connectors
Cable Equalization
270 Mb, 1312' (400 m) 1.5 Gb, 656' (200 m) 3 Gb, 1131' (40 m)
Please specify which CWDM wavelength you would like to have factory-installed.
Power
Input: 100 to 240 V, 50/60 Hz universal input Operating Power: 5 to 20 VDC regulated, 3 W maximum
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-40 to 140°F (-40 to 60°C)
Operating Relative Humidity
10 to 90% non-condensing
Operating Altitude
<8,000' (<2,500 m)
Dimensions
4.6 x 1.7 x.0.9" (11.7 x 4.4 x 2.2 cm)
The user manual for the AJA FiDO-2T-CWDM Dual Channel SDI to LC Fiber FIDO-2T-CWDM can be downloaded in .pdf
format if it did not come with your new analog & digital converters, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other AJA users keep a unique electronic library
for AJA analog & digital converterss,
where you can use our link to download the user manual for the AJA FiDO-2T-CWDM Dual Channel SDI to LC Fiber FIDO-2T-CWDM.
The user manual lists all of the functions of the AJA FiDO-2T-CWDM Dual Channel SDI to LC Fiber FIDO-2T-CWDM,
all the basic and advanced features and tells you how to use the analog & digital converters.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from AJA service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the AJA FiDO-2T-CWDM Dual Channel SDI to LC Fiber FIDO-2T-CWDM. User manuals are also
available on the AJA website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
