User manual for the AJA HD10C2 HD/SD-SDI to Analog 10-Bit HD Converter HD10C2
The user manual for the AJA HD10C2 HD/SD-SDI to Analog 10-Bit HD Converter HD10C2 provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

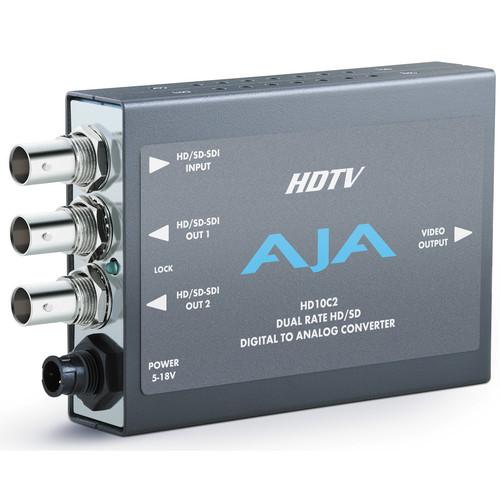

The AJA HD10C2 HD/SD-SDI to Analog 10-Bit HD Converter converts an SDI input to Component, Composite or Y/C via a 3-BNC breakout cable or to VGA via a VGA adapter. The cable and adapter are included. They connect into the converter's output port, a D-sub port.
Via an 8-switch dipswitch, accessible through a cut-out on the bottom of the converter, you get to choose what kind of output you want the BNCs to serve as. If your input is HD-SDI, then you can choose to output full bandwidth HD by Component or VGA, in up to 1080i/60. VGA normally doesn't support HD, but the converter features HD VGA Mode, which supports RGBHV video. If you're inputting SD-SDI, you can select to output by Component or Composite. The SDI input supports both HD and SD and automatically recognizes which of the two is connected. Linked to the SDI input are two SDI loop-outputs with cable equalization.
The dipswitch also controls video sync and graticule.
|
If you own a AJA analog & digital converters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AJA HD10C2 HD/SD-SDI to Analog 10-Bit HD Converter HD10C2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the AJA HD10C2 HD/SD-SDI to Analog 10-Bit HD Converter HD10C2:
| Formats | 1080i @ 50/59.94/60 Hz
1080p sf @ 23.98/24/25/29.97/30 Hz (displayed as interlaced)
1035i @ 59.94/60 Hz
720p @ 59.94/60 Hz
525i @ 59.94 Hz
625i @ 50 Hz | | Input | 1x HD/SD-SDI, SMPTE-259/292/296, 10-bit
Automatic input selection
328 ft (100 m) HD equalization
984 ft (300 m) SD equalization | | Outputs | The output port is a 13W3 D-sub wideband analog port. A breakout cable is included to connect into it.
1x Component HD/SD YPbPr RGB, Composite, or Y/C on 3 BNCs via included breakout cable, selectable between by dipswitch
1x VGA via adapter that connects into the output port
2x HD/SD-SDI loop-outputs, equalizing | | Sync | HD: bi-level, tri-level, H/V drive
SD: normal SD sync | | 2T K Factor | < 1% (Y) | | Frequency Response | HD: Y +0, -.5 db to 30 MHz, C +/- .25 db to 13 MHz
SD: Y +/- .25 db to 5.5 MHz, C +/- .25 db to 2.5 MHz | | Y/C Delay | < 2 ns | | Power | +5 to +18 V DC regulated, 4 W | | Dimensions | 5.8 x 3.1 x 1" (14.7 x 7.9 x 2.5 cm) | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.5 x 3.0" | |
