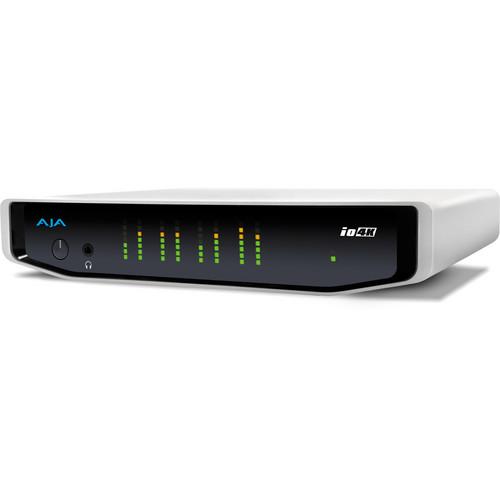

AJA  Io 4K I/O for Thunderbolt 2 IO 4K
  • Manufacturer: AJA
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your AJA
  • Settings and expert assistance
  • Contact AJA service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the AJA Io 4K I/O for Thunderbolt 2 IO 4K, which address similar problems with connecting and setting up Computer Hardware AJA.



User manual for the AJA Io 4K I/O for Thunderbolt 2 IO 4K

The user manual for the AJA Io 4K I/O for Thunderbolt 2 IO 4K provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

The AJA Io 4K I/O for Thunderbolt 2 is a portable capture and output device that offers professional video and audio connectivity with support for 4K and UltraHD workflows. It handles a wide range of formats from SD to full 4K over both SDI and HDMI. Built around Thunderbolt 2 technology, the Io 4K allows even greater bandwidth between host computer systems and Thunderbolt devices. The dual Thunderbolt 2 ports allow you to daisy chain additional peripherals such as high resolution displays and high-capacity storage.

Featuring four 3G-SDI inputs and outputs, as well an HDMI 1.4 input and output, the Io 4K is capable of capturing and outputting 4K signals over quad link SDI or HDMI. It is also capable of handling UltraHD, 2K, HD, and SD resolutions. When working with 4K content, the Io 4K outputs an HD-SDI down-converted signal on a dedicated BNC connector. This HD signal can be used to output to HD recorders or monitors. Embedded 16-channel SDI and 8-channel HDMI audio are supported, as well as analog audio outputs via a standard DB-25 connection. Stereo monitoring is possible via two RCA outputs and a front panel headphone jack. A 4-pin XLR power input is available for powering the Io 4K with batteries or the included AC adapter.
If you own a AJA computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AJA Io 4K I/O for Thunderbolt 2 IO 4K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AJA  Io 4K I/O for Thunderbolt 2 IO 4KDownload user manual for AJA Io 4K I/O for Thunderbolt 2 IO 4K
(PDF file, 2.63 MB)
Additional parameters of the AJA Io 4K I/O for Thunderbolt 2 IO 4K:
Specifications
    Video Formats 4K:
    4096 x 2160p 23.98, 24, 25, 29.97, 30
    4096 x 2160PsF 23.98, 24, 25
    3840 x 2160p 23.98, 24, 25, 29.97, 30
    3840 x 2160PsF 23.98, 24, 25

    2K:
    2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    2048 x 1080PsF 23.98, 24, 25, 29.97, 30

    HD:
    1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080PsF 23.98, 24, 25, 29.97, 30
    1080i 50, 59.94, 60
    720p 50, 59.94, 60

    SD:
    525i 29.97
    625i 25
    Video Inputs 4 x BNC, SD/HD/3G-SDI, SMPTE-259/292/296/424, 8 -or 10-bits
    • Single Link 4:2:2 or 4:4:4 (1 x BNC)
    • Dual Link HD 4:4:4 (2 x BNC)
    • 2K HSDL (High Speed Data Link) 4:4:4 (2 x BNC)
    • 4K/QuadHD 4:4:4 (4 x BNC)

    1 x HDMI 1.4
    • 30/36 bits/pixel, RGB or YUV, 2.25 Gbps
    • SD, HD, 1080p 50/60, 4K, 2K and stereoscopic HD support
    Video Output 4 x BNC, SD/HD/3G-SDI, SMPTE-259/292/296/424, 8 -or 10-bits
    • Single Link 4:2:2 or 4:4:4 (1 x BNC)
    • Dual Link HD 4:4:4 (2 x BNC)
    • 2K HSDL (High Speed Data Link) 4:4:4 (2 x BNC)
    • 4K/QuadHD 4:4:4 (4 x BNC)

    1 x HDMI 1.4
    • 30/36 bits/pixel, RGB or YUV, 2.25 Gbps
    • SD, HD, 1080p 50/60, 4K, 2K and stereoscopic HD support
    Audio Input 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
    8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
    Audio Output Digital:
    16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
    8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

    Analog:
    8-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 8 x XLR on DB-25 breakout cable)
    +24 dbu Full Scale Digital (0 dbFS) ±0.2 db 20 to 20 kHz Frequency Response
    Reference Input & Output Sync 1 x BNC LTC output
    1 x BNC assignable to reference video or LTC input

    Reference: Analog Color Black (1V) or Composite Sync (2 or 4V)
    Non-terminating
    Machine Control 1 x RS-422, Sony 9-pin protocol
    Interface 2 x Thunderbolt 2
    Power 1 x 4-pin XLR
    10 to 20 VDC, 30 to 60 W

    Please note: Nominal power is 30W. However, multiple connected Thunderbolt devices may place additional power demands, which could increase the power draw to 60W.
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 5.25 lb
    Box Dimensions (LxWxH) 9.8 x 9.5 x 4.0"
    The user manual for the AJA Io 4K I/O for Thunderbolt 2 IO 4K can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AJA users keep a unique electronic library for AJA computer hardwares, where you can use our link to download the user manual for the AJA Io 4K I/O for Thunderbolt 2 IO 4K.

    The user manual lists all of the functions of the AJA Io 4K I/O for Thunderbolt 2 IO 4K, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AJA service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AJA Io 4K I/O for Thunderbolt 2 IO 4K. User manuals are also available on the AJA website under Professional Video - Post Production - Computer Hardware.
