User manual for AJA Ki Pro Rack KI PRO RACK
Overall Rating: 4.0
80% of respondents would recommend this to a friend.
Manufacturer: AJA
Basic description and contents of package
Product classification: Professional Video - Recorders & Duplication - Solid State/HDD Recorders
Safety instructions
Startup and operation of the solid state/hdd recorders
Tips for setting up your AJA
Settings and expert assistance
Contact AJA service
Troubleshooting
Warranty information
We recommend checking out our discussion threads on the AJA Ki Pro Rack KI PRO RACK,
which address similar problems with connecting and setting up Solid State/HDD Recorders AJA.
User manual for the AJA Ki Pro Rack KI PRO RACK
The user manual for the AJA Ki Pro Rack KI PRO RACK provides
necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

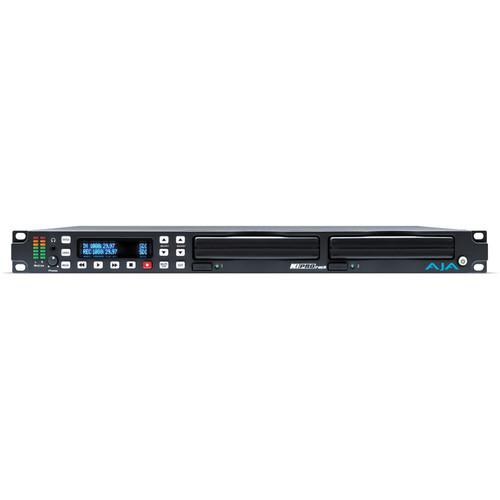

The AJA Ki Pro Rack is a tapeless, file-based video recorder that captures and records in ready-to-edit ProRes and DNxHD codecs, in 10-bit 4:2:2 full-raster files, and onto HDD or SSD storage modules (sold separately). 10-bit 4:2:2 color depth provides superior dynamic range, original picture representation, and flexibility in adjusting color and balance in post. Two slots are available for the storage modules.
Ki Pro features RS-422 control for integrating with editing systems, external controllers, and with tape decks (to capture tape-based media as ProRes). Also by RS-422, assemble edits can be sent direct to storage modules, often faster than rendering to ProRes or DNxHD.
The panel controls are for the most part identical to those of tape decks. The display screen and operating system work hand-in-hand to facilitate full configuration without any connection to a separate computer: all information is displayed clearly on the screen and the OS control menu is a fast and flat one.
The set of connections is diverse and includes video and audio ports that are the same kind as those of tape decks. Accordingly, the Ki Pro is compatible with the cabling and routing systems used with tape decks. Also available is an Ethernet port by which files can be transferred (minimizing the need for staff involvement and allowing better employment of staff).
Up/down/cross conversion can be performed right inside the hardware, both during recording or playback. A second device won't be needed for conversions.
As for remote control, the Ki Pro can be fully configured and controlled via a web browser per an IP address assignment. Multiple Ki Pro Racks can be networked together for control over a single interface.
If you own a AJA solid state/hdd recorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AJA Ki Pro Rack KI PRO RACK in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
10-bit hardware up-conversion: Anamorphic: full-screen Pillar box 4:3 -- results in a 4:3 image in center of screen with black sidebars Zoom 14:9 -- results in a 4:3 image zoomed slightly to fill a 14:9 image with black sidebars Zoom letterbox: image zoomed to fill screen Zoom wide: combination of zoom and horizontal stretch to fill 16:9 screen; this setting can introduce a small aspect ratio change
10-bit hardware down-conversion: Anamorphic: full-screen Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved Crop: image is cropped to fit new screen size
10-bit hardware cross-conversion: 1080i to 720p 720p to 1080i
Storage Module Drive Bays
2 (each with eject button and select LED)
Power
Voltage: 100-240 VAC Typical operating power: 40W
Temperature
Operating temperature: 41 to 104°F (5 to 40°C) Safe storage temperature (with power off): -4 to 140°F (-20 to 60°C)
Rack Height
1RU
Dimensions
1.75 x 19 x 12.5" (4.45 x 48.26 x 31.75 cm)
(12.5" depth spans from the front panel to the back of the deepest connector)
The user manual for the AJA Ki Pro Rack KI PRO RACK can be downloaded in .pdf
format if it did not come with your new solid state/hdd recorders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other AJA users keep a unique electronic library
for AJA solid state/hdd recorderss,
where you can use our link to download the user manual for the AJA Ki Pro Rack KI PRO RACK.
The user manual lists all of the functions of the AJA Ki Pro Rack KI PRO RACK,
all the basic and advanced features and tells you how to use the solid state/hdd recorders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from AJA service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the AJA Ki Pro Rack KI PRO RACK. User manuals are also
available on the AJA website under Professional Video - Recorders & Duplication - Solid State/HDD Recorders.
