User manual for the AJA T-TAP T-TAP

The user manual for the AJA T-TAP T-TAP provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

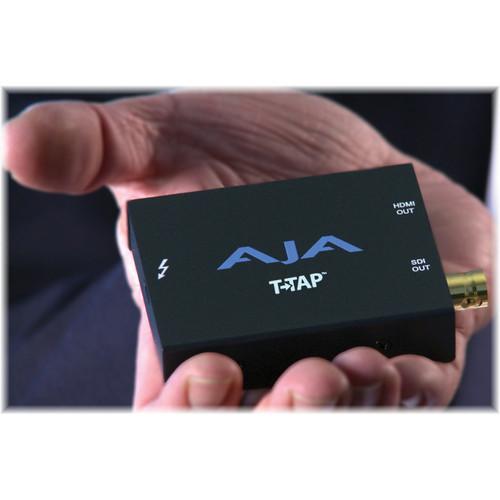

The AJA T-TAP captures 10-bit SD/HD/2K video and embedded audio from a Thunderbolt-enabled computer and outputs it in the same broadcast-quality to professional and consumer monitors and recording gear by SDI and HDMI.

Both outputs can be used simultaneously at all times. The HDMI out can be connected directly into 3D HDMI monitors for 3D stereoscopic monitoring. Both outputs also support full 24-bit 8-channel embedded audio, allowing for multi-channel playback such as 5.1 / 7.1 mixes.

T-TAP gets its power from the Thunderbolt connection to a computer and thus doesn't require any additional power at all, further supporting the portability of this device that conveniently fits into your hand.
If you own a AJA analog & digital converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AJA T-TAP T-TAP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AJA  T-TAP T-TAPDownload user manual for AJA T-TAP T-TAP
(PDF file, 1.38 MB)
Additional parameters of the AJA T-TAP T-TAP:
Specifications
    Input Thunderbolt x1
    Output SDI x1
    HDMI 1.3 x1 (compressed 3D support)
    Supported Video Formats 8-bit 4:2:2 and 10-bit 4:2:2 in the following formats:
    525i 29.97
    625i 25
    720P 50,59.94,60
    1080i 25, 29.97, 30
    1080PsF 23.98, 24, 25, 29.97
    1080p 23.98, 24, 25, 29.97
    2K 1080p 23.98, 24, 25
    2K 1080PsF 24, 25
    Audio Support 24-bit SDI embedded audio, 8-channel, 48kHz
    24-bit HDMI embedded audio, 8-channel, 48kHz
    Dimensions 2.28 x 2.95 x 1.18" (5.8 x 7.5 x 3 cm)
    Packaging Info
    Package Weight 0.2 lb
    Box Dimensions (LxWxH) 5.4 x 4.1 x 0.8"
    The user manual for the AJA T-TAP T-TAP can be downloaded in .pdf format if it did not come with your new analog & digital converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AJA users keep a unique electronic library for AJA analog & digital converterss, where you can use our link to download the user manual for the AJA T-TAP T-TAP.

    The user manual lists all of the functions of the AJA T-TAP T-TAP, all the basic and advanced features and tells you how to use the analog & digital converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AJA service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AJA T-TAP T-TAP. User manuals are also available on the AJA website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
