User manual for the AKG C414 XLII Reference Multi-Pattern Condenser 3059Z00060
The user manual for the AKG C414 XLII Reference Multi-Pattern Condenser 3059Z00060 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.
The C414 XLII Reference Multi-Pattern Condenser Microphone features a large diaphragm and is designed for use with solo, vocal, and instrumental applications. It offers five selectable polar patterns, providing a suitable solution for a wide range of recording situations. There is a high SPL capability, wide dynamic range, and low self-noise to produce clean, lifelike audio with a minimum of overloads or distortion.

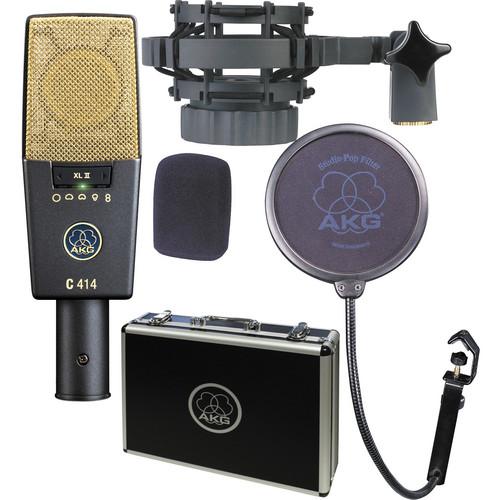

The C414 XLII features a metal body and transformerless design, allowing it to resist electrostatic and electromagnetic interference for trouble-free operation. The microphone's capsule is internally mounted on an elastic suspension to minimize vibration and noise handling. A set of 3 switchable bass cut filters and 3 pre-attenuation pads reduce low frequency pickup and increase headroom while recording loud sound sources. Bi-color LEDs conveniently indicate the selected polar pattern and output overload. The package includes a universal shock mount, a pop filter, and a metal carrying case.
|
If you own a AKG large diaphragm condenser and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AKG C414 XLII Reference Multi-Pattern Condenser 3059Z00060 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the AKG C414 XLII Reference Multi-Pattern Condenser 3059Z00060:
| Polar Pattern | Cardioid, Figure 8, Hypercardioid, Omnidirectional, Wide-Angle Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 88 dB A-Weighted | | Equivalent Noise Level | 6 dB A-Weighted | | Impedance | 200 ohms | | Load Impedance | 2200 ohms | | Sensitivity | 23 mV/PA | | Low-Cut Filter | Yes, @ 160 Hz
Yes, @ 80 Hz
Yes, @ 40 Hz | | Pad | Yes, 6 dB
Yes, 12 dB
Yes, 18 dB | | Output Connectors | 3-Pin XLR | | Operating Current Consumption | 4.5 µA | | Operating Voltage | 44 V - 52 V | | Length | 6.30" (160 mm) | | Diameter | 1.97" (50 mm) | | Weight | 10.58 oz (300 g) | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 11.3 x 8.9 x 4.7" | |
The user manual for the AKG C414 XLII Reference Multi-Pattern Condenser 3059Z00060 can be downloaded in .pdf
format if it did not come with your new large diaphragm condenser, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other AKG users keep a unique electronic library
for AKG large diaphragm condensers,
where you can use our link to download the user manual for the AKG C414 XLII Reference Multi-Pattern Condenser 3059Z00060.
The user manual lists all of the functions of the AKG C414 XLII Reference Multi-Pattern Condenser 3059Z00060,
all the basic and advanced features and tells you how to use the large diaphragm condenser.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from AKG service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the AKG C414 XLII Reference Multi-Pattern Condenser 3059Z00060. User manuals are also
available on the AKG website under Pro Audio - Recording - Large Diaphragm Condenser.
