User manual AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230

Operating instructions and pdf manual for use - AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230 User manual, User manual AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230, AKG, C414, XLS, ST, Reference, Multi-Pattern, Conden


User manual for AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230
  • Manufacturer: AKG
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Large Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the large diaphragm condenser
  • Tips for setting up your AKG
  • Settings and expert assistance
  • Contact AKG service
  • Troubleshooting
  • Warranty information
AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230 AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230
Click to enlarge image

We recommend checking out our discussion threads on the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230, which address similar problems with connecting and setting up Large Diaphragm Condenser AKG.



User manual for the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230

The user manual for the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230 provides necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.

The matched pair of C414 XLS ST Reference Multi-Pattern Condenser Microphones from AKG are designed for detailed pickup of acoustic instruments. They offer five selectable polar patterns, providing a suitable solution for a wide range of recording situations. There is a high SPL capability, wide dynamic range, and low self-noise to produce clean, lifelike audio with a minimum of overloads or distortion.

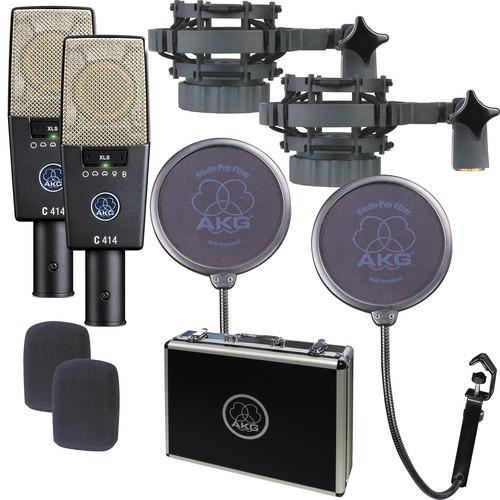

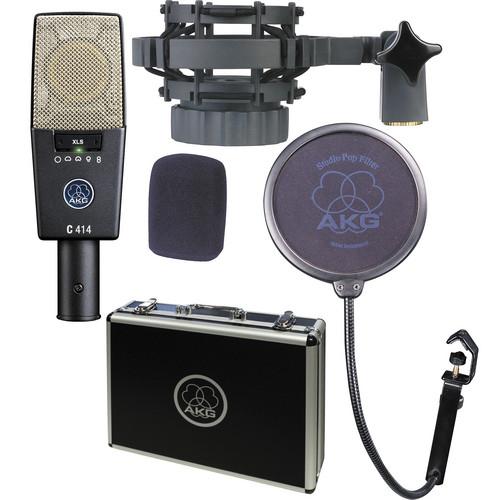

The C414 XLS ST features a metal body and transformerless design, allowing it to resist electrostatic and electromagnetic interference for trouble-free operation. The microphone's capsule is internally mounted on an elastic suspension to minimize vibration and noise handling. A set of 3 switchable bass cut filters and 3 pre-attenuation pads reduce low frequency pickup and increase headroom while recording loud sound sources. Bi-color LEDs conveniently indicate the selected polar pattern and output overload. The package includes two C414 microphones, two elastic spider suspensions, two stand adapters, two windscreens, one stereo mounting bar, and one aluminum carrying case.
If you own a AKG large diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230Download user manual for AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230
(PDF file, 0.93 MB)
Additional parameters of the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230:

Go To

Polar Pattern Cardioid, Figure 8, Hypercardioid, Omnidirectional, Wide-Angle Cardioid
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 88 dB A-Weighted
Equivalent Noise Level 6 dB A-Weighted
Impedance 200 ohms
Load Impedance 2200 ohms
Sensitivity 23 mV/PA
Low-Cut Filter Yes,  @ 160 Hz
Yes,  @ 80 Hz
Yes,  @ 40 Hz
Pad Yes, 6 dB
Yes, 12 dB
Yes, 18 dB
Output Connectors 3-Pin XLR
Operating Current Consumption 4.5 µA
Operating Voltage 44 V - 52 V
General
Length 6.30" (160 mm)
Diameter 1.97" (50 mm)
Weight 10.58 oz (300 g)
Packaging Info
Package Weight 5.8 lb
Box Dimensions (LxWxH) 15.6 x 12.2 x 3.9"
The user manual for the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230 can be downloaded in .pdf format if it did not come with your new large diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AKG users keep a unique electronic library for AKG large diaphragm condensers, where you can use our link to download the user manual for the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230.

The user manual lists all of the functions of the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230, all the basic and advanced features and tells you how to use the large diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AKG service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AKG C414 XLS ST Reference Multi-Pattern Condenser 3059Z00230. User manuals are also available on the AKG website under Pro Audio - Recording - Large Diaphragm Condenser.
