User manual for the AKG Perception Wireless Presenter Set - Frequency A / 3249H00010
The user manual for the AKG Perception Wireless Presenter Set - Frequency A / 3249H00010 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

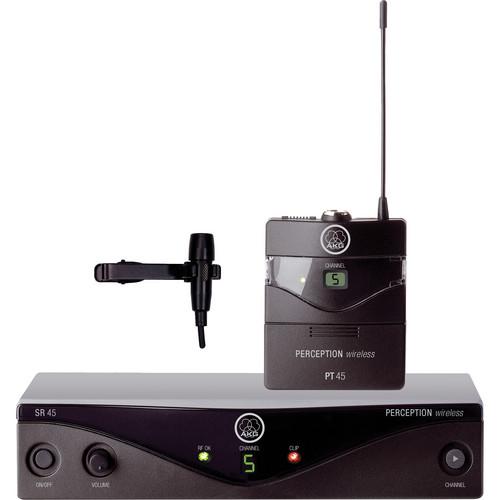

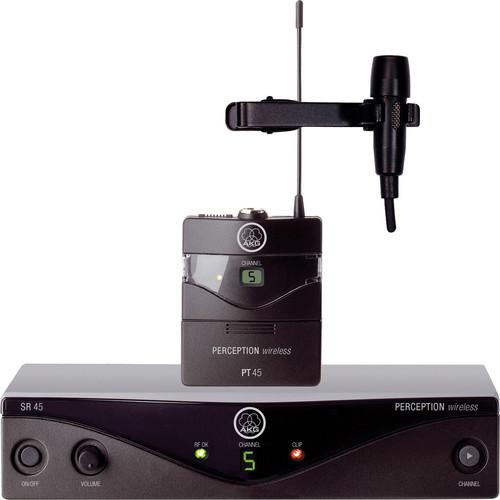

The AKG Perception Wireless Presenter Set - Frequency A / 530 - 560MHz is intended to provide lightweight, quality wireless lavalier miking for theater performances, presentations, talk shows and other applications at an affordable price. The system includes the SR 45 wireless receiver, PT 45 bodypack transmitter and the CK 99 L lavalier microphone.
|
If you own a AKG wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AKG Perception Wireless Presenter Set - Frequency A / 3249H00010 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the AKG Perception Wireless Presenter Set - Frequency A / 3249H00010:
| Receiver Type | SR45 Receiver | | Carrier Frequency | A / 530 - 560MHz | | Modulation | FM | | Audio Bandwidth | 40 Hz to 20 kHz | | THD & Noise | typ. 0.8% | | Signal-to-Noise Ratio | typ. 105 dB(A) | | Squelch | -100 to -70 dBm Adjustable | | Connections | Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV rms | | Dimensions | 7.87 x 7.48 x 1.73" (200 x 190 x 44 mm) | | Weight | 0.80 lb (360 g) | | Transmitter Type | PT45 Bodypack | | Carrier Frequency | A / 530 - 560MHz | | Modulation | FM | | Audio Bandwidth | 40 Hz to 20 kHz | | THD & Noise | typ. 0.8% | | Signal-to-Noise Ratio | typ. 105 dB(A) | | RF Output | 10 mW | | Power | 1x 1.5V AA Battery
Up to 10 Hours | | Dimensions | 2.36 x 2.91 x 1.18" (60 x 74 x 30 mm) | | Weight | 0.13 lb (60 g) | | Microphone Type | CK 99 L Lavalier Microphone | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 15 to 18,000 Hz | | Signal to Noise Ratio | Equivalent noise level: 34dB-A | | Maximum Input Sound Level | 118dB (k=1 %) | | Power Requirements | 1.5 to 10VDC or 9 to 52V phantom power to IEC 61938 using MPA V L | | Output Impedance | 200 ohms
Recommended load impedance >2000 ohms | | Output Connectors | Mini XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Cable Length: 5' 4" (1.6m) | | Weight | 0.08 oz (2.5 g) | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 16.9 x 13.2 x 3.1" | |
The user manual for the AKG Perception Wireless Presenter Set - Frequency A / 3249H00010 can be downloaded in .pdf
format if it did not come with your new wireless systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other AKG users keep a unique electronic library
for AKG wireless systemss,
where you can use our link to download the user manual for the AKG Perception Wireless Presenter Set - Frequency A / 3249H00010.
The user manual lists all of the functions of the AKG Perception Wireless Presenter Set - Frequency A / 3249H00010,
all the basic and advanced features and tells you how to use the wireless systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from AKG service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the AKG Perception Wireless Presenter Set - Frequency A / 3249H00010. User manuals are also
available on the AKG website under Pro Audio - Live Sound - Wireless Systems.
