User manual AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010
Operating instructions and pdf manual for use - AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010 User manual, User manual AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010, AKG, SR, 4500, Rack, Mount, True, Diversity, UHF,
User manual for AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010
Manufacturer: AKG
Basic description and contents of package
Product classification: Pro Audio - Live Sound - Wireless Receivers
Safety instructions
Startup and operation of the wireless receivers
Tips for setting up your AKG
Settings and expert assistance
Contact AKG service
Troubleshooting
Warranty information
Price: 650 USD

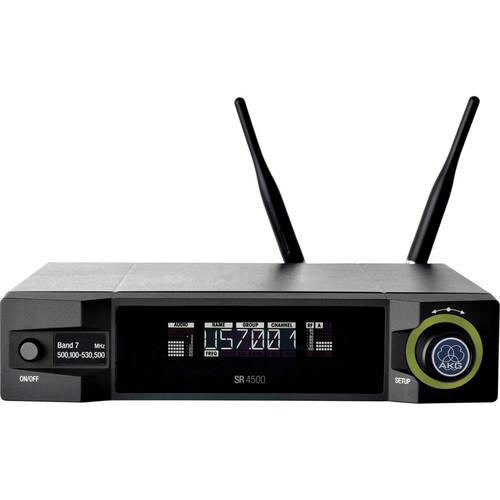

Click to enlarge image
We recommend checking out our discussion threads on the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010,
which address similar problems with connecting and setting up Wireless Receivers AKG.
User manual for the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010
The user manual for the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Receivers.
The SR 4500 from AKG is a compact, all-metal, true diversity, UHF wireless receiver, ideal for use as a part of a WMS 4500 wireless system. The receiver has 8 UHF bands that are each 30 MHz wide, providing up to 1200 selectable frequencies. If several frequency bands are used, the receiver allows up to 70 channels to operate simultaneously.
The receiver has a large backlit color display for ease of operation and monitoring. Auto setup, rehearsal, and environmental scan functions make it easy to get up and running on a clear frequency, while tone code squelch and battery status monitoring features let you keep tabs on connected transmitters. An output connector is provided that allows control of external devices. An integrated data interface lets you monitor and control the receiver on a PC HiQnet system via System Architect software.
If you own a AKG wireless receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010:
Specifications
Modulation
FM
Carrier Frequency
Band 1 / 650 - 680 MHz
Modulation
FM
Deviation
Rated: 20 kHz at 1 kHz (sine wave)
Squelch Threshold
Adjustable between -70 and -100 dBm
Audio Frequency Response
35 Hz - 20 kHz
Total Harmonic Distortion (THD)
< 0.3% (at 1 kHz)
Signal to Noise Ratio
120 dBA
Connectors
1 x 3-Pin XLR Output (balanced) 1 x 1/4" TS Output (unbalanced)
Current Consumption
400 mA typical
Power Requirement
12 VDC from external power supply
Dimensions (WxHxD)
7.8 x 1.7 x 7.4" (200 x 44 x 190 mm)
Weight
2.2 lb (972 g)
The user manual for the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010 can be downloaded in .pdf
format if it did not come with your new wireless receivers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other AKG users keep a unique electronic library
for AKG wireless receiverss,
where you can use our link to download the user manual for the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010.
The user manual lists all of the functions of the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010,
all the basic and advanced features and tells you how to use the wireless receivers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from AKG service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the AKG SR 4500 Rack Mount True Diversity UHF Wireless 3200H00010. User manuals are also
available on the AKG website under Pro Audio - Live Sound - Wireless Receivers.
